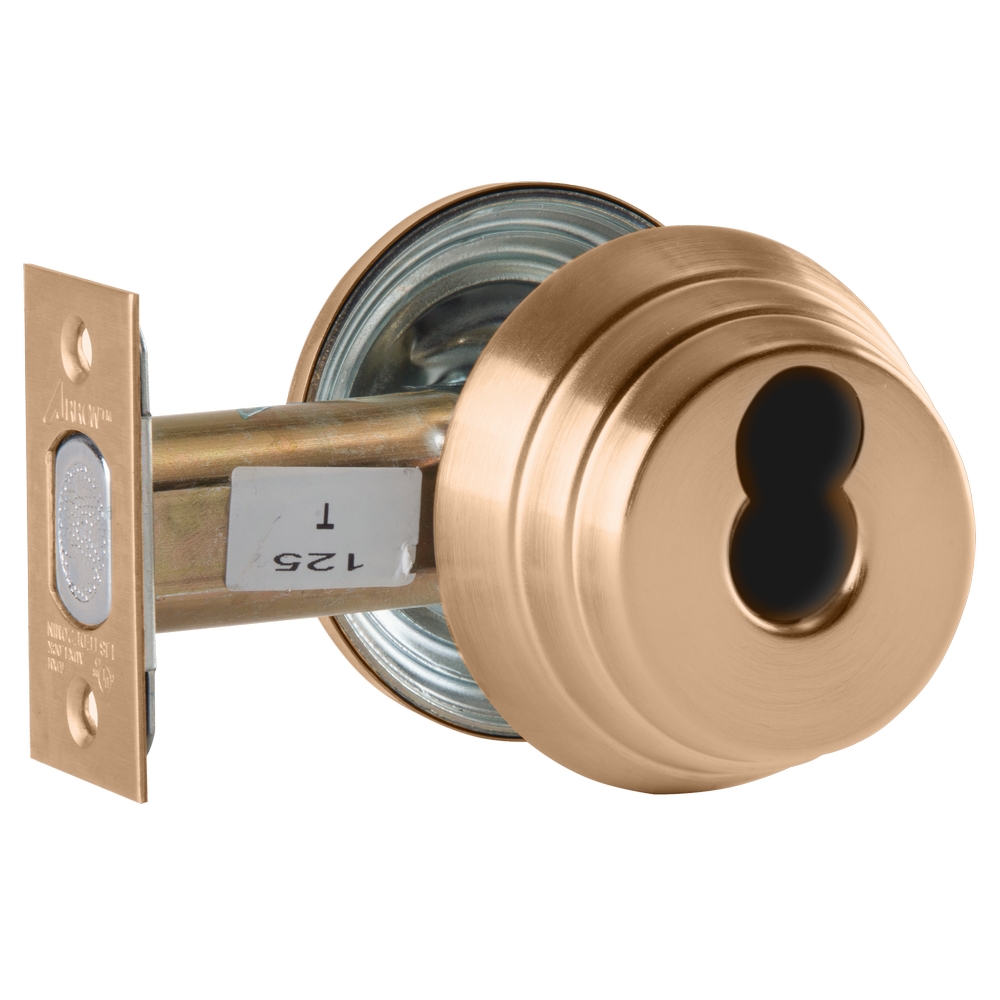

Arrow Lock E64 10 IC Grade 2 Classroom Deadbolt

Arrow E64 10 IC Grade 2 Classroom Deadbolt offers a robust security solution ideal for commercial environments. This Grade 2 deadlock features a satin bronze clear coated finish that not only enhances its aesthetic appeal but also ensures long-lasting durability. Designed for functionality, it comes with a SFIC prep less core, allowing for easy customization and adaptability to various key systems. The deadbolt boasts a solid steel construction with a hardened steel pin insert and a tamper-resistant rotating wrench-proof collar, making it highly resistant to forced entry. Its two-piece housing includes concealed mounting screws, providing added security against tampering. The 1-inch deadbolt throw is complemented by field-reversible handing, accommodating a wide range of door configurations. Installation is straightforward, with compatibility for doors between 1-3/8 inches to 1-3/4 inches thick. The deadbolt includes a standard #395 strike pack suitable for both metal and wood applications. Certified to ANSI A156.5 standards, this deadlock ensures reliability and peace of mind for building professionals and homeowners alike. With its proven track record of performance and security, the Arrow E64 is a trusted choice for classroom and commercial applications.

Grade 2 Classroom Deadbolt

Grade 2 Classroom Deadlock, SFIC Prep Less Core, Satin Bronze Clear Coated Finish, Field Reversible

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Arrow E Series deadlocks are unsurpassed for value, quality and durability.

Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Housing: Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.

Thru-bolting: supplied with two 1/4" (6.35 mm) steel thru-bolts.

Deadbolt: 1" (25.40 mm), solid steel deadbolt throw with hardened steel pin insert.

Backset: 2-3/8" (60.32 mm), 2-3/4" (69.85 mm).

Deadbolt fronts:

• 2-1/4" (57.15 mm) x 1" (25.40 mm) standard for 2-3/8" (60.32 mm) backset,
• 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm) standard for 2-3/4" (69.85 mm) backset. Drive-in deadbolts are available.

Doors: 1-3/8" (34.925 mm) to 1-3/4" (44.45 mm) thick standard.

Strikes: Supplied standard with #395 strike pack (metal and wood).

Handing: All functions are reversible.

Cylinder, Standard: Solid brass, Arrow “A” deyway, drilled for 6 pins, pinned to 5 for stock. E41/42 is available 5 pin, Arrow AR and Schlage C only. Supplied with two keys.  Available in Schlage CS keyway and other competitive keyways.**Product will accept other manufacturers' cylinders but cannot be ordered with the product.

Cylinder Options: Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.

Finish: US3, US4, US5A, US10, US10B, US10BE, US15, US26, US26D, BSP
E41/42 is available in US3, US15 and US26D.

• ANSI A156.5, Auxiliary Locks, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on A label or lesser doors when used in conjunction with a rated primary latching device
