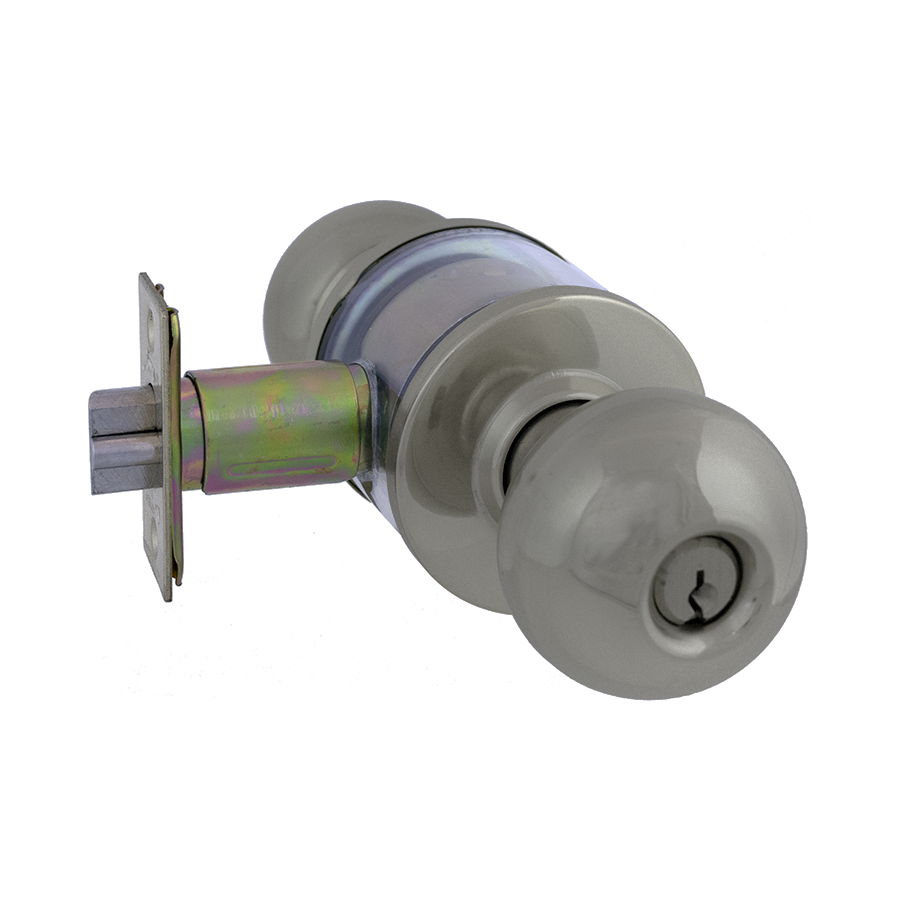

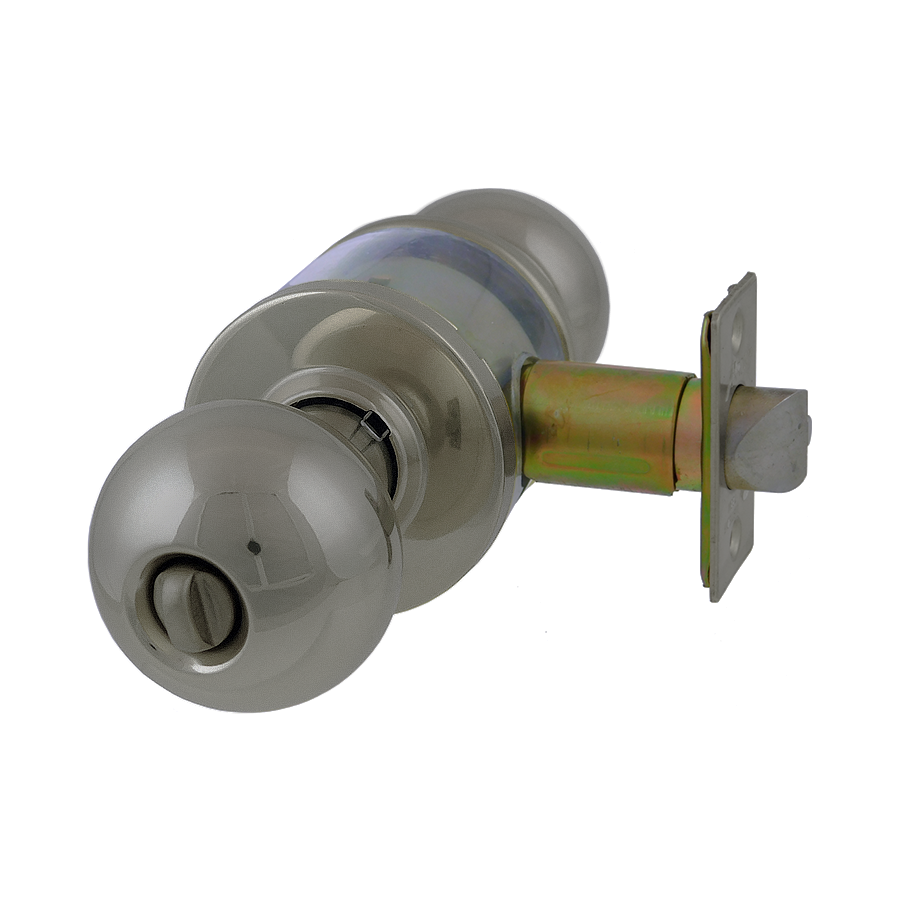

Arrow Lock MK11BD26D-CS-2 3/4 BS Schlage Entry Ball Knob, C Keyway, 2-3/4" Backset, Grade 2, Satin Chrome

Arrow Lock Company MK11BD26D-CS-2 3/4 BS Entry Ball Knob combines durability and style, making it an excellent choice for commercial applications. Designed with a Schlage C keyway, this Grade 2 lockset meets accessibility requirements while offering a sleek satin chrome finish that enhances any entryway. The MK Series is crafted from cold-rolled steel with a zinc dichromate finish, ensuring corrosion resistance. It accommodates a standard 2-1/8" bore and is versatile in backset options, including 2-3/4". This flexibility allows for installation on a variety of door thicknesses, from 1-3/8" to 1-3/4". The brass latch features a 1/2" throw, supported by a robust steel housing. With a reversible handing feature, the MK11BD26D is easy to install in different configurations. The solid brass 6-pin cylinder can be master keyed, providing additional security options. Supplied with two brass keys, it is ready for immediate use. The knob’s elegant design not only ensures function but also complements modern architectural aesthetics. Whether for an office or an entrance, the Arrow Lock Company MK11BD26D-CS-2 delivers reliability and style, making it a smart choice for building professionals and discerning homeowners alike.

Entry Ball Knob, Schlage C Keyway, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

MK Series offers the designer, architect and contractor simple solutions to accessibility requirements. Their clean designs, architectural finishes and available Functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary

Specifications:

• Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
• Backset:
• 2-3/8" (60.32mm) standard
• 2-3/4" (69.85mm)
• 3-3/4" (95.25mm)
• 5" (127mm)
• Door Thickness: 1-3/8" (34.92mm) to 1-3/4" (44.45mm)
• Latch: Brass with 1/2" (12.7mm) throw.
• Latch housing is steel, with zinc dichromate finish for corrosion resistance.
• 7/8" (22.225mm) bore in edge of door is required.
• Latch Front: Brass, bronze or stainless steel.
• Standard faceplate for 2-3/8" (60.32.mm) backset measures 2-1/4" (57.15mm) x 1" (25.40mm) with a flat front
• For 2-3/4" (69.85mm) backset Standard faceplate measures 2-1/4" (57.15mm) x 1-1/8" (28.57mm) with beveled front 1/8" (3.17mm) in 2" (50.8mm)
• Strike: Brass, bronze or stainless steel. Standard "T" strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm).
• Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm).
• All strikes have a 1-1/4" (31.75mm) lip to center dimension.
• Handing: Reversible.
• Cylinder, Standard: Solid brass 6 pin cylinder with Arrow "A" keyway, keyed to 5 pin for stock.
• Can be master keyed, grandmaster keyed and construction master keyed.
• Conventional cylinders are also available in a variety of competitive manufacturer’s keyways.
• Supplied with two 5 pin brass keys for stock.
• Available in Schlage CS keyway and other competitive keyways.

Cylinder Options:

• Conventional–MK Series locksets are supplied standard with Arrow "A" keyway, 6 pin cylinder. As with all other lock series, various levels of master keying are available. Conventional cylinders are available in a variety of competitive manufacturers keyways. Supplied with two brass keys.
• Interchangeable Core – Lockset prepared for use with 6 or 7 pin interchangeable core. Supplied less core, but packed with 6 and 7 pin tailpieces. Will also accept cores manufactured by Best™, Falcon™, Medeco Keymark™ and others. Suffix "IC" to design. Temporary Arrow construction cores are also available.

Functions:

• MK01 F75/161N, 160N Passage
• MK02 F76/161L, 160L Privacy
• MK03 F111 Communicating Passage
• MK04 F77/161P, 160P Patio
• MK05 F78/161M, 160M Communicating
• MK08 Single Dummy Trim
• MK11 F109 (F81 & F82)/161A, 160A Entrance/Office
• MK12 F86/161D, 160D Storeroom
• MK13 F82A/161B, 160B Exterior
• MK14 F92/161E, 160E Service Station
• MK15 F93/161H, 160H Hotel
• MK17 F84/161R, 160R Classroom
• MK18 F113 Communicating Classroom
• MK31 F80/161S, 160SCommunicating
• MK32 F88/161C, 160C Public Entrance
• MK33 F87/161W, 160W Asylum
• MK34 Exterior

Finishes:

• 605/US3/03 - Bright Brass
• 606/US4/04 - Satin Brass
• 609/US5/05A - Antique Brass
• 612/US10/10 - Satin Bronze
• 613/US10B/10B - Dark Oxide Bronze, Oil Rubbed
• 619/US15/15 - Nickel Plated
• 625/US26/26 - Bright Chromium Plated
• 626/US26D/26D - Satin Chromium Plated
