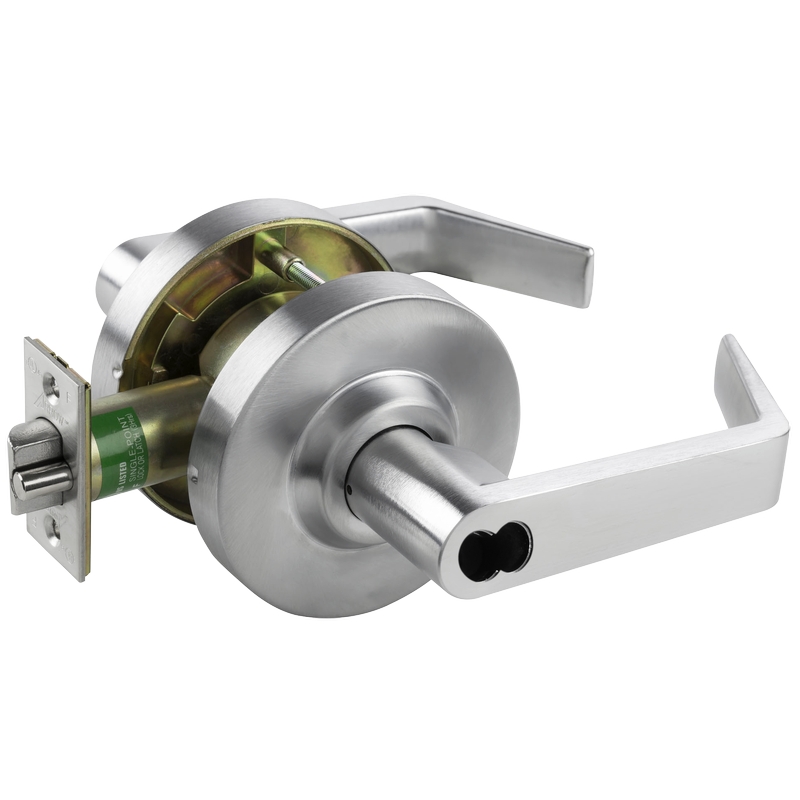

Arrow Lock MLX81-SR-26D-SIC Grade 2 Entry/Office Lock

Arrow MLX81-SR-26D-SIC Grade 2 Entry/Office Lock offers a reliable and robust solution for commercial applications. This Grade 2 cylindrical lock features a convenient entrance function and is designed with a Free Wheeling Lever that enhances its resistance to abuse, ensuring long-lasting durability. The lockset is easy to install using a two-screw method, making upgrades or replacements a straightforward task for building professionals. Compatible with Schlage FSIC less core cylinders, the MLX81-SR-26D-SIC includes a sleek satin chrome finish that complements various architectural styles. It accommodates standard door thicknesses ranging from 1-3/8" to 1-3/4", with a backset of 2-3/4". The stainless steel latch boasts a 1/2" throw and a guarded latchbolt, ensuring added security. With a 3-11/32" rose diameter and pressure cast zinc levers that measure 4-3/4" in length, this lockset combines aesthetic appeal with functionality. Additionally, it comes with a ten-year mechanical warranty, offering peace of mind for users. The Arrow MLX81-SR-26D-SIC is UL listed and complies with ANSI A156.2, Series 4000, making it a trusted choice for any commercial setting.

Grade 2 Entry/Office Lock

Grade 2 Cylindrical Lock, Entrance Function, Schlage FSIC Less Core, Sierra Lever, 3-11/32" Rose Diameter, Removable Thru-Bolts, Accepts Schlage LFIC Cylinder, Satin Chrome Finish, Non-Handed

The MLX Series is a robust Grade 2 lockset featuring a Free Wheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

The MLX Series is the perfect solution for replacing or upgrading lockets in commercial applications.

The MLX Series is a robust Grade 2 lockset featuring a FreeWheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty.

• Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
• Freewheeling Lever
• Warranty – Ten Year Warranty
• Handing – Non-handed
• Packaging – 6 per case
• Strike – 4-7/8" ANSI (123.83mm)
• Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
• Keys – 2 brass keys
