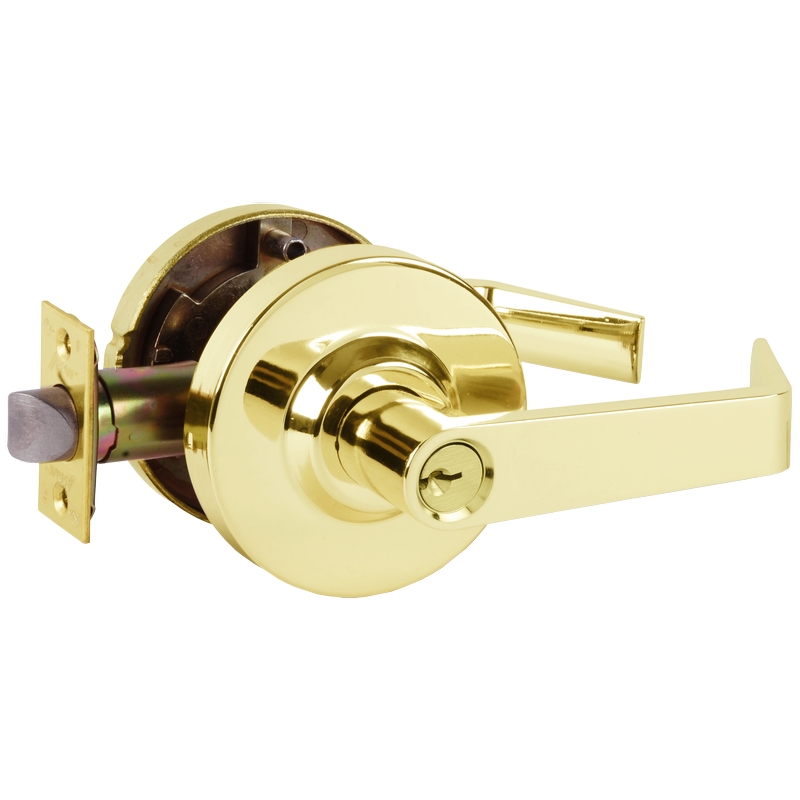

Arrow Lock MLX82-SR-03 Grade 2 Storeroom Lock

Arrow MLX82-SR-03 Grade 2 Storeroom Lock offers an impressive combination of durability and functionality for commercial spaces. Designed as a Grade 2 cylindrical lock, it features a storeroom function with a key-in-lever cylinder, ensuring secure access control. The Sierra lever design adds an elegant touch while providing a robust freewheeling lever that resists abuse, making it ideal for high-traffic environments. Installation is hassle-free with its two-screw lockset system, fitting standard door preparations of 2-1/8" bore and a backset of 2-3/4". This lock is compatible with door thicknesses ranging from 1-3/8" to 1-3/4". The stainless steel 1/2" throw latch is UL Listed and equipped with a guarded latchbolt for enhanced security. Finishing off with a polished brass finish, the lock not only looks professional but also stands the test of time, backed by a 10-year mechanical warranty. The non-handed design makes it versatile for various installations, and with two brass keys included, you'll have the convenience you need. Whether you’re upgrading your existing hardware or outfitting a new facility, the Arrow MLX82-SR-03 is the reliable choice for your storeroom locking needs.

Grade 2 Storeroom Lock

Grade 2 Cylindrical Lock, Storeroom Function, Key in Lever Cylinder, Sierra Lever, 3-11/32" Rose Diameter, Removable Thru-Bolts, Bright Brass Finish, Non-Handed

The MLX Series is a robust Grade 2 lockset featuring a Free Wheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

The MLX Series is the perfect solution for replacing or upgrading lockets in commercial applications.

The MLX Series is a robust Grade 2 lockset featuring a FreeWheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty.

• Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
• Freewheeling Lever
• Warranty – Ten Year Warranty
• Handing – Non-handed
• Packaging – 6 per case
• Strike – 4-7/8" ANSI (123.83mm)
• Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
• Keys – 2 brass keys
