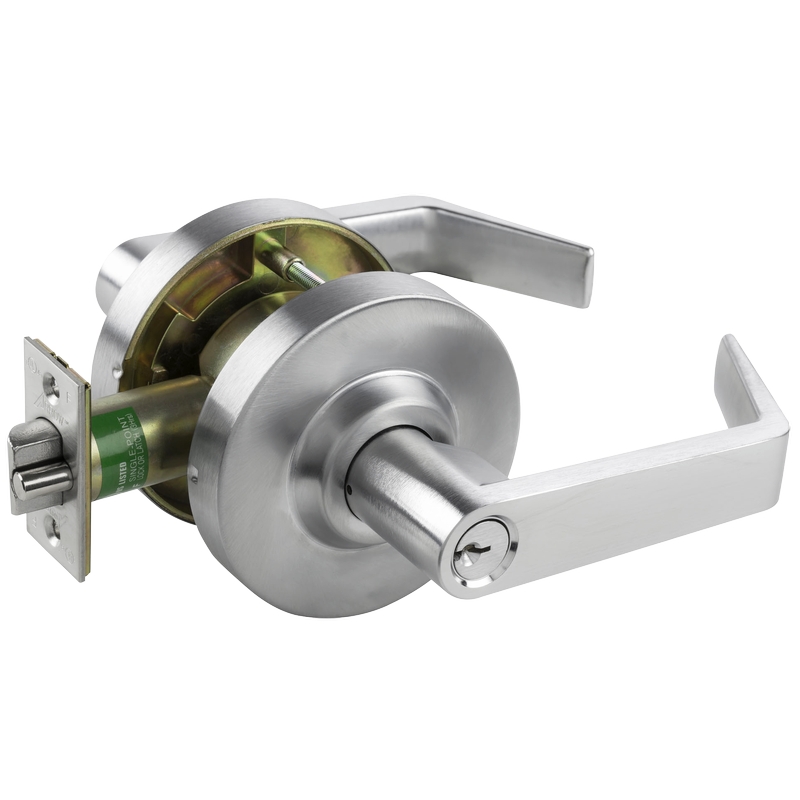

Arrow Lock MLX93-SR-26D Grade 2 Asylum Lock

Arrow MLX93-SR-26D Grade 2 Asylum Lock is a reliable choice for commercial applications, providing both security and ease of use. Designed with a robust Grade 2 cylindrical construction, this lock features an asylum function and a key in lever cylinder for added convenience. The Sierra lever, with a 3-11/32" rose diameter, is aesthetically pleasing and functional, while the satin chrome finish ensures durability and resistance to wear. This lockset is engineered for quick installation with its two-screw design and is non-handed, making it adaptable for various door configurations. The stainless steel latch boasts a 1/2" throw and is UL Listed, ensuring secure locking in all situations. With a 10-year mechanical warranty, the Arrow MLX93-SR-26D promises long-lasting reliability. Compatibility is key, as this lock fits doors with thicknesses from 1-3/8" to 1-3/4" and requires a standard 2-1/8" bore. It includes a solid brass 6-pin cylinder with two brass keys, enhancing its security features. This lock meets ANSI A156.2, Series 4000, Grade 2 standards and is fire-rated for up to three hours, ensuring it meets commercial safety requirements. Upgrade your entryways with the Arrow MLX93-SR-26D for a blend of functionality and style.

Grade 2 Asylum Lock

Grade 2 Cylindrical Lock, Asylum Function, Key in Lever Cylinder, Sierra Lever, 3-11/32" Rose Diameter, Removable Thru-Bolts, Satin Chrome Finish, Non-Handed

The MLX Series is a robust Grade 2 lockset featuring a Free Wheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

The MLX Series is the perfect solution for replacing or upgrading lockets in commercial applications.

The MLX Series is a robust Grade 2 lockset featuring a FreeWheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty.

• Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
• Freewheeling Lever
• Warranty – Ten Year Warranty
• Handing – Non-handed
• Packaging – 6 per case
• Strike – 4-7/8" ANSI (123.83mm)
• Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
• Keys – 2 brass keys
