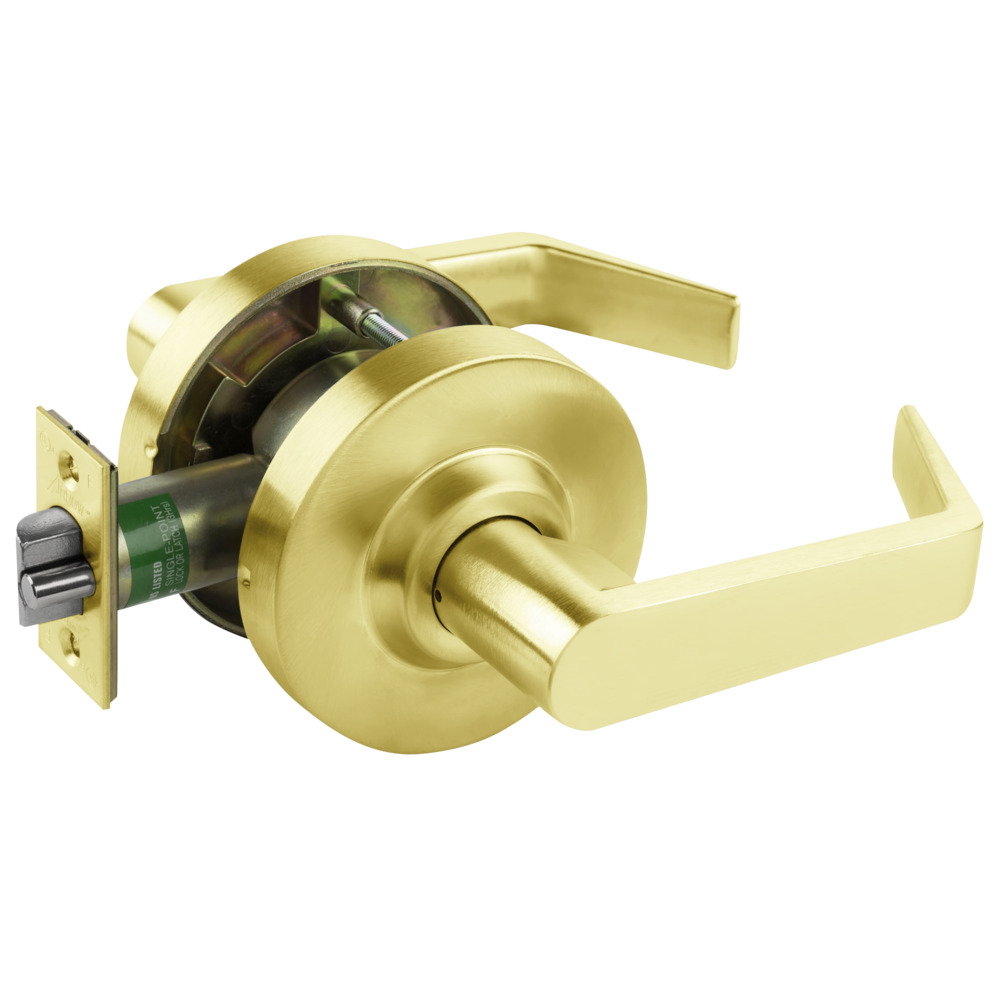

Arrow Lock QL01-SR-03 Grade 1 Passage LatchArrow QL01-SR-03 Grade 1 Passage Latch delivers exceptional durability and security for commercial applications. This Grade 1 cylindrical latch is designed with a passage function, allowing for smooth operation without the need for a key. Featuring a key in lever cylinder and the elegant Sierra lever design, this latch combines functionality with aesthetic appeal. With a rose diameter of 3-11/32 inches, the QL01-SR-03 is equipped with removable thru-bolts for easy installation, making it a convenient choice for both replacements and upgrades. The stainless steel latch boasts a 1/2-inch throw and is UL listed, ensuring robust performance. It fits standard door thicknesses of 1-3/8 inches to 1-3/4 inches and is available in a striking bright brass finish that complements various architectural styles. This latch comes with a 10-year mechanical warranty, showcasing its reliability and longevity. It features a non-handed design, allowing for versatile installation on either side of the door. Additionally, the QL Series meets ANSI A156.2 standards and is ADA compliant, making it an ideal solution for accessible environments. The product includes two brass keys and is packaged six per case for efficient distribution.
Grade 1 Passage Latch
Grade 1 Cylindrical Latch, Passage Function, Key in Lever Cylinder, Sierra Lever, 3-11/32" Rose Diameter, Removable Thru-Bolts, Bright Brass Finish, Non-Handed
The QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
The QL Series is a robust Grade 1 cylindrical lever lock.
The QL Series offers a two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
- Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
- Backset – 2-3/4" (69.85mm)
- Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
- Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
- Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
- Exposed Trim – QL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. QL Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
- Warranty – 10 Years
- Handing – Non-Handed
- Packaging – 6 per case
- Strike – 4-7/8" ANSI (123.83mm)
- Keys – 2 brass keys
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2, Series 4000, Grade 1
Ansi Function: F75 - Passage
Baa Qualified: No
Bore Hole Diameter: 2-1/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: South Korea
Cylinder Type: Key in Lever Cylinder
Door Thickness: 1-3/8" - 1-3/4"
Dust Box: None
Finish: 605/US3
Finish Family: Polished Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 01-Passage
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Leverknob Design: SR - Sierra Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8" x 2-1/4"
Of Keys: 2
Origin: South Korea
Pack Height: 4.13"
Pack Length: 8.38"
Pack Qty: 1
Pack Volume: 241.83 in³
Pack Width: 7"
Pins: 6
Product Height: 4"
Product Length: 8.25"
Product Width: 6.88"
Projection: 2-17/32"
Restrictions: None
Roseescutcheon Design: 3-11/32" Rose Diameter
Screws: Combination
Series: QL Series Grade 1 Cylindrical Lever Locks
Ship Weight: 4.4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 4-7/8"
Std Strike Number: 306
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL 10C
Unit of Measure: Each
