Arrow Lock QL82SR26D-CS-EU24V Electrified 24V Fail Secure Storeroom Lever, Schlage C, Grade 1, Satin Chrome

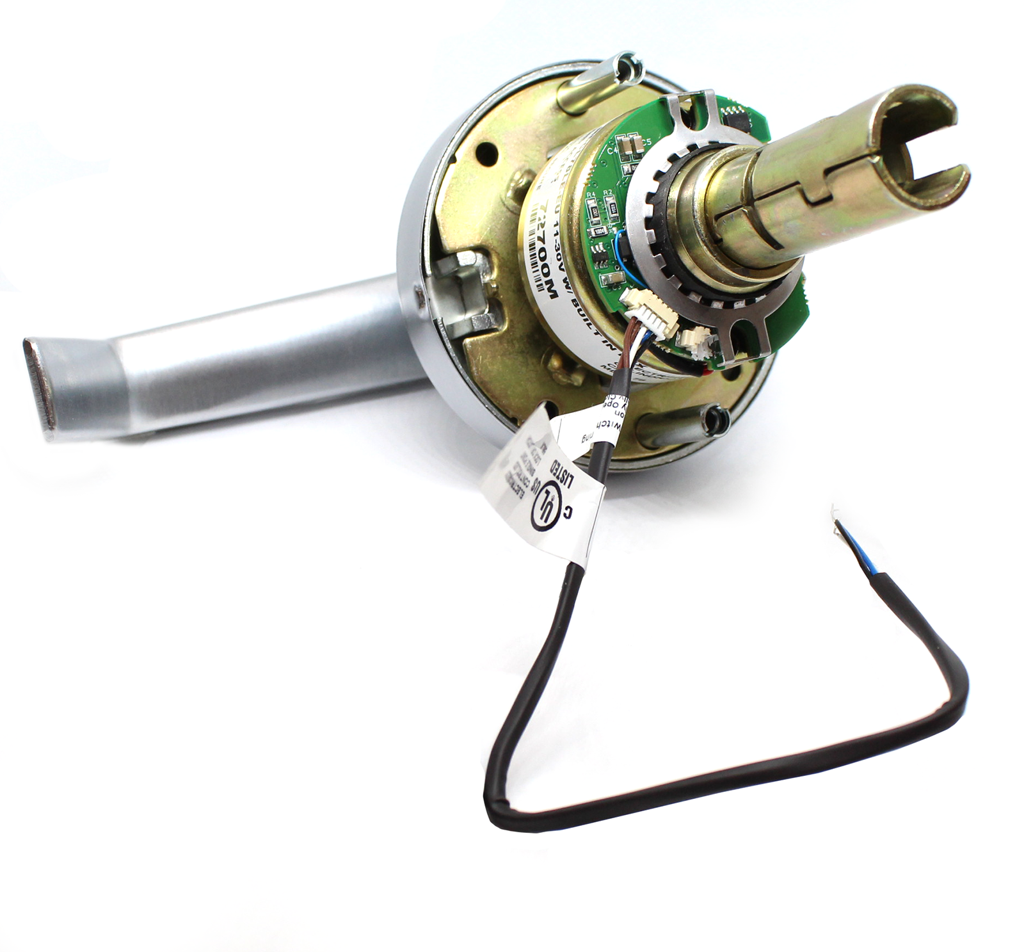

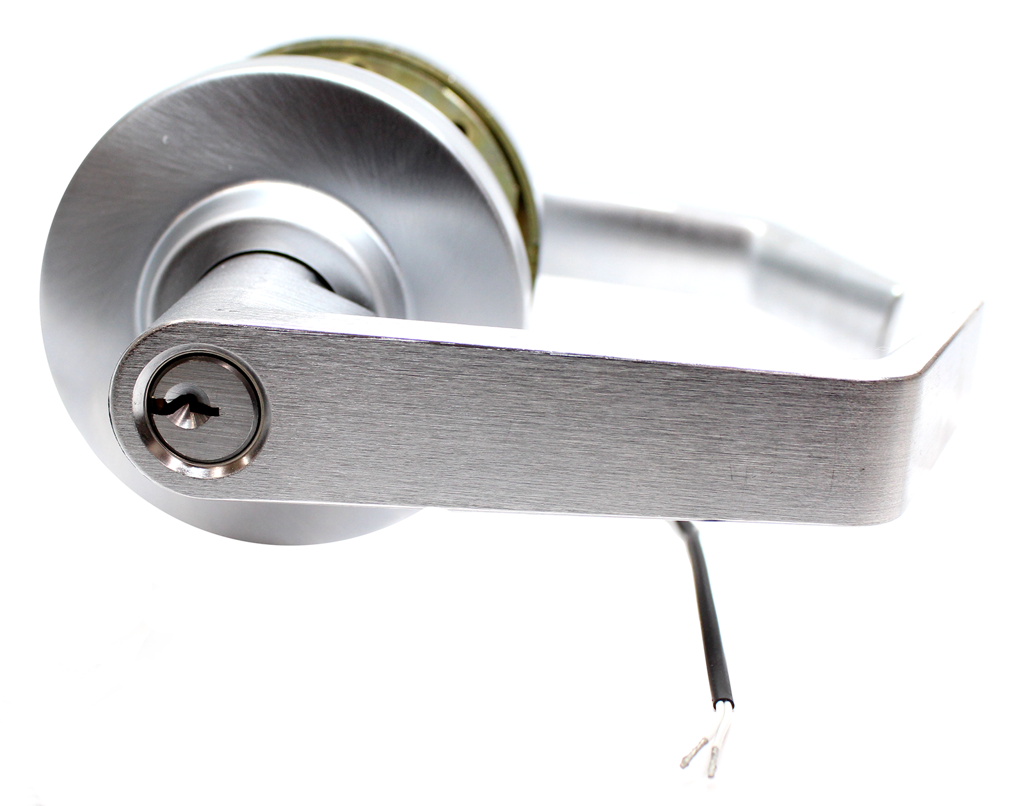

Arrow Lock Company QL82SR26D-CS-EU24V Electrified 24V FSE (Fail Secure) is a high-performance storeroom lever lock, designed to meet the rigorous demands of commercial applications. This Grade 1 lockset features a freewheeling lever that enhances abuse resistance, ensuring longevity and reliability. With a satin chrome finish (626/US26D), it adds a sleek touch to any environment while maintaining a professional aesthetic. The QL82 is built with a robust stainless steel latch, a 1/2" throw, and is UL listed, making it suitable for use on 3-hour, A label single swinging doors. Its non-handed design allows for versatile installation on standard doors with a 2-1/8" bore, accommodating thicknesses from 1-3/8" to 1-3/4". The latch front and strike are ANSI compliant, ensuring compatibility with various door frames. Equipped with a Schlage C keyway and a 10-year mechanical warranty, this lock provides peace of mind and security. The QL82 storeroom function allows for key access from the outside while ensuring that the inside lever remains free for exit. This feature, combined with its adherence to ADA standards, makes it an ideal choice for facilities prioritizing accessibility and safety. Upgrade your security with the Arrow Lock Company QL82SR26D today.

Electrified 24V FSE (Fail Secure), Storeroom Sierra Lever, Schlage C Keyway, Grade 1, 626/US26D Satin Chrome

QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

Features:

• ANSI/BHMA A156.2, Series 4000, Grade 1.
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specification FF-H-106C.
• ANSI A117.1 Accessibility Code.
• California State Reference Code–for levers returning to within 1/2" (12.7mm) of door surface.
• ADA/Americans with Disabilities Act: Acceptable Door Hardware: Section 4.13.9.

Specifications:

• Door Preparation: Requires standard 2-1/8" (54mm) bore through door.
• Backset: 2-3/4" (70mm).
• Door Thickness: Fits 1-3/8" (35mm) to 1-3/4" (44mm) doors standard.
• Latch: Stainless Steel 1/2" (13mm) throw, UL Listed, guarded latchbolt on all locking Functions.
• Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (70mm) backset.
• Exposed Trim: QL Levers are pressure cast zinc measuring 4-3/4" (121mm) in length. QL Roses are wrought brass 3-11/32" (85mm) diameter. Total projection from face of door is 2-17/32" (65mm).
• Freewheeling Lever.
• Handing: Non-handed.
• Strike: 4-7/8" ANSI (124mm).
• Cylinder: Standard: solid brass, 6-pin, keyed different, Arrow A or Schlage C keyway. Optional: prep for small or large format interchangeable core cylinder (cylinder not included).
• Keys: 2 brass keys.
• Design: Sierra (SB).
• Installation: 161 prep for retrofit and secure installation.
• Warranty: Ten Year Warranty.

Function:

• QL01 Passage: Latchbolt operated by lever either side.
• QL02 Privacy:Latch operated by lever either side except when outside lever is locked by pushing inside button. Outside lever unlocked by turning inside lever, using emergency key, or closing door. Inside lever always operates latch.
• QL72 Privacy: Latch operated by lever either side except when outside lever is locked by pushing inside button. Outside lever unlocked by turning inside lever, using emergency key, or closing door. Inside lever always operates latch
• QL81 Entrance:Latchbolt operated by lever either side except when outside lever is locked by turn-button inside. When outside lever is locked, latchbolt operated by key outside or turning inside lever. Inside button must be manually released.
• QL82 Storeroom: Outside lever always rigid. Latchbolt operated by key in outside lever, or by turning inside lever.
• QL87 Classroom: Latchbolt operated by lever either side except when key outside locks outside lever. Inside lever always free. Key outside locks/unlocks out-side lever only.
• QL97 Intruder Classroom: Deadlocking latch bolt operated by lever from either side. Key either inside or outside locks or unlocks outside lever. Inside lever always operates latchbolt.

Accessories:

• Q73: Spring Latch: 2-3/4" Backset. 1/2" Throw.
• Q71: Dead Latch: 2-3/4" Backset. 1/2" Throw.
• 306: ANSI 115.2 Strike Standard with QL Series.

Finishes:

• 605/US3 - Bright Brass
• 613e/US10BE - Dark Oxide Satin Bronze Equivalent
• 626/US26D - Satin Chromium Plated
