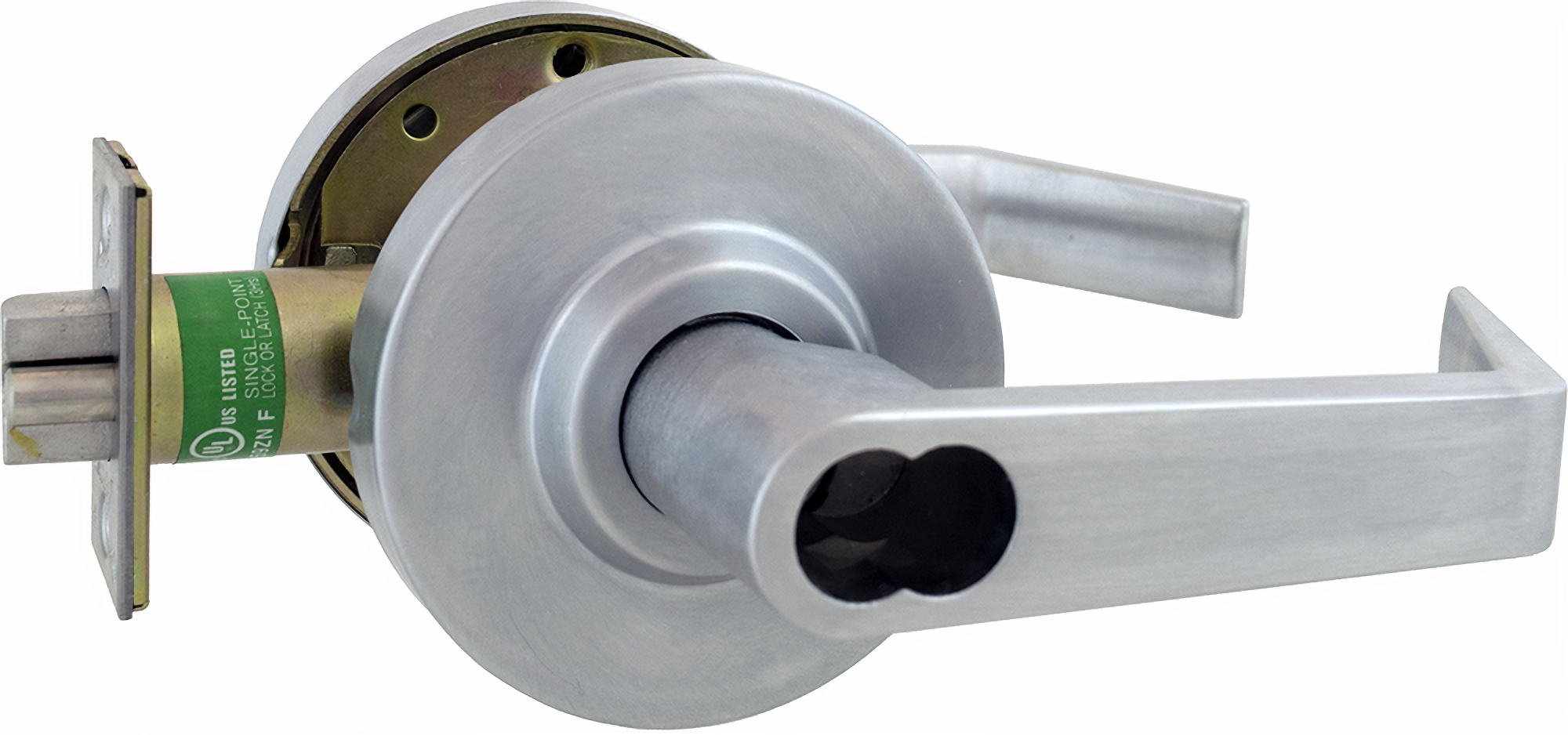

Arrow Lock QL82SR26D-LIC-2 3/4 BS Storeroom Sierra Lever, LFIC for Medeco/ASSA, Less Core, 2-3/4in Backset, Grade 1

Arrow Lock Company QL82SR26D-LIC-2 3/4 BS Storeroom Sierra Lever is a robust Grade 1 lockset designed for commercial applications where security and durability are essential. This storeroom function lock features a freewheeling lever for enhanced abuse resistance, making it an ideal choice for high-traffic environments. The installation process is streamlined with a two-screw lockset, ensuring quick and efficient setup. This model accommodates standard door preparations with a 2-1/8" bore and is compatible with 1-3/8" to 1-3/4" thick doors. It boasts a 2-3/4" backset and includes a stainless steel latch with a 1/2" throw, ensuring reliable performance. The QL82 design features a pressure-cast zinc lever and a wrought brass rose, both finished in satin chrome (626/US26D) for a sleek appearance. Certified by ANSI/BHMA A156.2, this lockset meets various accessibility codes, making it suitable for diverse building applications. It is also UL listed for use on 3-hour fire-rated doors. The non-handed design allows for versatile installation, and with a ten-year mechanical warranty, you can trust its longevity. Enhance your security with the Arrow Lock Company QL82SR26D, the ideal solution for storeroom access control.

Storeroom Sierra Lever, LFIC for Medeco and ASSA IC Cores, Less Core, 2-3/4in Backset, Grade 1, 626/US26D Satin Chrome

QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

Features:

• ANSI/BHMA A156.2, Series 4000, Grade 1.
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specification FF-H-106C.
• ANSI A117.1 Accessibility Code.
• California State Reference Code–for levers returning to within 1/2" (12.7mm) of door surface.
• ADA/Americans with Disabilities Act: Acceptable Door Hardware: Section 4.13.9.

Specifications:

• Door Preparation: Requires standard 2-1/8" (54mm) bore through door.
• Backset: 2-3/4" (70mm).
• Door Thickness: Fits 1-3/8" (35mm) to 1-3/4" (44mm) doors standard.
• Latch: Stainless Steel 1/2" (13mm) throw, UL Listed, guarded latchbolt on all locking Functions.
• Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (70mm) backset.
• Exposed Trim: QL Levers are pressure cast zinc measuring 4-3/4" (121mm) in length. QL Roses are wrought brass 3-11/32" (85mm) diameter. Total projection from face of door is 2-17/32" (65mm).
• Freewheeling Lever.
• Handing: Non-handed.
• Strike: 4-7/8" ANSI (124mm).
• Cylinder: Standard: solid brass, 6-pin, keyed different, Arrow A or Schlage C keyway. Optional: prep for small or large format interchangeable core cylinder (cylinder not included).
• Keys: 2 brass keys.
• Design: Sierra (SB).
• Installation: 161 prep for retrofit and secure installation.
• Warranty: Ten Year Warranty.

Function:

• QL01 Passage: Latchbolt operated by lever either side.
• QL02 Privacy:Latch operated by lever either side except when outside lever is locked by pushing inside button. Outside lever unlocked by turning inside lever, using emergency key, or closing door. Inside lever always operates latch.
• QL72 Privacy: Latch operated by lever either side except when outside lever is locked by pushing inside button. Outside lever unlocked by turning inside lever, using emergency key, or closing door. Inside lever always operates latch
• QL81 Entrance:Latchbolt operated by lever either side except when outside lever is locked by turn-button inside. When outside lever is locked, latchbolt operated by key outside or turning inside lever. Inside button must be manually released.
• QL82 Storeroom: Outside lever always rigid. Latchbolt operated by key in outside lever, or by turning inside lever.
• QL87 Classroom: Latchbolt operated by lever either side except when key outside locks outside lever. Inside lever always free. Key outside locks/unlocks out-side lever only.
• QL97 Intruder Classroom: Deadlocking latch bolt operated by lever from either side. Key either inside or outside locks or unlocks outside lever. Inside lever always operates latchbolt.

Accessories:

• Q73: Spring Latch: 2-3/4" Backset. 1/2" Throw.
• Q71: Dead Latch: 2-3/4" Backset. 1/2" Throw.
• 306: ANSI 115.2 Strike Standard with QL Series.

Finishes:

• 605/US3 - Bright Brass
• 613e/US10BE - Dark Oxide Satin Bronze Equivalent
• 626/US26D - Satin Chromium Plated

Resources

• Cut Sheet
