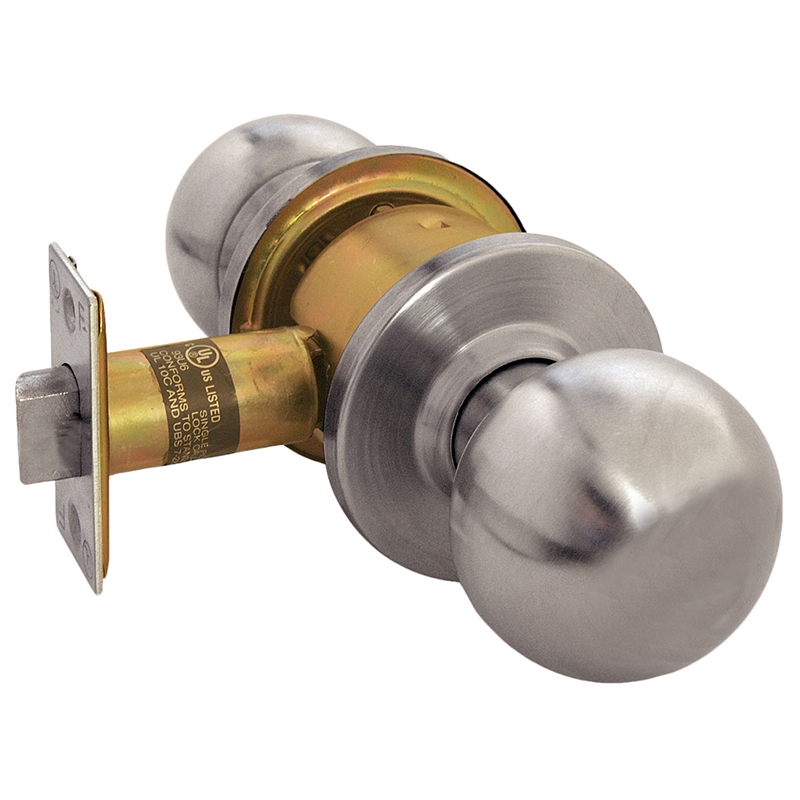

Arrow Lock RK02-BD-32D Grade 2 Privacy Lock

Arrow RK02-BD-32D Grade 2 Privacy Lock offers an ideal solution for multi-family housing and light commercial applications. This Grade 2 cylindrical lock features a durable ball knob design without a keyed entry, providing ease of use while maintaining privacy. The lock is finished in a satin stainless steel that enhances its aesthetic appeal and corrosion resistance, ensuring longevity in various environments. Constructed from cold-rolled steel with a zinc dichromate finish, the RK02-BD is built to withstand wear and tear. It accommodates standard door thicknesses ranging from 1-3/8" to 1-3/4" and features a 2-1/8" bore hole for easy installation. The latch has a 1/2" throw and is UL Listed, ensuring reliable security and functionality. The non-handed design allows for versatile installation, while the included 2 brass keys ensure easy access for authorized users. With a robust construction that meets ANSI A156.2 Series 4000 standards and a five-year mechanical warranty, the Arrow RK02-BD-32D is a dependable choice for those seeking quality and security in door hardware. Whether upgrading existing locks or installing new ones, this privacy lock combines functionality and style seamlessly.

Grade 2 Privacy Lock

Grade 2 Privacy Cylindrical Lock, Ball Knob, Non-Keyed, Satin Stainless Steel Finish, Non-handed

The RK Series has been enhanced to offer a wide variety of finishes and functions. The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

The Arrow RK Series offers a wide variety of finishes and functions.

The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

• Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm).
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions.
• Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).
• Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
• Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
• Keys – 2 brass keys.
• Handing – Non-handed.
• Thru-bolts – Removable thru-bolts standard on RL Series.
• Packaging– 10 per case.
• Warranty – Five Year Mechanical Warranty

Resources

• RK & RL Series Template
• RK Series Cut Sheet
• RK Series Grade 2 Cylindrical Knob Locks Cut Sheet
• RK Series Instructions
