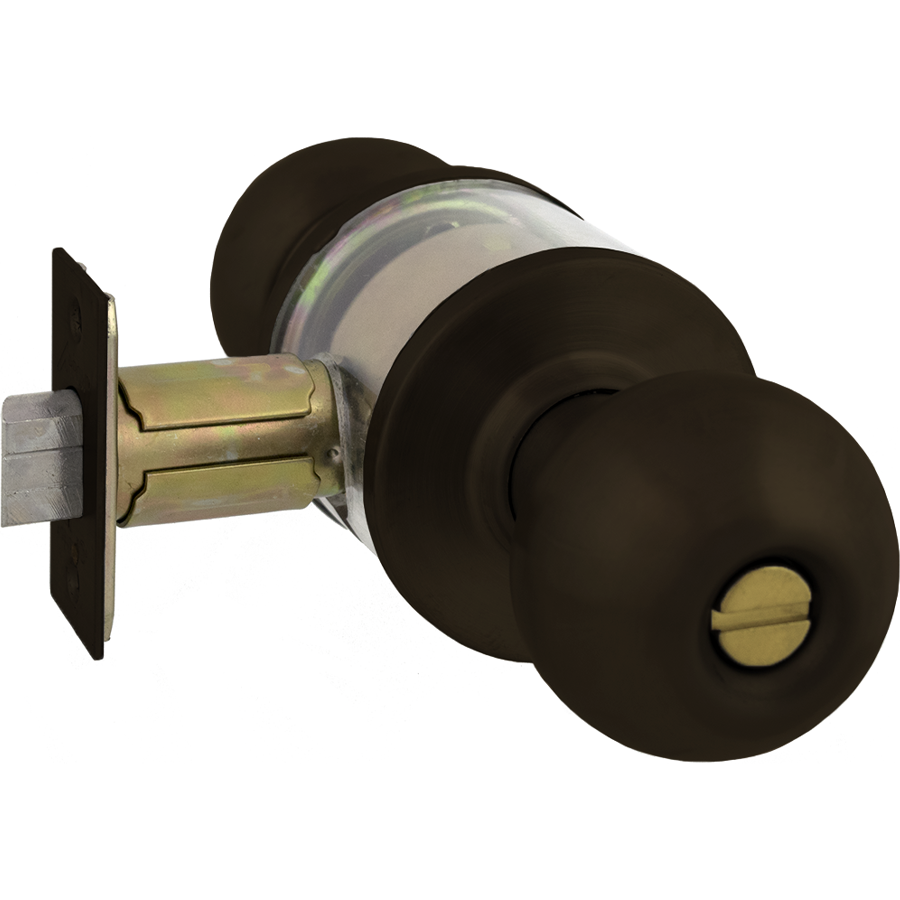

Arrow Lock RK02BD613E-2 3/4 BS Privacy Ball Knob, 2-3/4in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

Arrow Lock Company RK02BD613E-2 3/4 BS Privacy Ball Knob offers a robust solution for both residential and light commercial settings. This Grade 2 cylindrical lockset is designed with an economical value, making it ideal for multi-family housing and various applications. Crafted from cold-rolled steel with a zinc dichromate finish, it ensures durability and corrosion resistance. The RK02 model features a 2-3/4-inch backset and accommodates door thicknesses from 1-3/8 inches to 1-3/4 inches. Its brass latch provides a 1/2-inch throw and is UL Listed, enhancing security with a guarded latchbolt. The exposed trim, available in oil-rubbed bronze, is both stylish and functional, with a total projection of 2-3/4 inches from the door face. This privacy knob allows for easy operation, locking from the inside with a simple button push, while still providing emergency access through a key or by closing the door. The lockset is non-handed, ensuring flexibility in installation. With a 5-year limited warranty and compatibility with existing Arrow or competitive master key systems, the RK02BD613E-2 is a reliable choice for securing your space.

Privacy Ball Knob, 2-3/4in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Features:

• Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (54mm) bore through door.
• Backset: 2-3/8" (60mm) or 2-3/4" (70mm).
• Door Thickness: Fits 1-3/8" (35mm) to 1-3/4" (44mm) doors standard.
• Latch: Brass 1/2" (13mm) throw, UL Listed, guarded latchbolt on all locking functions.
• Latch Front: 1" x 2-1/4" (25mm x 57mm) for 2-3/8" backset (60mm) or 1-1/8" x 2-1/4" for 2-3/4" (70mm) backset.
• Exposed Trim: Brass or stainless steel. Roses are 2-1/2" (64mm) diameter. Total projection from face of door is 2-3/4" (70mm).
• Strike: 4-7/8" ANSI (124mm), 2-3/4" (70mm) T strike, or 2-1/4" (57mm) full lip strike.
• Cylinder: Standard: solid brass, 6-pin, keyed different, Arrow A or Schlage C keyway. Optional: prep for small format interchangeable.
• Handing: Non-handed.
• Thru-bolts: Removable thru-bolts standard on RL Series.
• Economical value for a variety of applications.
• Easily keys into new or existing Arrow or competitive master key systems.

Specifications:

• ANSI/BHMA Code: A156.2
• ANSI/BHMA Series: Series 4000
• Backset Depth (Standard): 2 19/50"
• Cylinder Format: Conventional, Small Format
• Cylinder Pins: 6 pin
• Door Type: Hollow Metal, Wood
• Number of Keys: 2
• Warranty: 5-year limited warranty

Functions:

• Non-Cylinder RK01: Passage, Closet
• ANSI No. F75
• Latchbolt operated by knob either side
• Non-Cylinder RK02: Privacy Bath/Bedroom
• ANSI No. F76A
• Latch operated by knob either side except when outside knob is locked by pushing inside button
• Outside knob unlocked by turning inside knob, using emergency key, or closing door
• Inside knob always operates latch
• Non-Cylinder RK08: Single Dummy Trim
• ANSI No. N/A
• Rigid trim for one side of door only
• Used as pull or to match active trim
• Single Cylinder RK11: Entrance or Office
• ANSI No. F109
• Latchbolt operated by knob either side except when outside knob is locked by turn-button inside
• When outside knob is locked, latchbolt operated by key outside or turning inside knob
• Inside button must be manually released
• Single Cylinder RK12: Storeroom or Closet
• ANSI No. F86
• Outside knob always rigid
• Latchbolt operated by key in outside knob, or by turning inside knob
• Single Cylinder RK17: Classroom
• ANSI No. F84
• Latchbolt operated by knob either side except when key outside locks outside knob
• Inside knob always free
• Key outside locks/unlocks outside knob only

Finishes:

• 605/US3 - Bright Brass
• 606/US4 - Satin Brass
• 613/US10B - Dark Oxide Bronze, Oil Rubbed
• 629/US32 - Bright Stainless Stee
• 630/US32D - Satin Stainless Steel
