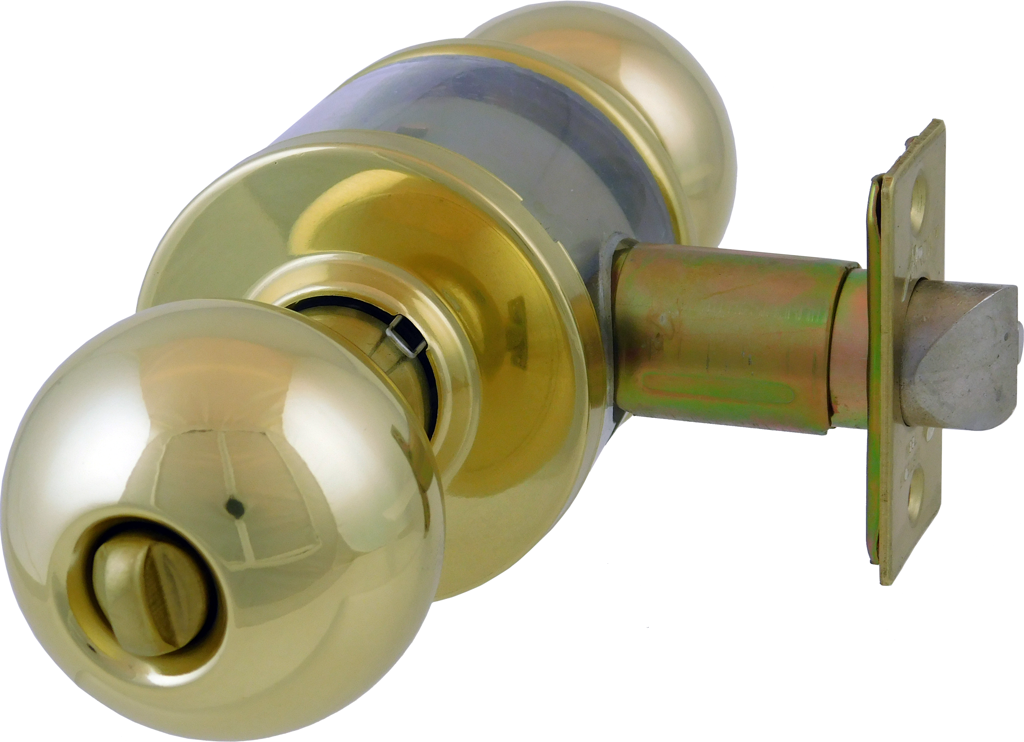

Arrow Lock RK11BD03-CS-2 3/8 BS Schlage Entry Ball Knob, C Keyway, 2-3/8" Backset, Grade 2, Bright Brass

Arrow Lock Company RK11BD03-CS-2 3/8 BS Entry Ball Knob offers reliable security and style for various applications, particularly suited for multi-family housing and light commercial environments. Designed for durability, this Grade 2 cylindrical lockset is constructed from cold-rolled steel with a corrosion-resistant zinc dichromate finish, ensuring longevity even in demanding conditions. The RK11BD03-CS-2 features a 2-3/8 inch backset and accommodates door thicknesses from 1-3/8 inch to 1-3/4 inch. This model is equipped with a UL Listed, guarded latchbolt, providing peace of mind with its 1/2 inch throw. The lockset includes a solid brass 6-pin cylinder with a Schlage C keyway standard, ensuring a secure key system, while interchangeable core options are available for added versatility. Installation is straightforward, requiring a standard 1-1/8 inch bore through the door. The lockset is non-handed, making it adaptable for various configurations. Each unit is provided with two brass keys, further enhancing convenience. Certified to meet ANSI, A156.2, and UL standards for three-hour rated doors, the RK11BD03-CS-2 is an ideal choice for those seeking a balance of functionality and aesthetic appeal in their locking solutions.

Entry Ball Knob, Schlage C Keyway, 2-3/8in Backset, Grade 2, 605/US3 Bright Brass

The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Features:

• Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 1-1/8" (53.97mm) bore through door.
• Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
• Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch: 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking Functions
• Latch Front:*
• 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset
• 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim:
• RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm). RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length.
• RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
• Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
• Cylinder:
• Conventional - Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional.
• Interchangeable Core – Lockset prepared to use with 6 or 7 pin interchangeable core.
• Will accept cores manufactured by Arrow, Best, Falcon, Medeco Keymark, ASSA, and others.
• Keys: 2 brass keys
• Handing: Non-handed
• Certification: The RK Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors.

Series Functions:

• RK01 Passage
• RK02 Privacy
• RK08 Half Dummy Trim
• RK11 Entrance
• RK12 Storeroom
• RK17 Classroom

Finishes:

• US3
• US4
• US10
• US10B
• US32
• US32D
