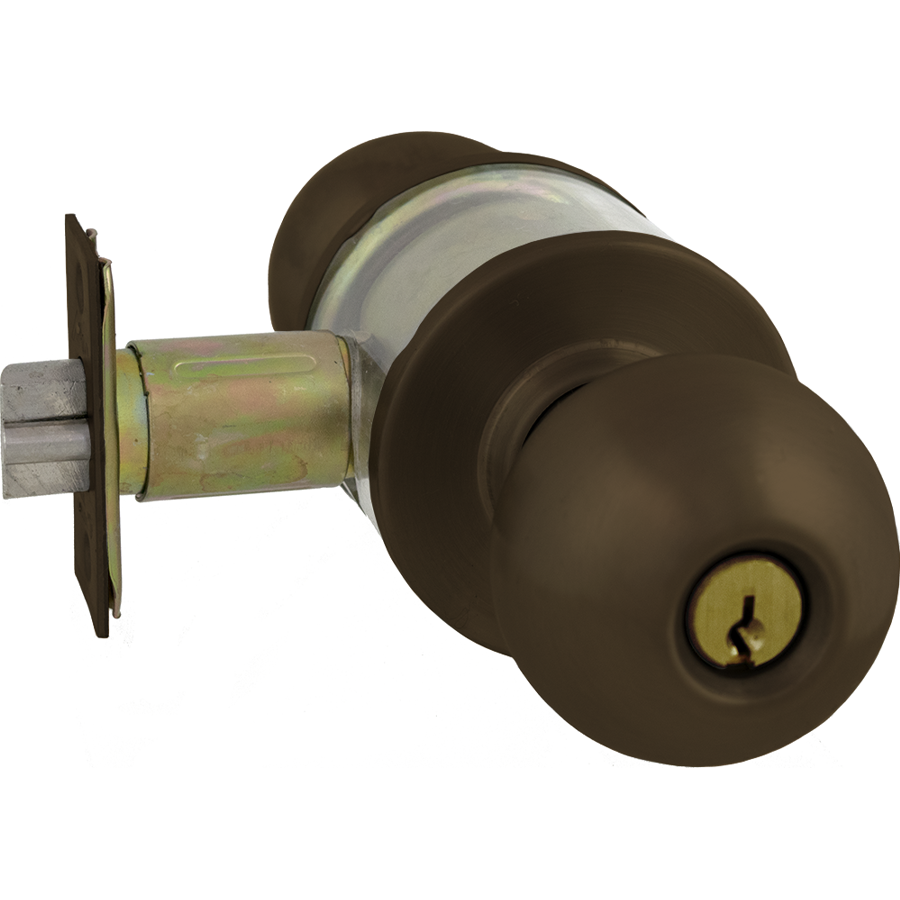

Arrow Lock RK17BD613E-CS-2 3/8 BS Schlage Classroom Ball Knob, C Keyway, 2-3/8" Backset, Oil Rubbed Bronze

Arrow Lock Company RK17BD613E-CS-2 3/8 BS Classroom Ball Knob offers an ideal solution for securing educational facilities, ensuring safety and convenience. Designed with a Schlage C keyway, this lockset features a durable cold-rolled steel construction enhanced with a zinc dichromate finish, providing excellent corrosion resistance. The RK17 model is available with a 2-3/8 inch backset, making it suitable for standard door preparations. This Grade 2 lockset accommodates doors with a thickness of 1-3/8 inches to 1-3/4 inches, ensuring versatility across various applications. The brass latch offers a 1/2 inch throw and is UL Listed, guaranteeing reliability in locking performance. With a non-handed design, installation is simplified, and it can easily integrate into existing Arrow or competitive master key systems, enhancing security across multiple access points. The RK17's classroom function allows for easy operation from the inside while providing controlled access from the outside with a key. Finished in oil-rubbed bronze (613E/US10BE), it combines aesthetic appeal with robust functionality. Backed by a 5-year limited warranty, the Arrow Lock RK17BD613E is a dependable choice for commercial and multi-family housing needs, ensuring peace of mind without compromising on style.

Classroom Ball Knob, Schlage C Keyway, 2-3/8in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Features:

• Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (54mm) bore through door.
• Backset: 2-3/8" (60mm) or 2-3/4" (70mm).
• Door Thickness: Fits 1-3/8" (35mm) to 1-3/4" (44mm) doors standard.
• Latch: Brass 1/2" (13mm) throw, UL Listed, guarded latchbolt on all locking functions.
• Latch Front: 1" x 2-1/4" (25mm x 57mm) for 2-3/8" backset (60mm) or 1-1/8" x 2-1/4" for 2-3/4" (70mm) backset.
• Exposed Trim: Brass or stainless steel. Roses are 2-1/2" (64mm) diameter. Total projection from face of door is 2-3/4" (70mm).
• Strike: 4-7/8" ANSI (124mm), 2-3/4" (70mm) T strike, or 2-1/4" (57mm) full lip strike.
• Cylinder: Standard: solid brass, 6-pin, keyed different, Arrow A or Schlage C keyway. Optional: prep for small format interchangeable.
• Handing: Non-handed.
• Thru-bolts: Removable thru-bolts standard on RL Series.
• Economical value for a variety of applications.
• Easily keys into new or existing Arrow or competitive master key systems.

Specifications:

• ANSI/BHMA Code: A156.2
• ANSI/BHMA Series: Series 4000
• Backset Depth (Standard): 2 19/50"
• Cylinder Format: Conventional, Small Format
• Cylinder Pins: 6 pin
• Door Type: Hollow Metal, Wood
• Number of Keys: 2
• Warranty: 5-year limited warranty

Functions:

• Non-Cylinder RK01: Passage, Closet
• ANSI No. F75
• Latchbolt operated by knob either side
• Non-Cylinder RK02: Privacy Bath/Bedroom
• ANSI No. F76A
• Latch operated by knob either side except when outside knob is locked by pushing inside button
• Outside knob unlocked by turning inside knob, using emergency key, or closing door
• Inside knob always operates latch
• Non-Cylinder RK08: Single Dummy Trim
• ANSI No. N/A
• Rigid trim for one side of door only
• Used as pull or to match active trim
• Single Cylinder RK11: Entrance or Office
• ANSI No. F109
• Latchbolt operated by knob either side except when outside knob is locked by turn-button inside
• When outside knob is locked, latchbolt operated by key outside or turning inside knob
• Inside button must be manually released
• Single Cylinder RK12: Storeroom or Closet
• ANSI No. F86
• Outside knob always rigid
• Latchbolt operated by key in outside knob, or by turning inside knob
• Single Cylinder RK17: Classroom
• ANSI No. F84
• Latchbolt operated by knob either side except when key outside locks outside knob
• Inside knob always free
• Key outside locks/unlocks outside knob only

Finishes:

• 605/US3 - Bright Brass
• 606/US4 - Satin Brass
• 613/US10B - Dark Oxide Bronze, Oil Rubbed
• 629/US32 - Bright Stainless Stee
• 630/US32D - Satin Stainless Steel
