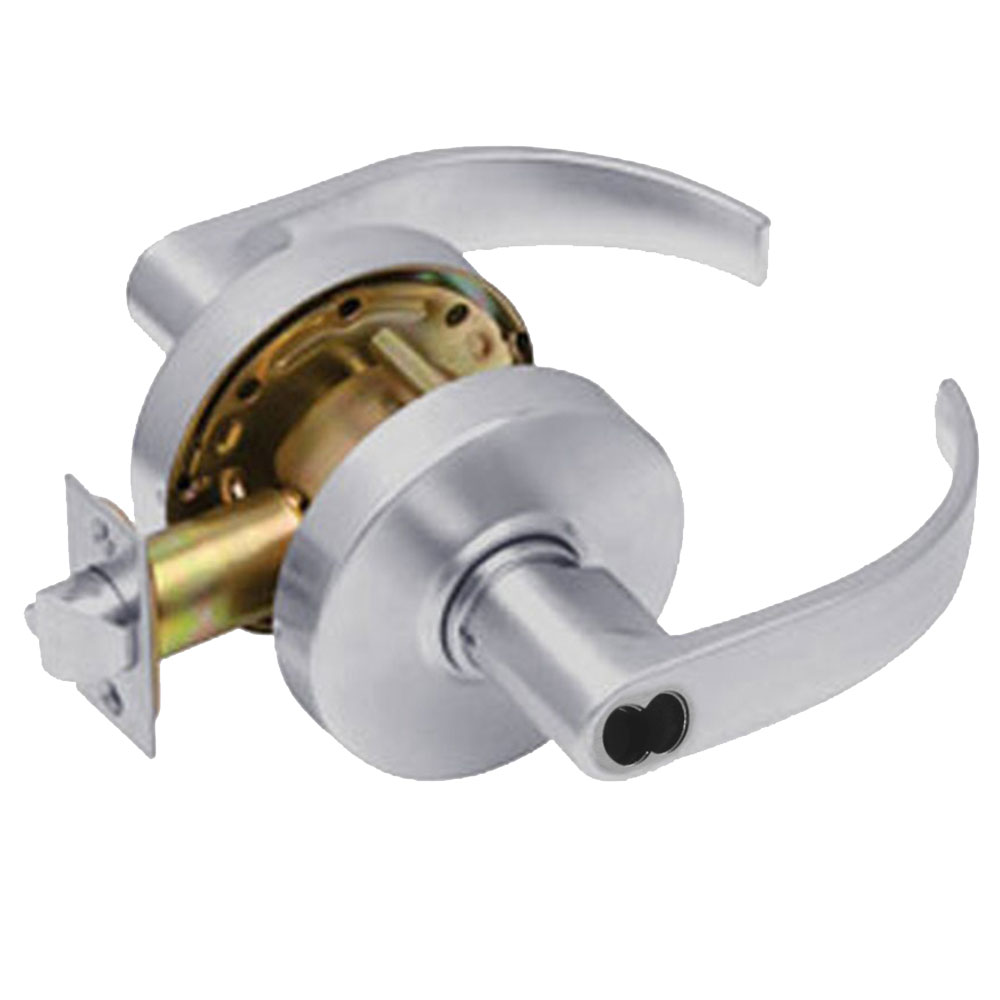

Arrow Lock RL11-BRR-26D-IC Grade 2 Entrance Lock

Arrow RL11-BRR-26D-IC Grade 2 Entrance Lock delivers a reliable, stylish security solution for both multi-family housing and light commercial applications. This Grade 2 turn-pushbutton cylindrical lock features a sophisticated Broadway lever design, combined with a sleek satin chrome finish that not only enhances aesthetics but also offers resilience against wear. Built with cold-rolled steel and a zinc dichromate finish, this lock ensures long-lasting durability and corrosion resistance. Designed to fit doors with a thickness of 1-3/8" to 1-3/4", it accommodates standard 2-1/8" bore holes and offers a choice of backsets at 2-3/8" or 2-3/4". The 1/2" throw brass latch is UL Listed and features a guarded latchbolt for added security. The RL Series boasts removable through bolts, making installation and maintenance a breeze. With a solid brass 6-pin cylinder and the Arrow "A" keyway standard, it provides versatile keying options, including compatibility with Schlage CS and other competitive keyways. This non-handed lock comes with two brass keys and is backed by a five-year mechanical warranty, ensuring peace of mind for its users. Upgrade your entry points with the Arrow RL11-BRR-26D-IC for a blend of functionality and style.

Grade 2 Entrance Lock

Grade 2 Turn-Pushbutton Entrance Cylindrical Lock, Broadway Lever, SFIC Less Core, Satin Chrome Finish, Non-handed

The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

The RL Series offers removable through bolts and a wide variety of design.

The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

• Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
• Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
• Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
• Keys – 2 brass keys Handing – Non-handed
• Thru-bolts – Removable thru-bolts standard on RL Series
• Packaging – 10 per case
• Warranty – Five Year Mechanical Warranty
