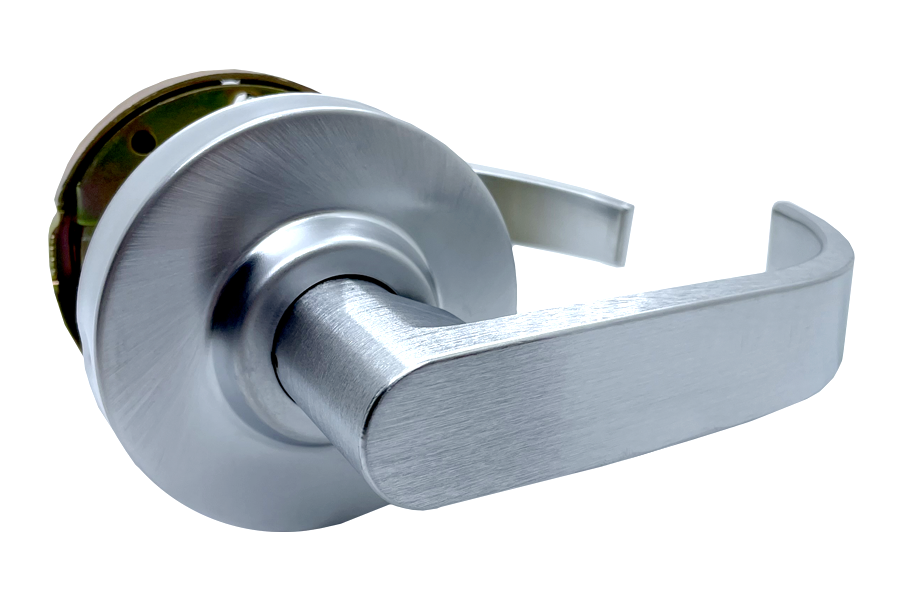

Arrow Lock RLX01BRR26D-2 3/4 BS Passage Broadway Lever, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

Arrow Lock Company RLX01BRR26D-2 3/4 BS Passage Broadway Lever is a robust and reliable Grade 2 lockset designed for commercial applications. With its freewheeling lever operation, this model offers enhanced abuse resistance, making it an excellent choice for high-traffic areas. The RLX Series features removable through bolts and comes in a variety of designs, finishes, and functions, allowing for versatile installation options. This cylindrical lockset is factory set for doors measuring 1-3/4 inches thick but accommodates a range of door thicknesses from 1-3/8 inches to 1-3/4 inches. It includes an ANSI-compliant strike measuring 1-1/4 inches by 4-7/8 inches and a 2-3/4 inch backset latch with a 1-1/8 inch front. The standard 6-pin cylinder is crafted from solid brass and comes with two nickel-plated brass keys, ensuring security and durability. Notably, the RLX01BRR26D-2 is non-handed, providing flexibility during installation, and is backed by a 10-year warranty for peace of mind. It is available in a sleek Satin Chromium Plated finish (626/US26D) that complements any commercial setting. Elevate your security with Arrow Lock’s dependable RLX Series lockset-engineered for performance and longevity.

Passage Broadway Lever, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
