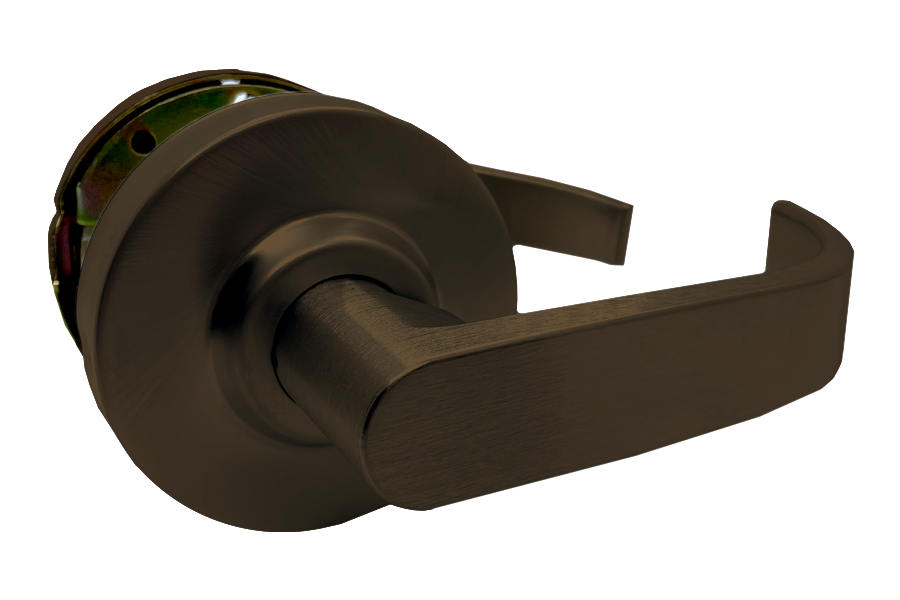

Arrow Lock RLX01BRR613E-2 3/4 BS Passage Broadway Lever, 2-3/4in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

Arrow Lock Company RLX01BRR613E-2 3/4 BS Passage Broadway Lever offers a robust solution for access control in commercial environments. This Grade 2 lockset features a durable, freewheeling lever operation, designed to withstand extensive use and abuse, making it ideal for high-traffic areas. The RLX series is part of Arrow’s Professional Replacement Products, equipped with removable through bolts for easy installation and versatility. Designed to accommodate door thicknesses from 1-3/8" to 1-3/4", this lock is factory set for 1-3/4" doors. The 2-3/4" backset and 1-1/8" front latch ensure compatibility with standard ANSI strikes, providing a secure fit. The lock is certified to BHMA A156.2, Series 4000, Grade 2, and is UL Listed, affirming its reliability and performance. The RLX01BRR613E-2 is finished in a sophisticated Dark Oxide Satin Bronze (613E/US10BE), enhancing both aesthetics and durability. Its non-handed design simplifies installation, while the standard 6-pin solid brass cylinder comes with two nickel-plated brass keys, offering peace of mind in security. Backed by a 10-year warranty, this lockset is not just a functional necessity; it is a long-lasting investment for any commercial application.

Passage Broadway Lever, 2-3/4in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
