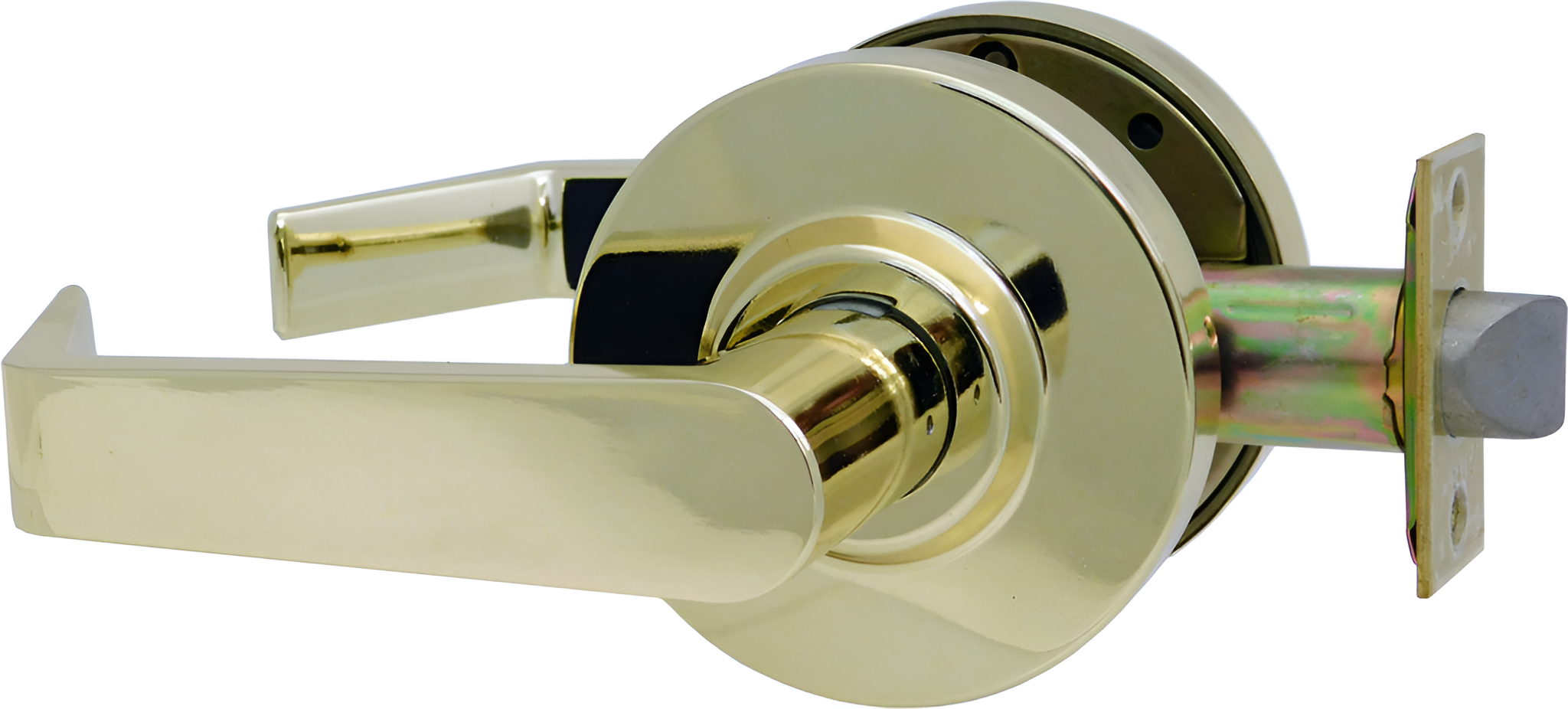

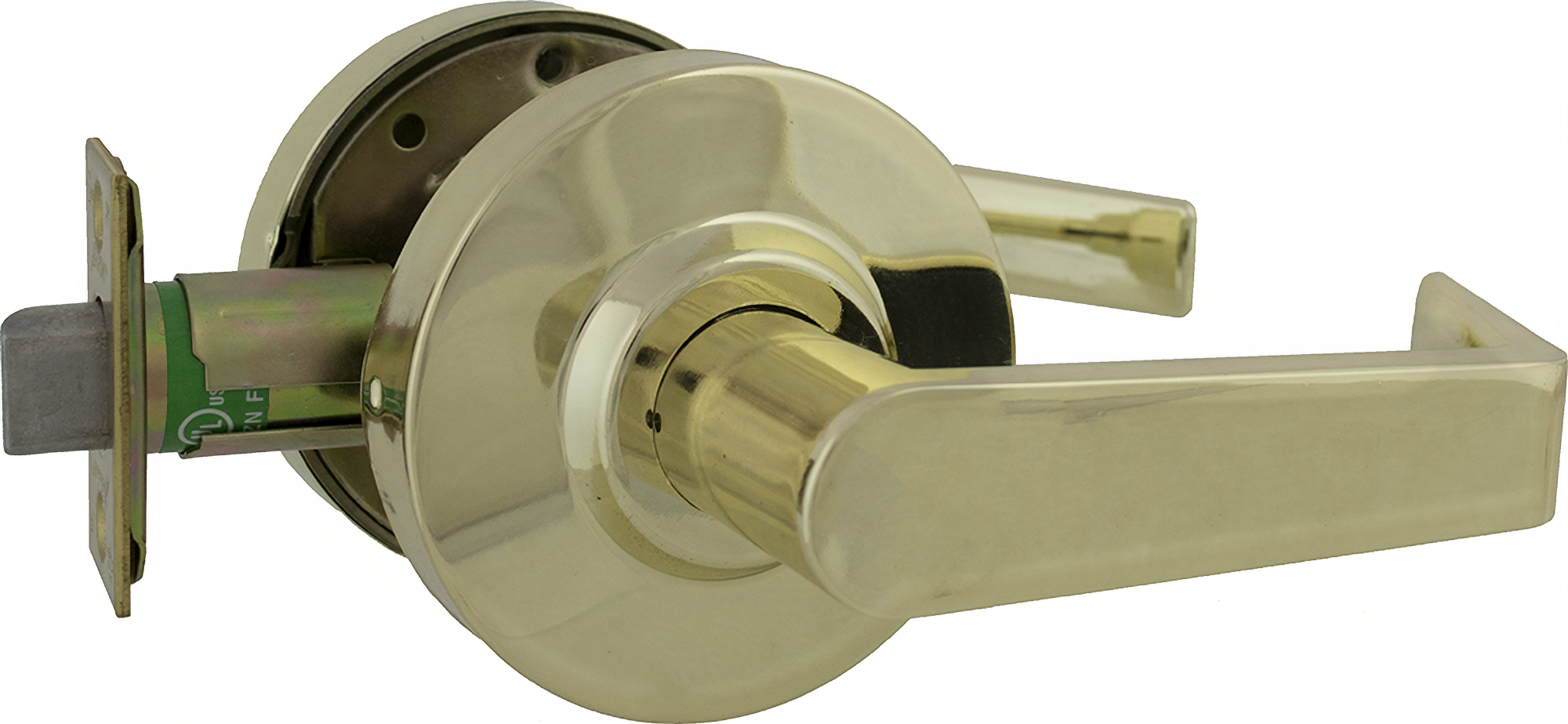

Arrow Lock RLX01SR03-2 3/4 BS Passage Sierra Lever, 2-3/4in Backset, Grade 2, 605/US3 Bright Brass

Arrow Lock Company RLX01SR03-2 3/4 BS Passage Sierra Lever is a dependable and robust Grade 2 lockset designed for commercial applications. With its freewheeling lever operation, this lockset provides enhanced resistance to abuse, making it an ideal choice for high-traffic areas. The RLX Series features removable through bolts and comes in a variety of designs, finishes, and functions, allowing for easy installation and versatile use. This model is specifically designed to accommodate door thicknesses ranging from 1-3/8" to 1-3/4", factory-set for 1-3/4". It includes a 2-3/4" backset latch and a standard 6-pin solid brass cylinder, complete with two nickel-plated brass keys. The lockset is non-handed, offering flexibility in installation. Certifications include BHMA A156.2, Series 4000, and UL Listed for added assurance of quality and safety. The RLX01SR03-2 is available in a stunning Bright Brass finish, adding a touch of elegance to any door. With a 10-year warranty, you can trust in its durability and performance. Whether upgrading or replacing existing locksets, the Arrow Lock Company RLX01SR03-2 is your go-to solution for security and style in commercial environments.

Passage Sierra Lever, 2-3/4in Backset, Grade 2, 605/US3 Bright Brass

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
