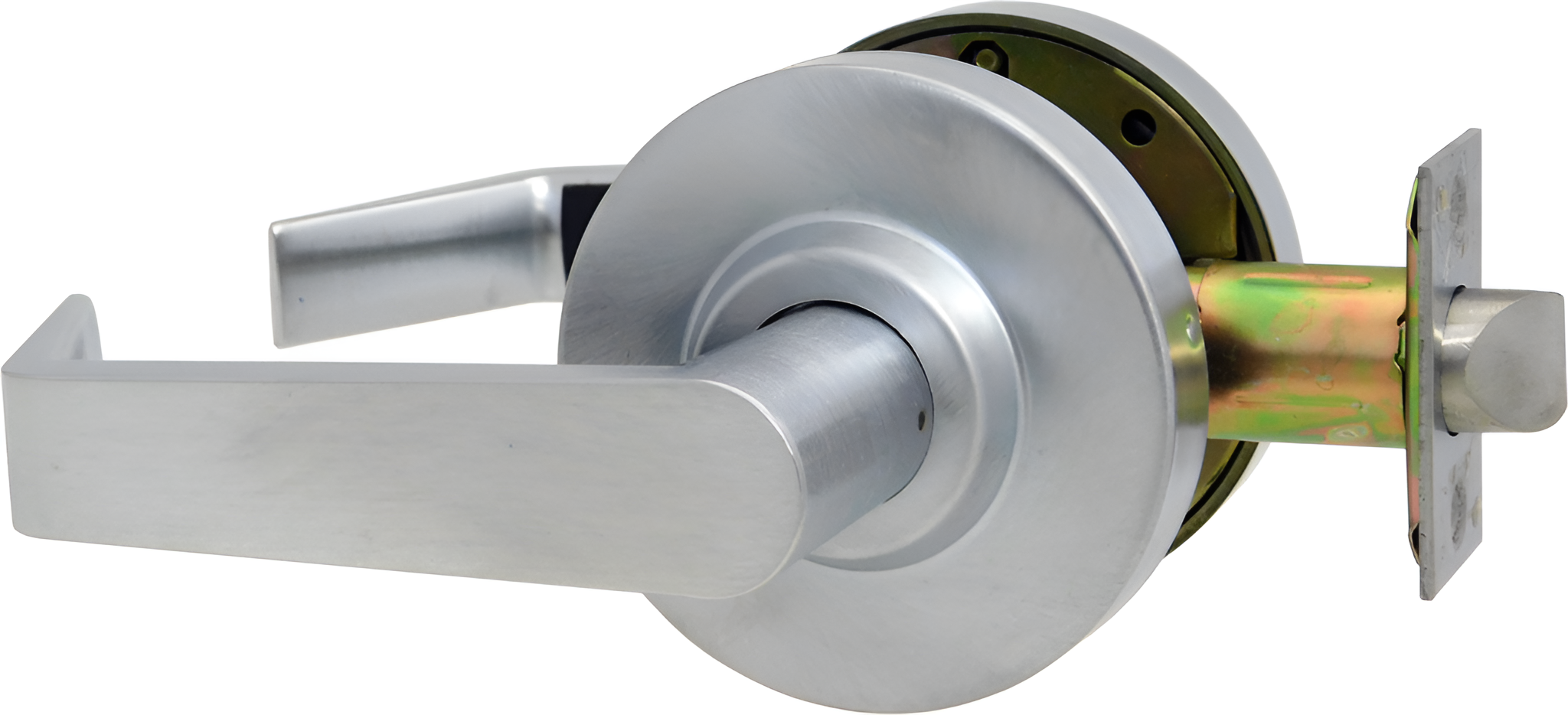

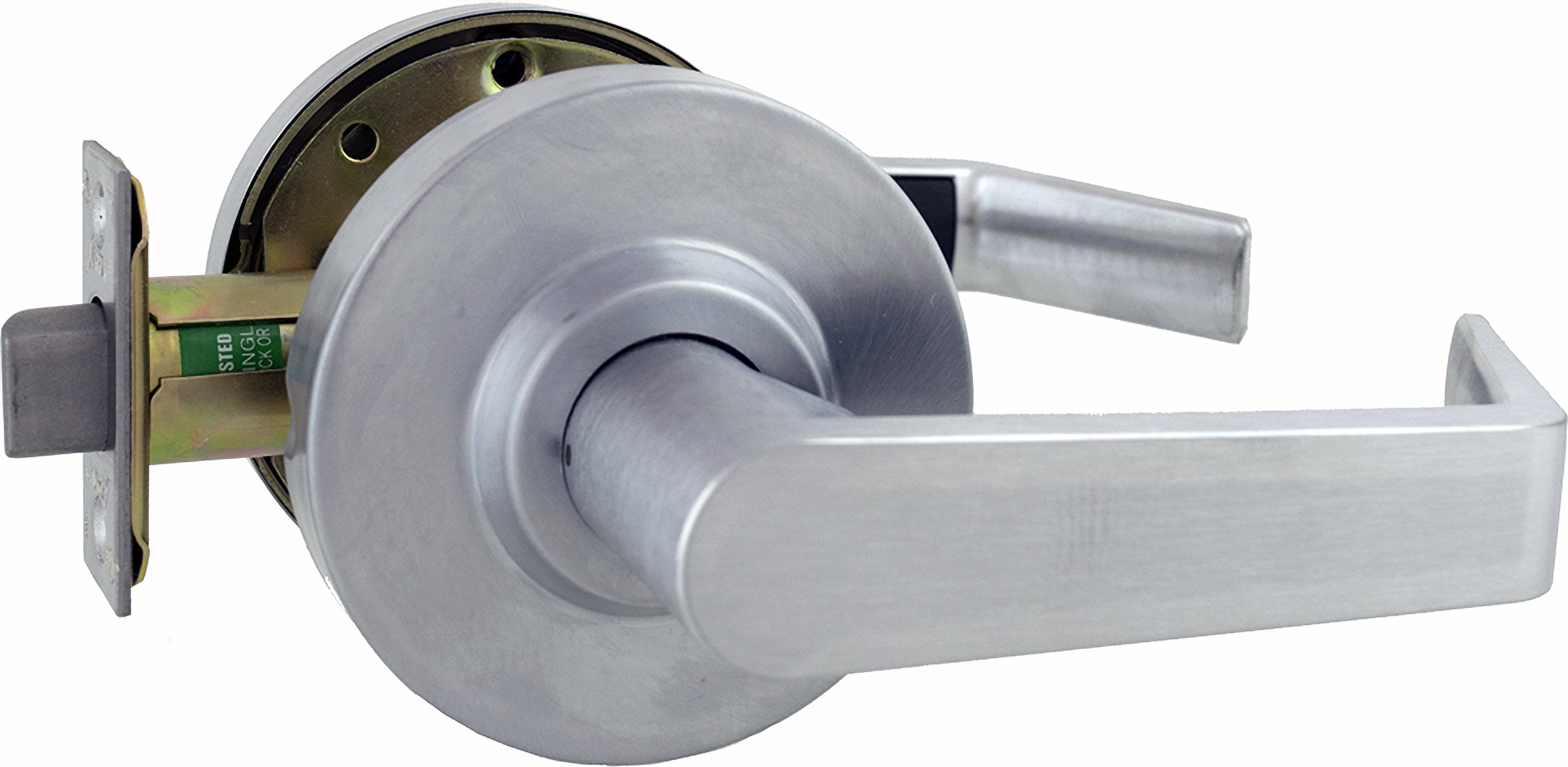

Arrow Lock RLX01SR26D-2 3/4 BS Passage Sierra Lever, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

Arrow Lock Company RLX01SR26D-2 3/4 BS Passage Sierra Lever offers a blend of durability and functionality ideal for commercial settings. This robust Grade 2 lockset features a freewheeling lever action that enhances resistance to wear and tear, ensuring long-lasting performance. Designed as part of the Arrow Professional Replacement Product line, the RLX Series boasts removable through bolts and various style options, making it a versatile choice for any upgrade or replacement needs. Certified to BHMA A156.2, Series 4000, and UL Listed, this lockset is built to meet high safety standards. It accommodates door thicknesses from 1-3/8" to 1-3/4", with a factory setting for 1-3/4". The lockset includes a 2-3/4" backset latch and a standard 6-pin solid brass cylinder, complete with two nickel-plated brass keys. Non-handed construction simplifies installation, allowing for flexible application on either side of the door. Available in a sleek satin chrome finish (626/US26D), the RLX01SR26D-2 is not just functional but also aesthetically pleasing. Backed by a 10-year warranty, this lockset is a reliable choice for ensuring secure passage in commercial spaces. With an average case weight of 26 lbs and sold in cases of six, it’s a sensible addition to any building professional’s toolkit.

Passage Sierra Lever, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
