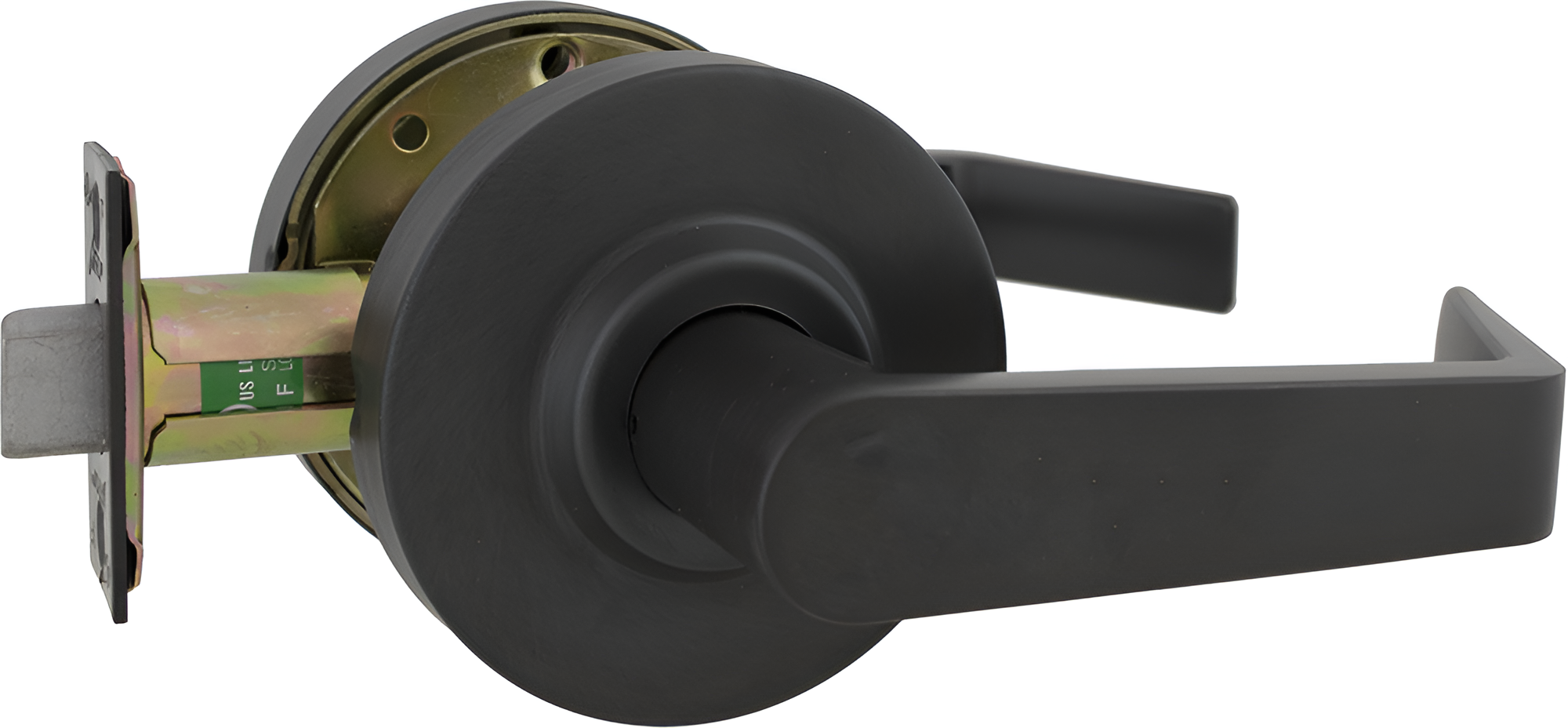

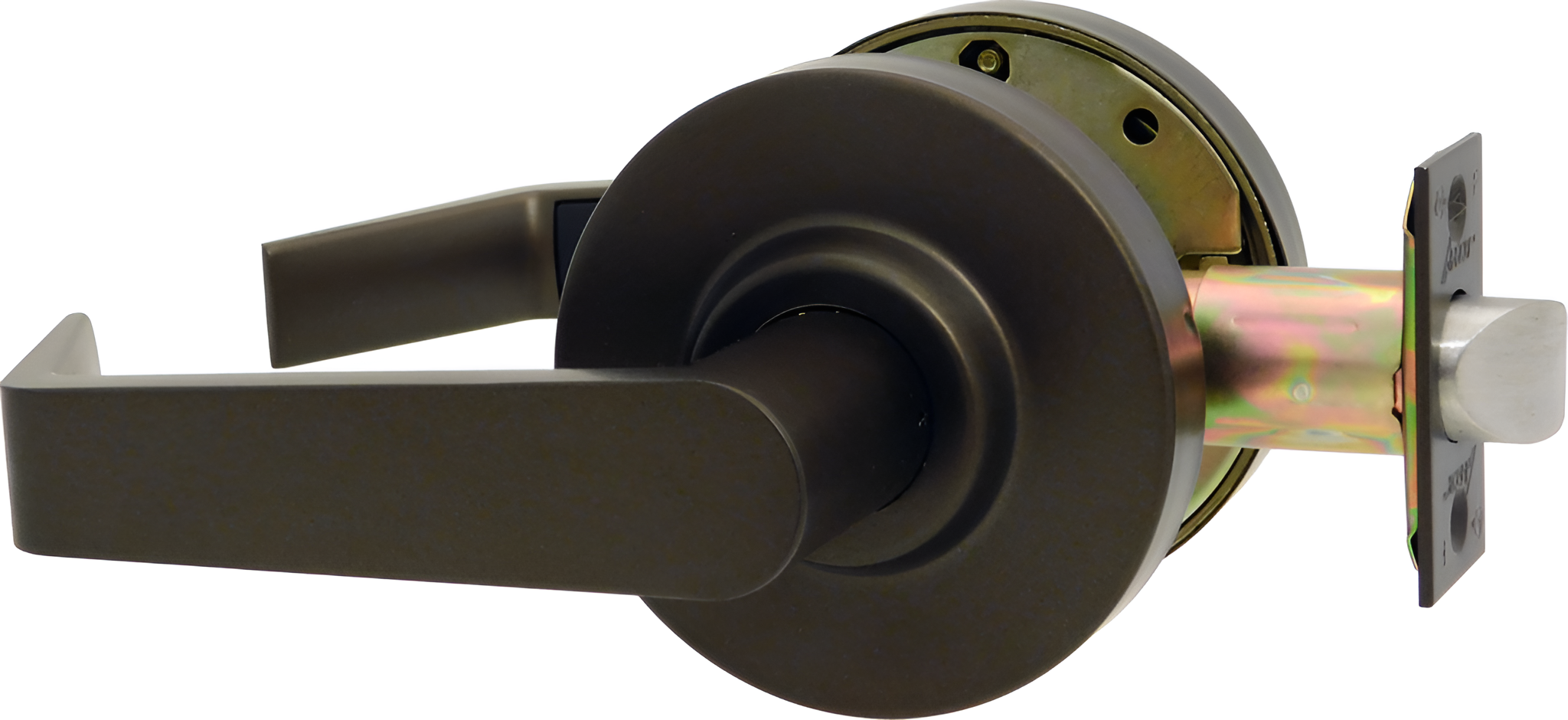

Arrow Lock RLX01SR613E-2 3/4 BS Passage Sierra Lever, 2-3/4in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

Arrow Lock Company RLX01SR613E-2 3/4 BS Passage Sierra Lever is a robust Grade 2 lockset designed for commercial applications. This model features a freewheeling lever action, enhancing its resistance to wear and abuse, making it an ideal choice for high-traffic areas. With a 2-3/4-inch backset and a stylish Sierra lever design, it combines functionality with an elegant appearance. Engineered to fit door thicknesses ranging from 1-3/8 inches to 1-3/4 inches, the RLX lockset is factory set for 1-3/4 inches, ensuring a secure fit in most standard applications. The included ANSI 1-1/4" x 4-7/8" strike plate complements the overall installation, while the standard 6-pin solid brass cylinder comes with two nickel-plated brass keys for added security. Certified to BHMA A156.2, Series 4000, and UL Listed, this lockset guarantees quality and durability. The non-handed design allows for easy installation on either side of the door. With a 10-year warranty backing its performance, the Arrow Lock Company RLX01SR613E-2 lever lockset is an excellent investment for professionals and knowledgeable homeowners seeking reliable security solutions. Choose from various finishes, including the dark oxide satin bronze, to match your space seamlessly.

Passage Sierra Lever, 2-3/4in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
