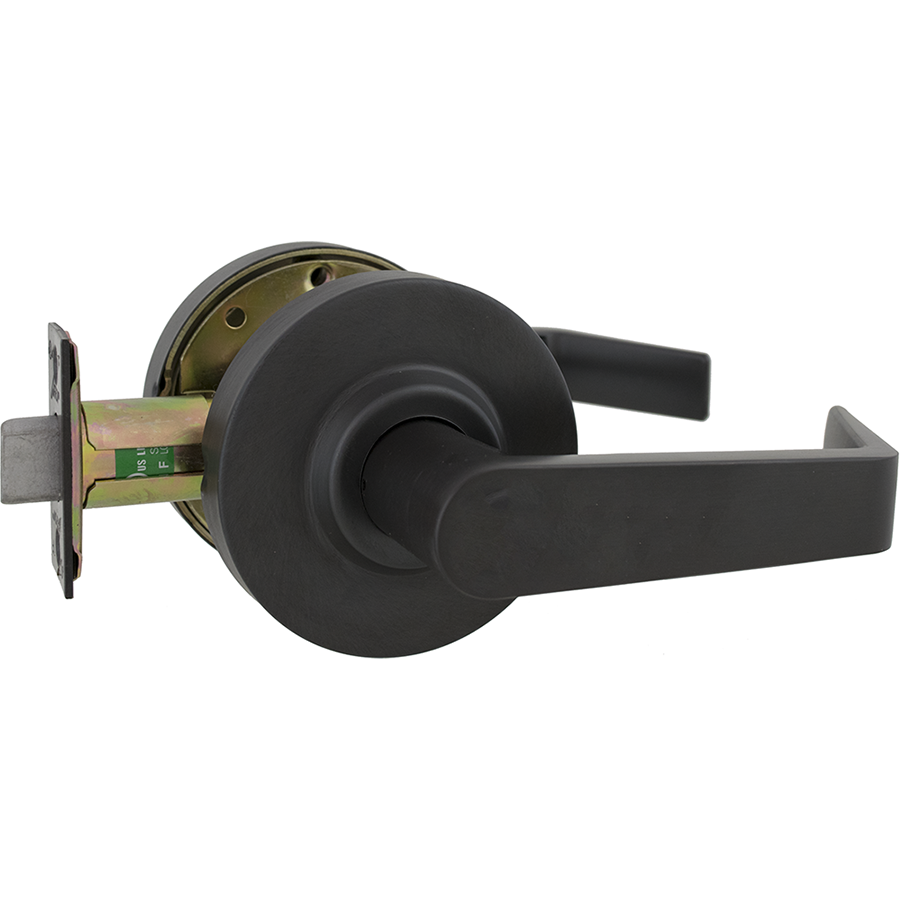

Arrow Lock RLX01SR613E-2 3/8 BS Passage Sierra Lever, 2-3/8in Backset, Grade 2, Oil Rubbed Bronze

Arrow Lock Company RLX01SR613E-2 3/8 BS KIT offers a robust and reliable solution for your passage door needs. Crafted with a Sierra lever design, this Grade 2 lockset combines style and functionality, making it ideal for both residential and commercial applications. The RLX series features a freewheeling lever action that enhances resistance to abuse, ensuring durability and longevity. Designed to fit door thicknesses ranging from 1-3/8" to 1-3/4", the RLX01SR613E-2 is factory set for standard 1-3/4" doors. The lockset includes a 2-3/4" backset latch and an ANSI strike plate measuring 1-1/4" x 4-7/8", providing an easy installation experience. Its 6-pin solid brass cylinder comes with two nickel-plated brass keys, ensuring security and peace of mind. The RLX01SR613E-2 is non-handed, allowing for versatile installation, and is UL Listed for safety and compliance with BHMA A156.2, Series 4000 standards. With a 10-year warranty, this lockset promises reliability and performance over time. Finished in an elegant oil-rubbed bronze, it seamlessly complements various décor styles while enhancing the security of your space. Choose the Arrow Lock Company RLX01SR613E-2 for a blend of elegance, security, and practical design.

KIT - Passage Sierra Lever, 2-3/8in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
