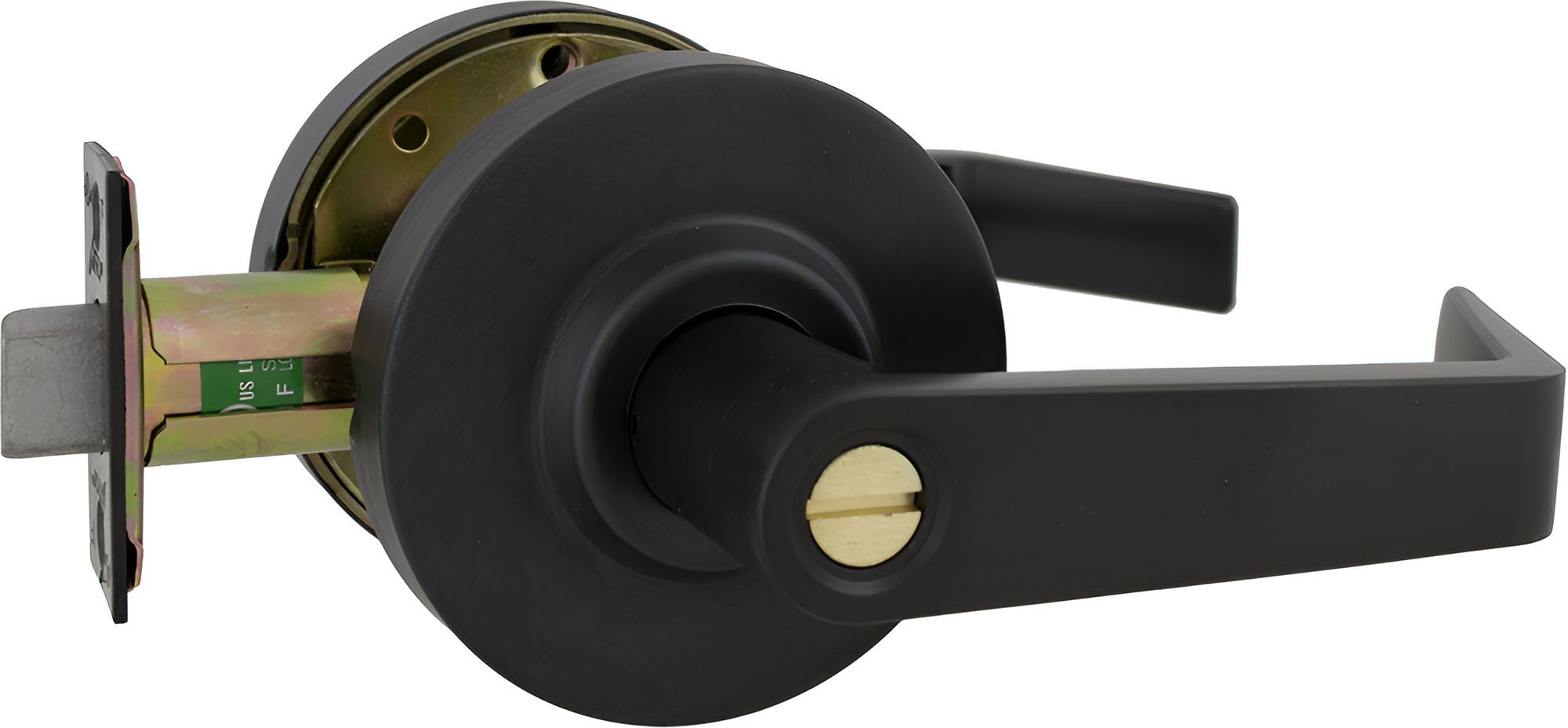

Arrow Lock RLX02SR-BSP-2 3/4 BS Privacy Rigid Sierra Lever, 2-3/4" Backset, Grade 2, Black Suede Finish

Arrow Lock Company RLX02SR-BSP-2 3/4 BS Privacy Rigid Sierra Lever combines robust security with sleek design, making it an ideal choice for commercial applications. This Grade 2 lockset features a freewheeling lever action that enhances abuse resistance, ensuring reliable performance even in high-traffic environments. Designed for doors with a thickness ranging from 1-3/8" to 1-3/4", the RLX is factory set for 1-3/4" doors, accommodating a wide range of installations. Equipped with a 2-3/4" backset and a standard 6-pin solid brass cylinder, this lockset comes with two nickel-plated brass keys for added convenience. Its non-handed design simplifies installation, making it suitable for any door configuration. The ANSI strike measures 1-1/4" x 4-7/8", providing compatibility with standard door frames. Finished in a sophisticated Black Suede Powder Coat, the RLX02SR-BSP-2 not only enhances security but also adds an elegant touch to your entryways. With a 10-year warranty, this lockset ensures long-lasting durability and peace of mind. Ideal for upgrading or replacing existing locksets, the RLX Series by Arrow Lock Company is a smart investment for professionals and homeowners seeking quality and reliability.

Privacy Rigid Sierra Lever, 2-3/4in Backset, Grade 2, 622/US19/BSP Black Suede Powder Coat

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
