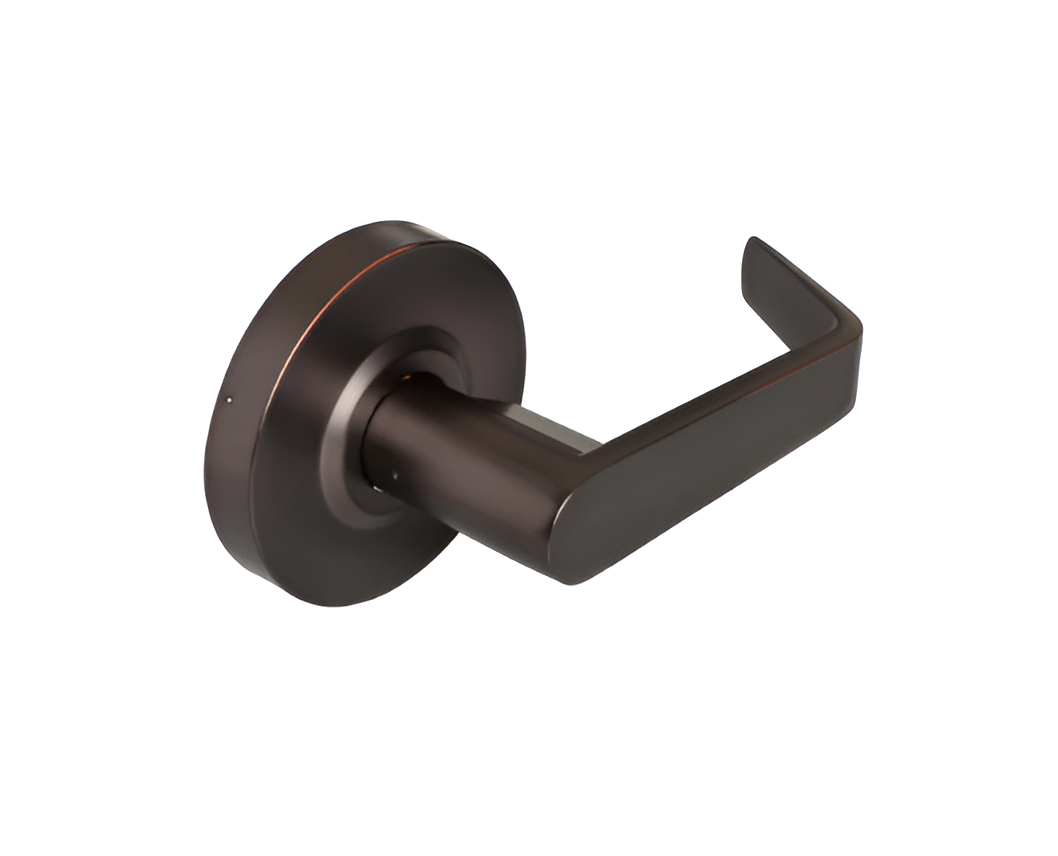

Arrow Lock RLX08SR-613E Single Dummy Trim Sierra, Grade 2, 613E/US10BE Dark Oxidized Satin Bronze

Arrow Lock Company RLX08SR-613E Single Dummy Trim Sierra offers a robust solution for enhancing your door's functionality and aesthetics. This Grade 2 lockset features a freewheeling lever operation, designed specifically for abuse resistance, making it suitable for commercial applications where durability is essential. The RLX Series is engineered with removable through bolts, providing versatility in installation. It accommodates door thicknesses from 1-3/8" to 1-3/4", with a factory setting for 1-3/4". The ANSI 1-1/4" x 4-7/8" strike plate and a 2-3/4" backset latch ensure compatibility with a wide range of door configurations. The solid brass cylinder includes a 6-pin design and comes with two nickel-plated brass keys, ensuring reliable security performance. This non-handed trim is ideal for use as a pull or to match active trim, offering a clean, stylish appearance in the Dark Oxidized Satin Bronze finish (613E/US10BE). The RLX08SR-613E is backed by a 10-year warranty, providing peace of mind alongside its UL Listed certification. Whether you are upgrading existing hardware or installing new locks, the Arrow Lock Company RLX08SR-613E Single Dummy Trim Sierra is an excellent choice, combining functionality, security, and timeless design.

Single Dummy Trim Sierra, Grade 2, 613E/US10BE Dark Oxidized Satin Bronze

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom

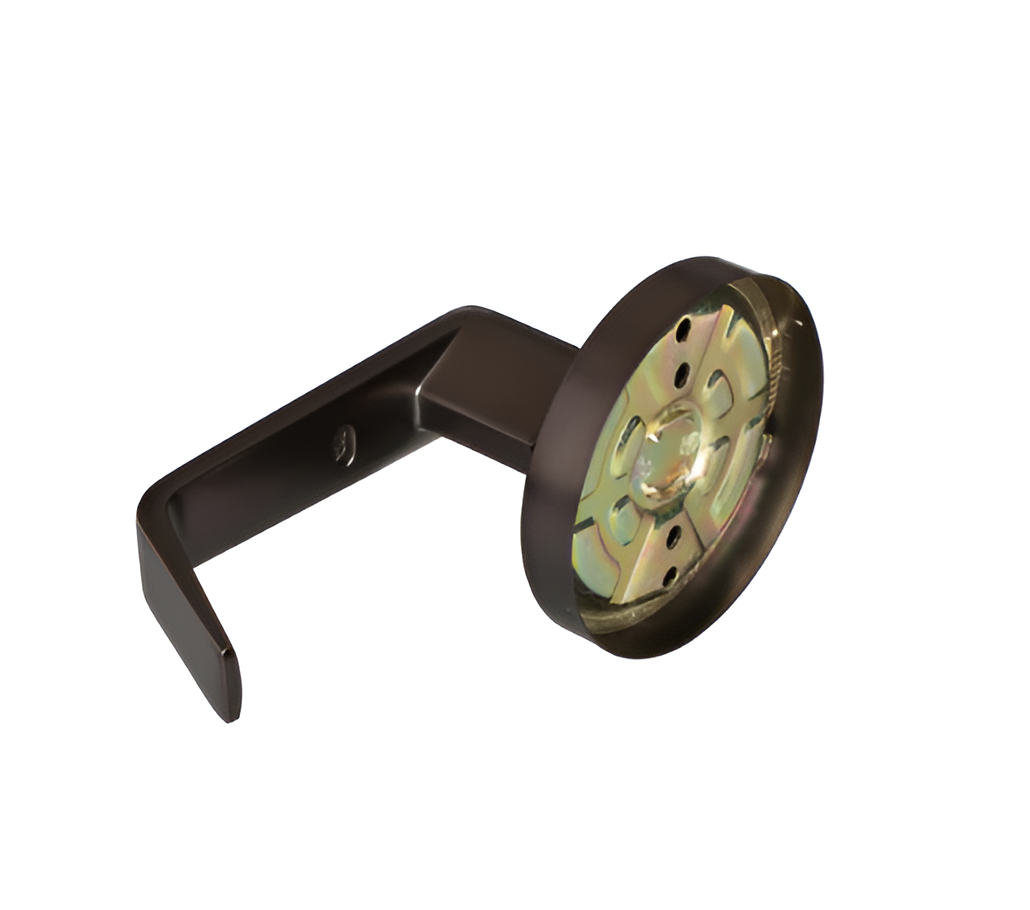

• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
