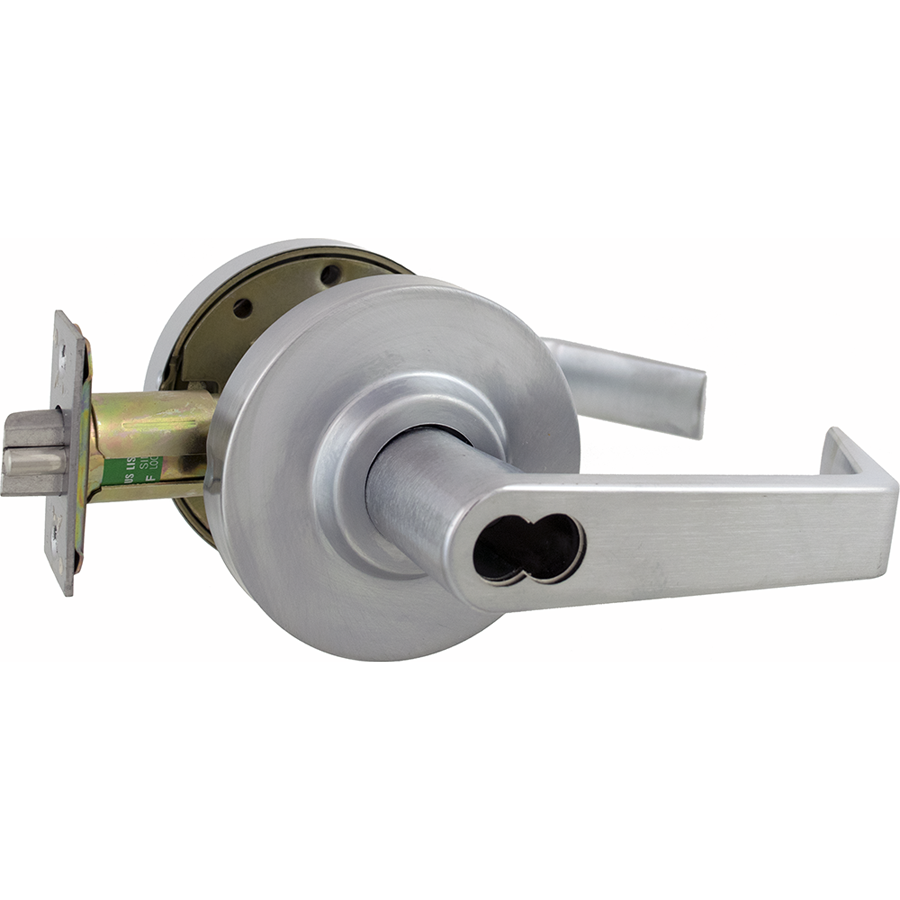

Arrow Lock RLX11SR26D-IC-2 3/4 BS Sierra Lever Entry Lock, SFIC Less Core, 2-3/4" Backset, Grade 2, Satin Chrome

Arrow Lock Company RLX11SR26D-IC-2 3/4 BS Entry Rigid Sierra Lever offers an exceptional blend of security and design, making it an ideal choice for commercial applications. This Grade 2 lockset is both robust and reliable, featuring a freewheeling lever operation that enhances resistance to abuse and wear. Crafted to accommodate door thicknesses from 1-3/8" to 1-3/4", it is factory set for 1-3/4", ensuring a snug fit for a variety of installation environments. The RLX11SR26D-IC-2 is designed with functionality in mind, featuring a 2-3/4" backset and a standard 6-pin solid brass cylinder. It supports interchangeable cores (IC prep available) and comes with two nickel-plated brass keys. The lockset's ANSI strike size of 1-1/4" x 4-7/8" and square corner faceplate provide a streamlined look while ensuring functionality. With a satin chrome finish that combines durability and aesthetic appeal, the RLX Series is BHMA A156.2 certified, UL listed, and backed by a 10-year warranty, reinforcing its quality and reliability. This non-handed lever design ensures versatility for various door configurations. Choose the Arrow Lock Company RLX11SR26D-IC-2 for a dependable locking solution that meets the demands of modern security needs.

Entry Rigid Sierra Lever, SFIC Less Core, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
