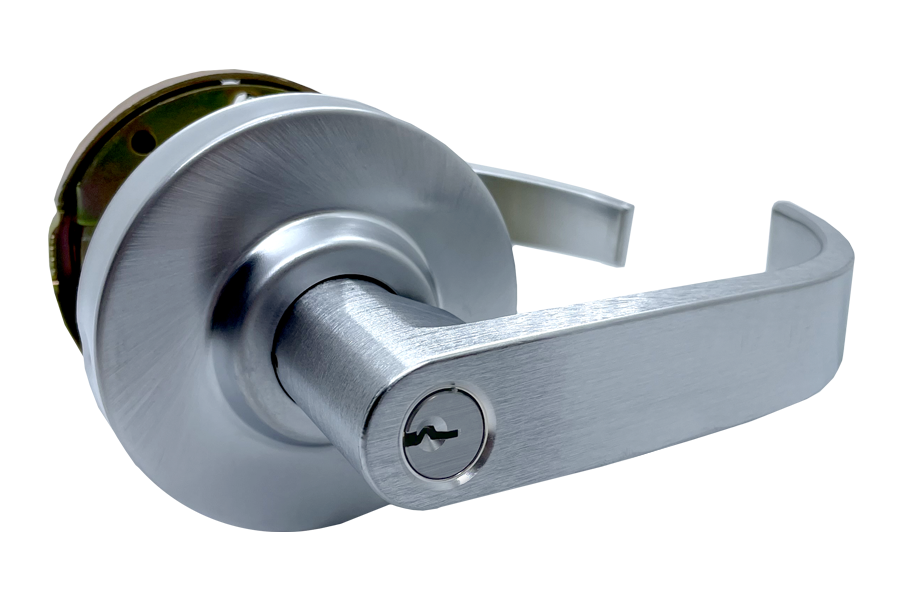

Arrow Lock RLX12BRR26D-CS-2 3/4 BS Schlage Broadway Lever, C Keyway, 2-3/4in Backset, Grade 2, Satin Chrome

Arrow Lock Company RLX12BRR26D-CS-2 3/4 BS Storeroom Rigid Broadway Lever offers a robust, reliable solution for commercial applications. Designed with a Grade 2 certification (BHMA A156.2, Series 4000, UL Listed), this lockset ensures safety and durability, making it an excellent choice for storeroom environments. The freewheeling lever action enhances resistance to wear and tear, ensuring longevity and ease of use. This lockset is compatible with doors ranging from 1-3/8" to 1-3/4" thick, and it comes factory set for 1-3/4" doors. The 2-3/4" backset and ANSI-standard strike plate (1-1/4" x 4-7/8") provide a secure fit and reliable performance. Its 6-pin solid brass cylinder includes two nickel-plated brass keys, with an option for interchangeable core preparation. Non-handed in design, the RLX12BRR26D allows for versatile installation on various door orientations. With a ten-year warranty, this lockset not only meets but exceeds expectations for quality and security. Available in a sleek satin chrome finish (626/US26D), it complements a wide range of architectural styles while maintaining a professional appearance. Ideal for building professionals and knowledgeable homeowners alike, the Arrow Lock Company RLX12BRR26D is a trusted choice for enhancing security in commercial spaces.

Storeroom Rigid Broadway Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
