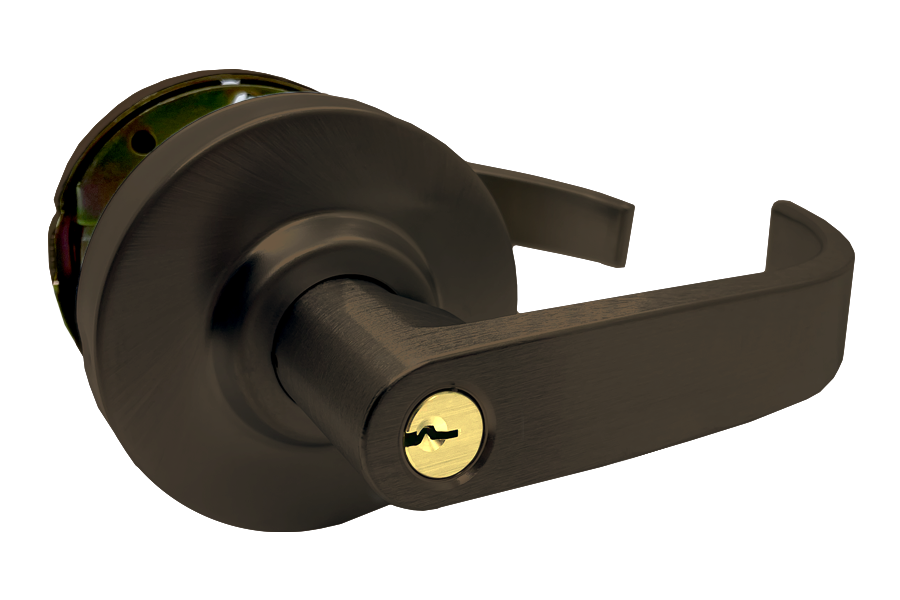

Arrow Lock RLX12BRR613E-CS-2 3/4 BS Schlage Broadway Lever, C Keyway, 2-3/4" Backset, Grade 2, Oil Rubbed Bronze

Arrow Lock Company RLX12BRR613E-CS-2 3/4 BS Storeroom Rigid Broadway Lever combines security and functionality in a sleek, durable design. This Grade 2 lockset is designed for commercial applications, featuring a freewheeling lever operation that enhances abuse resistance, making it ideal for high-traffic areas. Crafted to fit doors ranging from 1-3/8" to 1-3/4" thick, the RLX series provides flexibility with its factory setting for 1-3/4" doors. The ANSI strike measures 1-1/4" x 4-7/8", ensuring compatibility with standard door frames. With a 2-3/4" backset and a 1-1/8" front latch, this lockset delivers reliable performance. The cylinder is a standard 6-pin solid brass design, complemented by two nickel-plated brass keys, and is also available with IC prep options. Non-handed for easy installation, the RLX12BRR613E-CS-2 lockset is UL Listed and certified to BHMA A156.2, Series 4000 standards, ensuring it meets rigorous safety and durability requirements. Available in a dark oxide satin bronze finish, this lockset not only provides security but also adds a touch of elegance to any door. With a 10-year warranty, you can trust in the long-lasting quality of Arrow Lock products.

Storeroom Rigid Broadway Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
