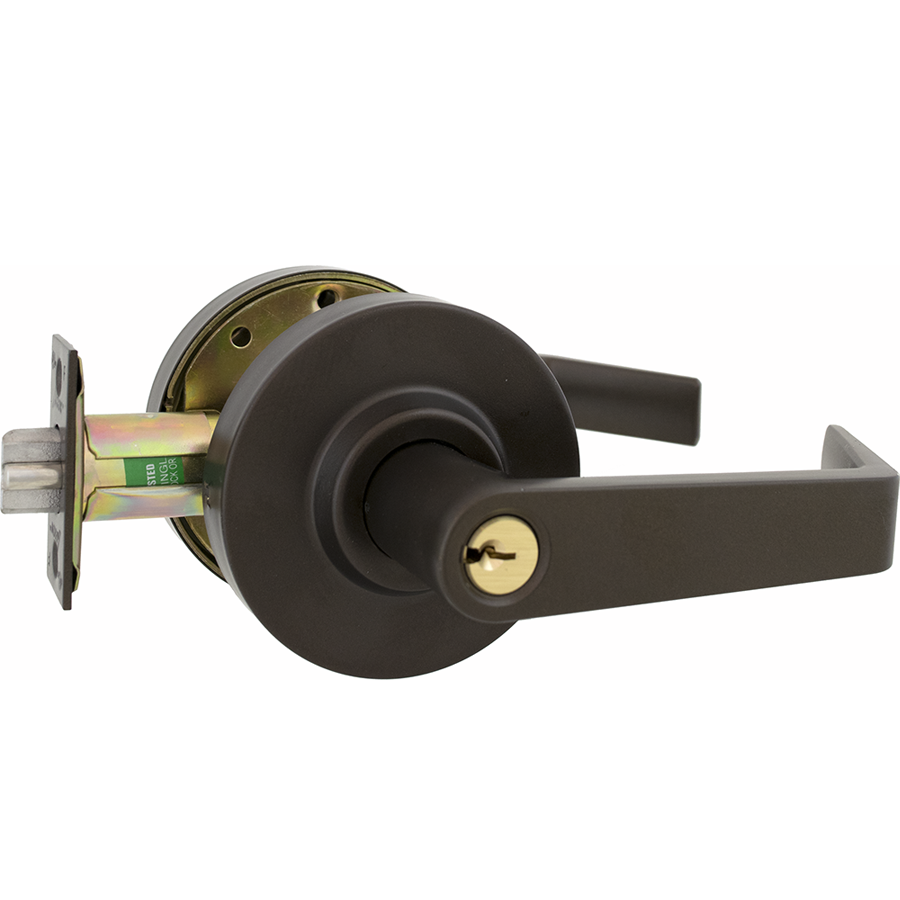

Arrow Lock RLX12SR613E-CS-2 3/4 BS Sierra Lever Storeroom Lock, Schlage C Keyway, 2-3/4in Backset, Oil Rubbed Bronze

Arrow Lock Company RLX12SR613E-CS-2 3/4 BS Storeroom Rigid Sierra Lever is a robust cylindrical lockset designed to meet the demanding requirements of commercial applications. Built to Grade 2 standards, this lockset features a freewheeling lever action that enhances its resistance to wear and abuse, ensuring long-lasting performance. This lockset accommodates door thicknesses ranging from 1-3/8" to 1-3/4," making it versatile for various installation scenarios. With a 2-3/4" backset and an ANSI strike size of 1-1/4" x 4-7/8", the RLX12SR is engineered for seamless integration into existing hardware. The solid brass, 6-pin cylinder comes with two nickel-plated brass keys, providing reliable security with the option for interchangeable core prep. The oil-rubbed bronze finish (613E/US10BE) adds a touch of elegance while offering durability against corrosion. This non-handed lockset simplifies installation without the need for specific handing considerations. Backed by a 10-year warranty, the RLX12SR ensures peace of mind for both building professionals and knowledgeable homeowners alike. In addition to its practical features, this lockset is part of the versatile RLX Series, which includes various designs and functions to cater to diverse security needs. Upgrade your security with Arrow Lock Company's RLX12SR613E-CS-2 storeroom lever lockset today.

Storeroom Rigid Sierra Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
