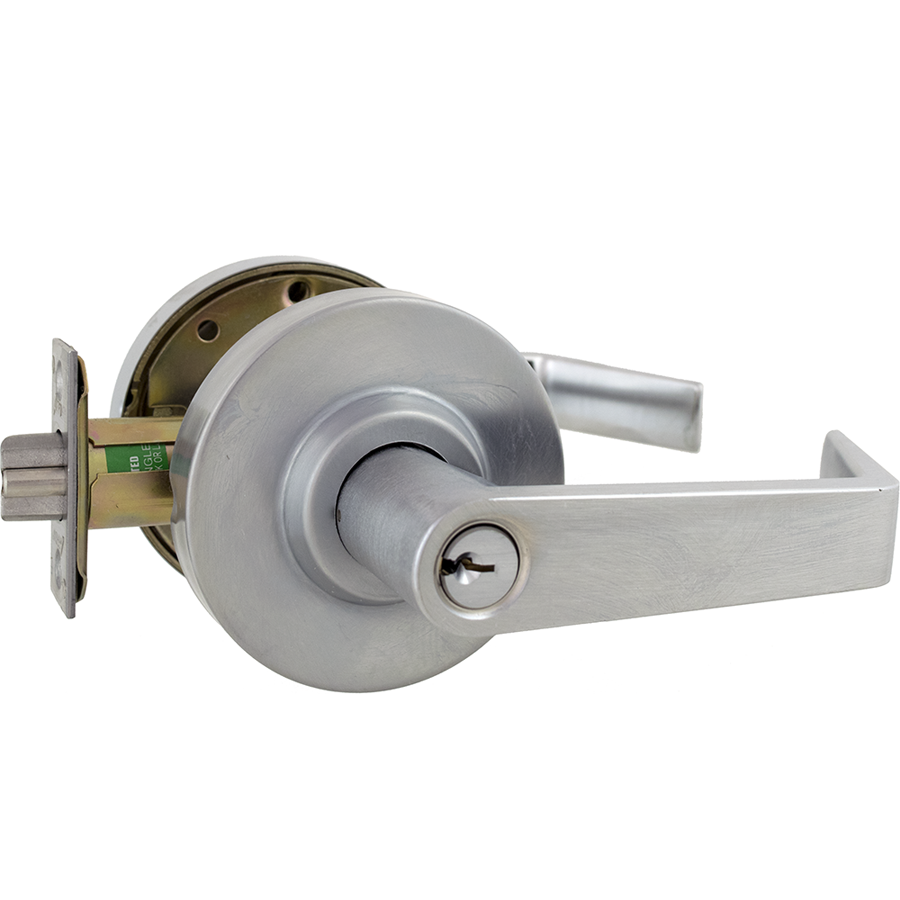

Arrow Lock RLX17SR26D-CS-2 3/4 BS Sierra Lever Classroom Lock, Schlage C Keyway, 2-3/4" Backset, Satin Chrome

Arrow Lock Company RLX17SR26D-CS-2 3/4 BS Classroom Rigid Sierra Lever offers robust security and reliability tailored for commercial applications. This Grade 2 lockset features a freewheeling lever action, ensuring enhanced resistance to wear and tear while maintaining ease of use. The lock is part of the RLX Series, designed with removable through bolts and versatile functionality to accommodate various settings. With a 2-3/4 inch backset and compatibility with door thicknesses ranging from 1-3/8 inches to 1-3/4 inches, this lockset is factory set for 1-3/4 inches, making it an ideal choice for standard commercial doors. The solid brass, 6-pin cylinder comes with two nickel-plated brass keys, and IC preparation is available for added convenience. Certified by BHMA A156.2, Series 4000, and UL Listed, the RLX17SR26D-CS-2 ensures peace of mind through proven performance. The lock's satin chrome finish not only provides a sleek aesthetic but also offers durability for high-traffic areas. With a 10-year warranty, you can trust in its longevity and reliability. Additionally, the non-handed design allows for flexibility in installation, ensuring that this lockset is a practical solution for any classroom setting.

Classroom Rigid Sierra Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
