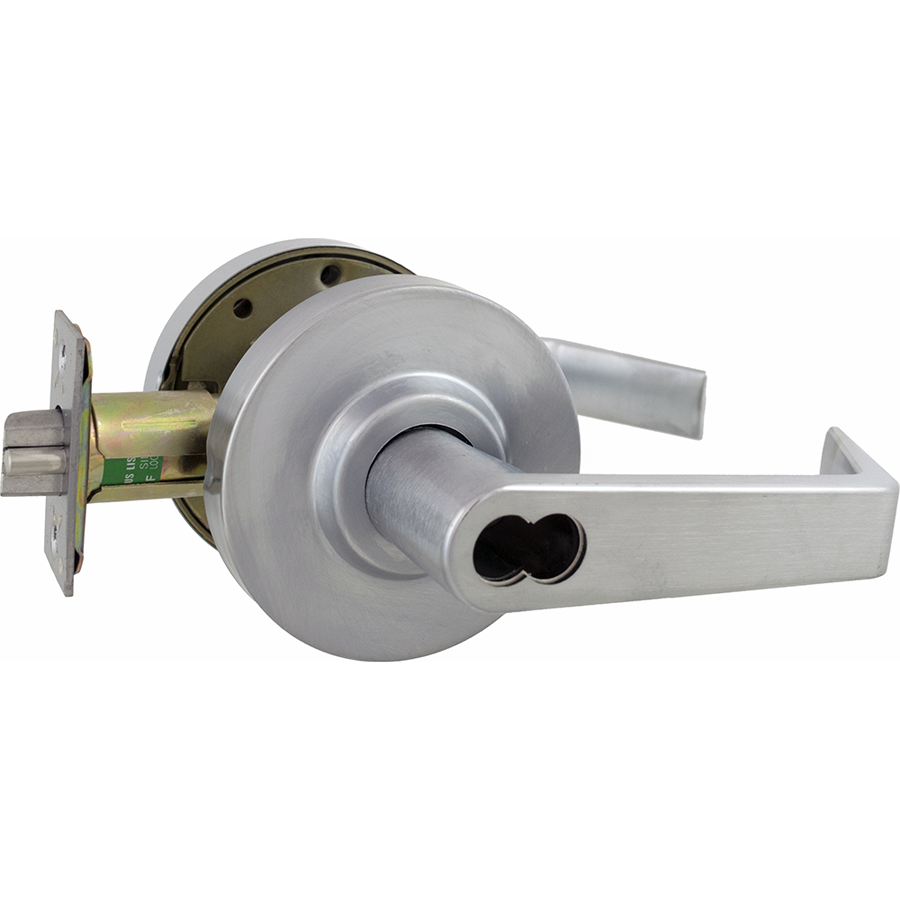

Arrow Lock RLX17SR26D-IC-2 3/4 BS Sierra Lever Classroom Lock, SFIC Less Core, 2-3/4" Backset, Grade 2, Satin Chrome

Arrow Lock Company RLX17SR26D-IC-2 3/4 BS Classroom Rigid Sierra Lever combines durability with functionality, making it a prime choice for commercial applications. This Grade 2 lockset features a freewheeling lever action designed to withstand the rigors of daily use, enhancing its resistance to abuse while ensuring smooth operation. The RLX Series offers a non-handed design that fits doors ranging from 1-3/8" to 1-3/4" thick, factory set for 1-3/4". It comes with a standard 2-3/4" backset and a 6-pin solid brass cylinder, providing security and reliability. The lock is UL Listed and meets BHMA A156.2, Series 4000 certification, ensuring compliance with rigorous industry standards. Included in the design is a satin chrome finish that not only enhances aesthetic appeal but also provides added corrosion resistance. The latch features a square corner design with a throw of 1/2", making it robust and reliable. With a 10-year warranty, you can trust the durability of this lock in high-traffic areas. Ideal for classrooms and other secure environments, the RLX17SR26D-IC-2 offers peace of mind without compromising style or performance. Choose this lockset for a blend of quality, security, and functionality tailored for any commercial setting.

Classroom Rigid Sierra Lever, SFIC Less Core, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
