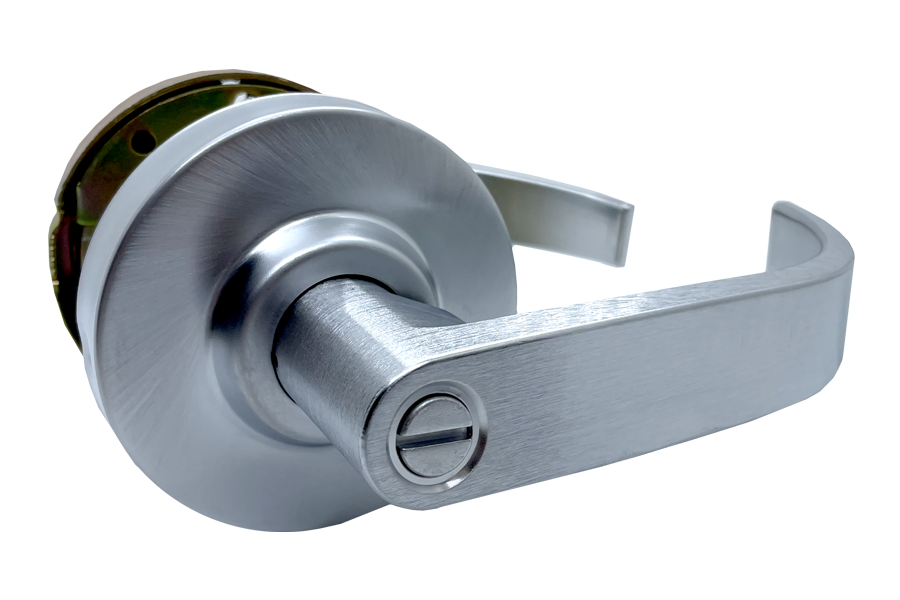

Arrow Lock RLX72BRR26D-2 3/4 BS Privacy Clutched Broadway Lever, 2-3/4" Backset, Grade 2, Satin Chrome

Arrow Lock Company RLX72BRR26D-2 3/4 BS Privacy Clutched Broadway Lever combines robust security with modern design, making it an ideal choice for commercial applications. This Grade 2 lockset features a freewheeling lever action that enhances abuse resistance, perfect for high-traffic areas. Designed to fit door thicknesses ranging from 1-3/8" to 1-3/4", it comes factory set for 1-3/4" doors, ensuring a snug fit. The RLX72BRR26D-2 is UL Listed and certified to BHMA A156.2, Series 4000, which speaks to its durability and reliability. With a 2-3/4" backset and a standard 6-pin solid brass cylinder, it includes two nickel-plated brass keys, providing effective security without sacrificing convenience. Non-handed construction allows for easy installation on both left and right-hand doors. Available in a sleek Satin Chrome finish (626/US26D), this lockset not only elevates the aesthetic of any commercial space but also promises longevity, backed by a ten-year warranty. The RLX series offers a variety of functions, including privacy, making it a versatile solution for offices, classrooms, and more. With an average case weight of 26 lbs, this lockset is packaged at six per case for efficient shipping. Upgrade your locking solutions with the RLX72BRR26D-2 today.

Privacy Clutched Broadway Lever, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
