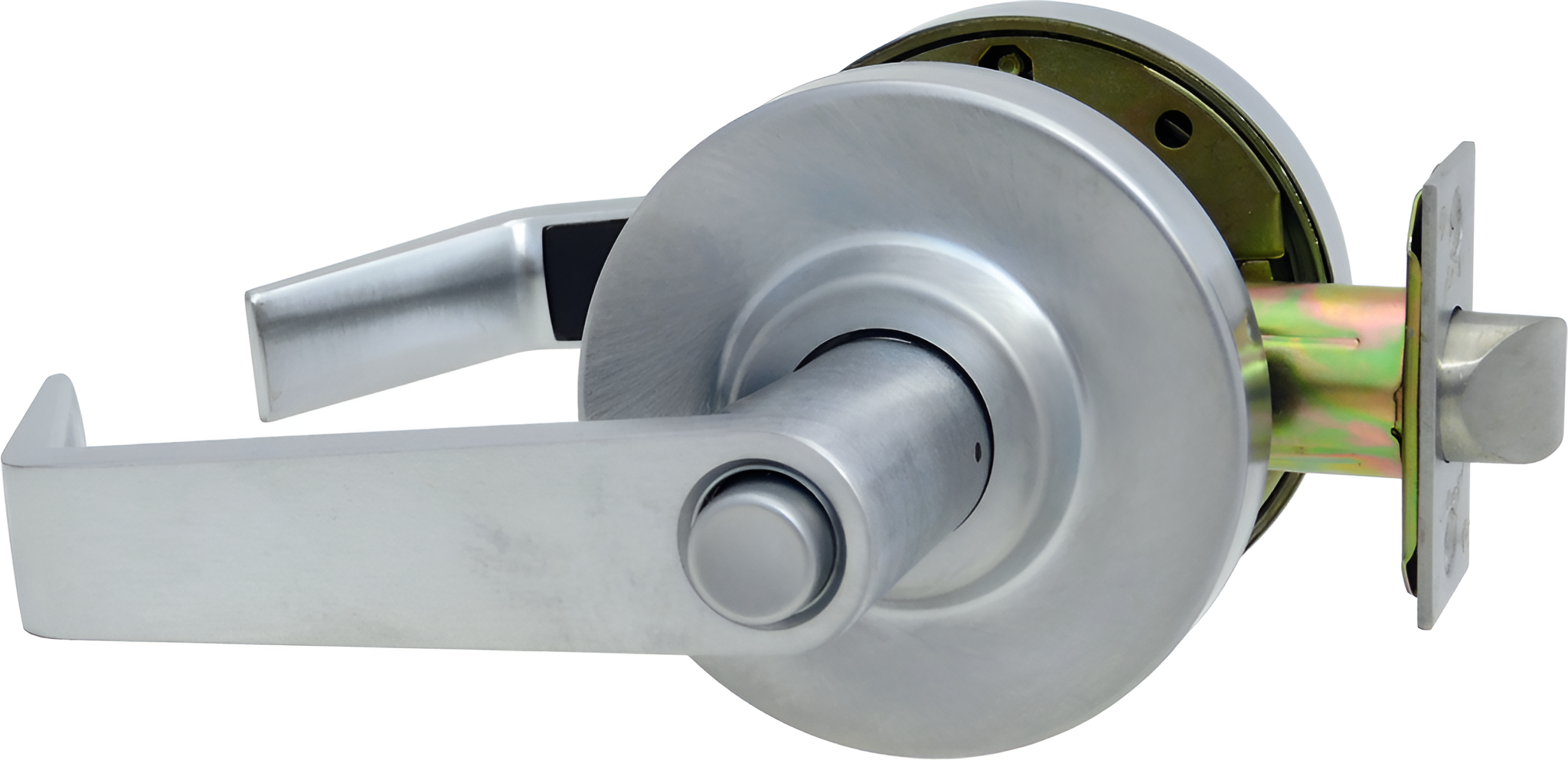

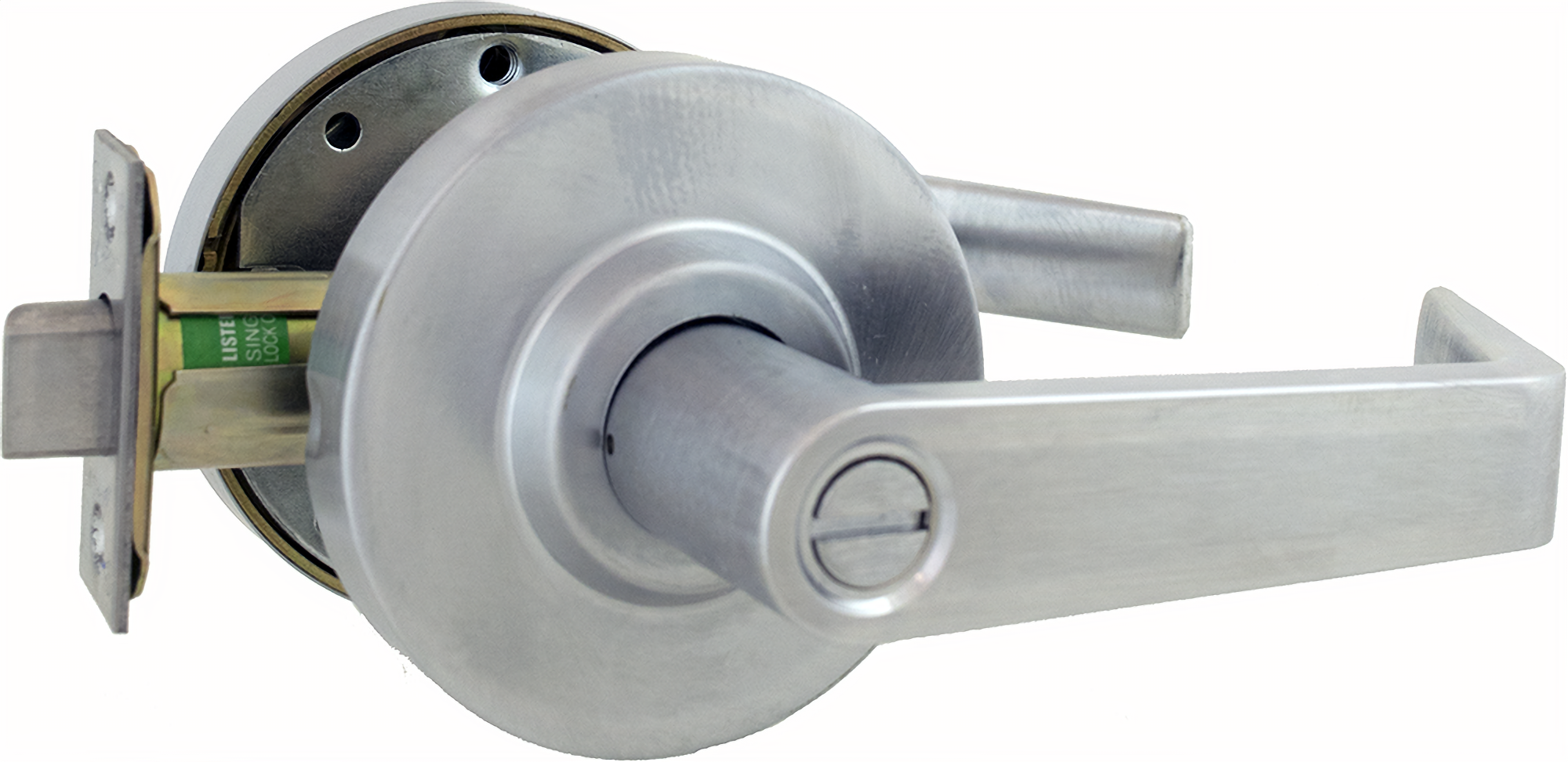

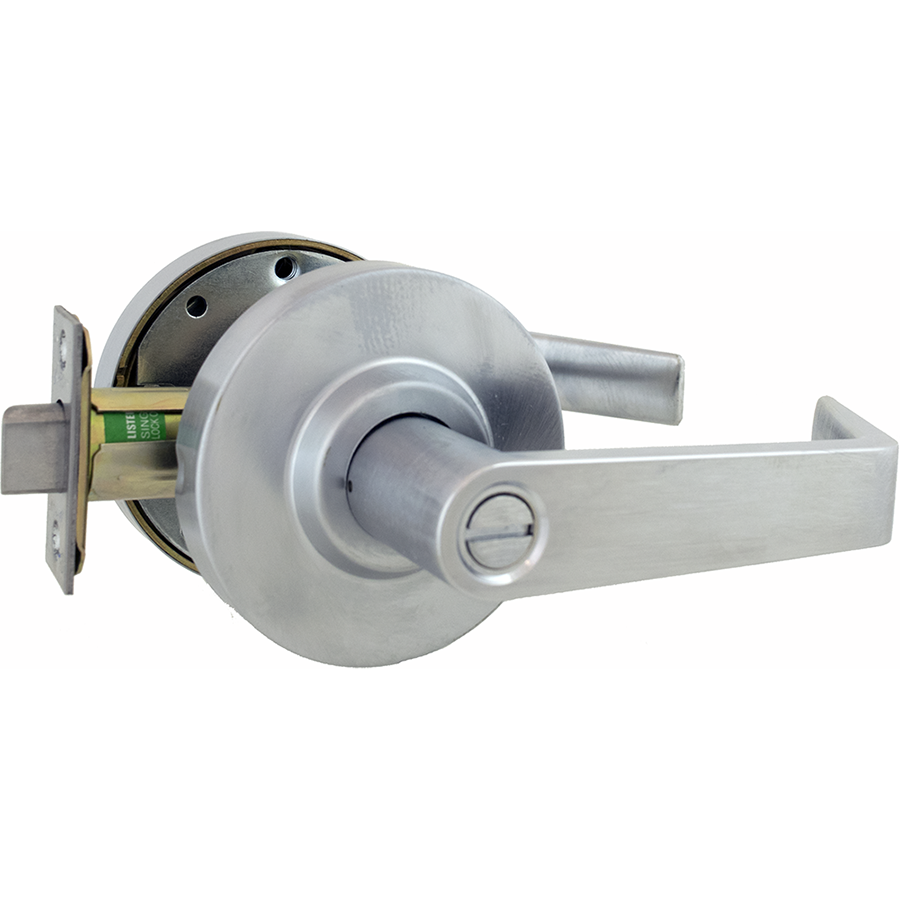

Arrow Lock RLX72SR26D-2 3/8 BS Sierra Privacy Lever, 2-3/8" Backset, Grade 2, Satin Chrome 626/US26D

Arrow Lock Company RLX72SR26D-2 3/8 BS KIT features a stylish Privacy Clutched Sierra Lever, designed for both aesthetic appeal and robust functionality. This Grade 2 lockset is meticulously engineered to withstand the rigors of commercial applications, making it an ideal choice for those looking to enhance security without compromising on style. With a backset of 2-3/8 inches, the RLX Series is compatible with door thicknesses ranging from 1-3/8 inches to 1-3/4 inches, ensuring a versatile fit for various door types. The freewheeling lever action enhances resistance to wear and tear, providing reliable performance over time. Each lockset comes with a standard 6-pin solid brass cylinder and includes two nickel-plated brass keys. Furthermore, the RLX72SR26D-2 boasts ANSI strike dimensions of 1-1/4 inches by 4-7/8 inches and utilizes a square corner latch bolt face type for smooth operation. Non-handed design allows for easy installation on either side of the door. Backed by a 10-year warranty, this lockset is BHMA A156.2 certified, UL Listed, and available in a sleek Satin Chrome finish. Upgrade your security with confidence by choosing the Arrow Lock Company RLX72SR26D-2 for your next project.

KIT - Privacy Clutched Sierra Lever, 2-3/8in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
