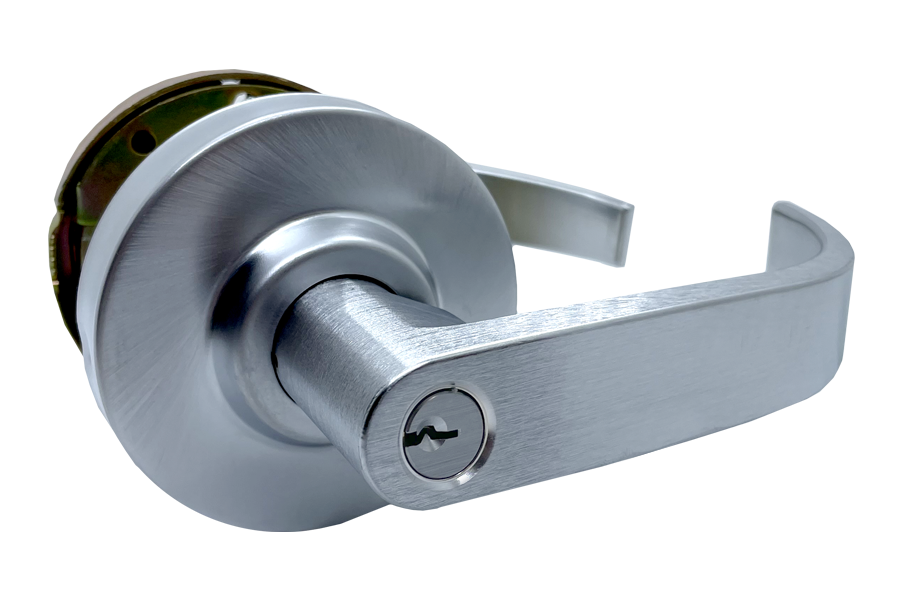

Arrow Lock RLX81BRR26D-CS-2 3/4 BS Schlage Entry Clutched Broadway Lever, C Keyway, 2-3/4in Backset, Satin Chrome

Arrow Lock Company RLX81BRR26D-CS-2 3/4 BS Entry Clutched Broadway Lever offers a dependable solution for commercial applications. This Grade 2 lockset is designed with a freewheeling lever action, enhancing resistance to wear and abuse, making it ideal for high-traffic areas. With its satin chrome finish (626/US26D), it not only delivers durability but also complements a variety of architectural styles. This lockset accommodates door thicknesses between 1-3/8" to 1-3/4", factory set for 1-3/4", and features a 2-3/4" backset latch with a 1-1/8" front. The RLX81 is equipped with a 6-pin solid brass cylinder, ensuring reliable security with two nickel-plated brass keys included. It comes non-handed, allowing for versatile installation. Certified to BHMA A156.2, Series 4000, and UL Listed, this product guarantees quality and performance. Each case contains six units, with an average weight of 26 lbs, making it suitable for both replacement and upgrades. Supported by a 10-year warranty, the RLX81BRR26D-CS-2 stands out as a robust, reliable choice for enhancing security in commercial environments while ensuring ease of use.

Entry Clutched Broadway Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
