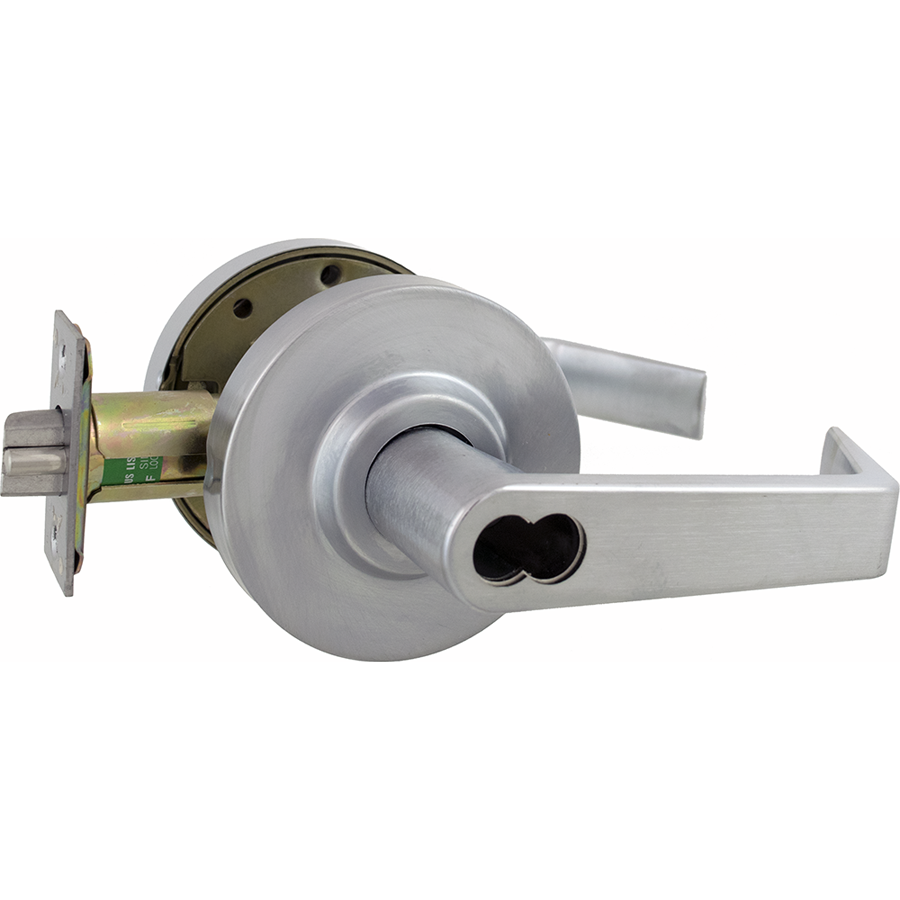

Arrow Lock RLX81SR26D-IC-2 3/4 BS Sierra Lever Entry Lock, SFIC Less Core, 2-3/4in Backset, Grade 2, Satin Chrome

Arrow Lock Company RLX81SR26D-IC-2 3/4 BS Entry Clutched Sierra Lever combines durability and functionality in a Grade 2 lockset designed for commercial use. With its robust construction and freewheeling lever action, this lockset offers enhanced abuse resistance, making it an ideal choice for high-traffic environments. This model features a satin chrome finish (626/US26D), adding a touch of sophistication while ensuring longevity. It is equipped with a 2-3/4" backset and is compatible with door thicknesses ranging from 1-3/8" to 1-3/4", factory set for 1-3/4". The RLX81SR lever is non-handed, providing flexibility in installation. Certified by BHMA A156.2, the RLX Series guarantees reliability with its UL listing. The lockset includes a 6-pin solid brass cylinder, accompanied by two nickel-plated brass keys, ensuring secure access control. With removable through bolts for easy replacement and a warranty of 10 years, this product is built to last. Whether you're upgrading existing hardware or outfitting a new space, the Arrow Lock Company RLX81SR26D-IC-2 is a dependable choice for entrance or office applications, merging style with security seamlessly.

Entry Clutched Sierra Lever, SFIC Less Core, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
