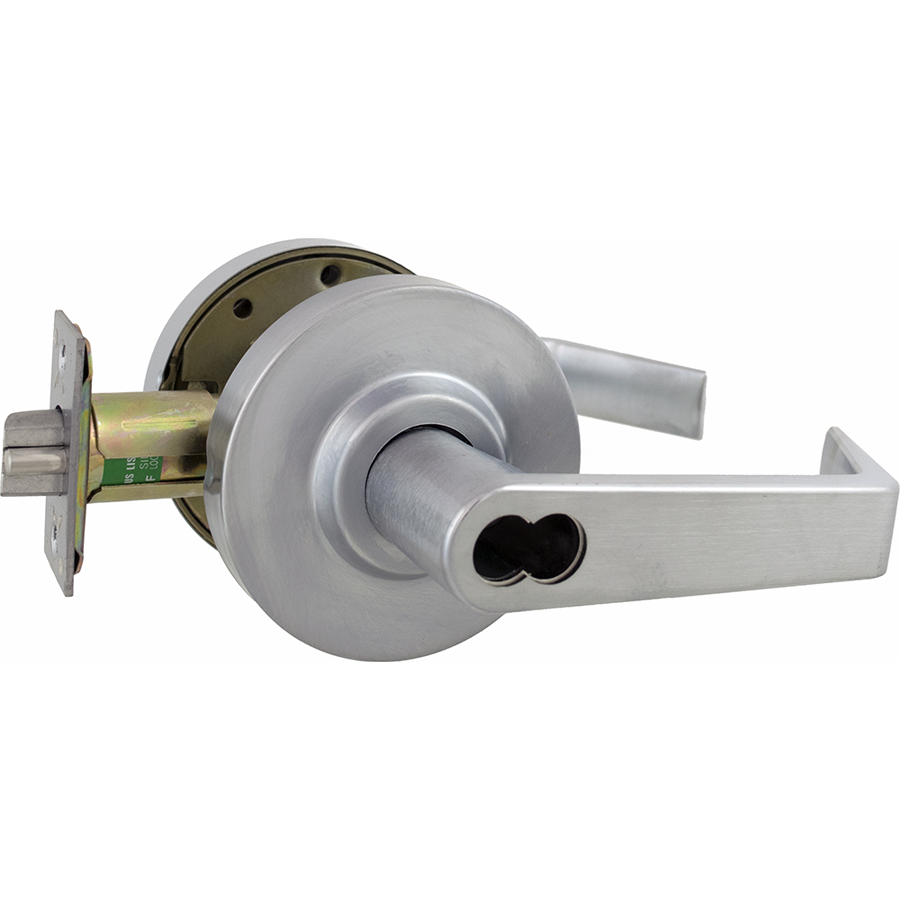

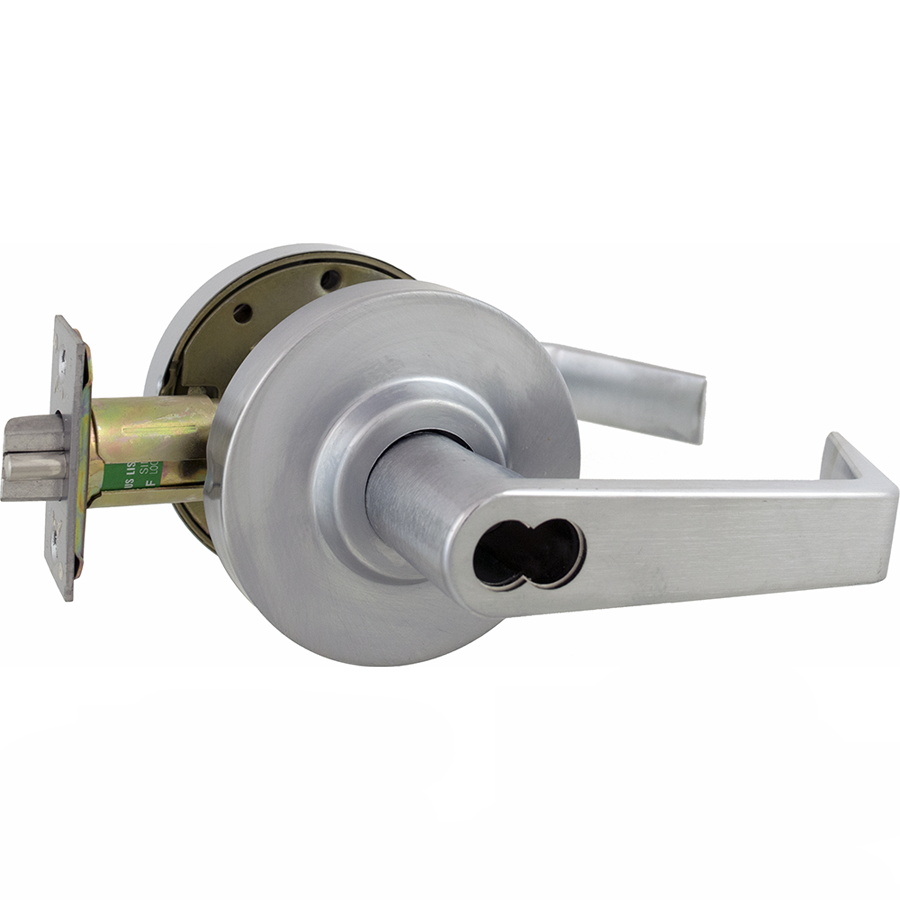

Arrow Lock RLX81SR26D-IC-2 3/8 BS Sierra Lever Entry Kit, SFIC Less Core, 2-3/8in Backset, Grade 2, Satin Chrome

Arrow Lock Company RLX81SR26D-IC-2 3/8 BS KIT features an entry clutched Sierra lever that combines durability and style in a Grade 2 cylindrical lockset. Designed for commercial applications, this lockset boasts a freewheeling lever action, enhancing resistance to abuse and wear. The RLX Series is an ideal choice for upgrading or replacing locksets, ensuring both security and aesthetic appeal. This model accommodates door thicknesses of 1-3/8" to 1-3/4", making it versatile for a variety of installations. It includes a 2-3/4" latch with a square corner face type, and its ANSI strike measures 1-1/4" x 4-7/8". The cylinder is prepared for a 6-pin solid brass configuration and comes with two nickel-plated brass keys. Notably, the RLX81SR26D-IC-2 is non-handed, allowing for easy installation regardless of door orientation. It is UL Listed and certified to BHMA A156.2, Series 4000, ensuring its reliability and performance. With a robust 10-year warranty, you can trust in the longevity of this lockset. Available in a sleek satin chrome finish, it complements a range of decor styles while providing secure access control for your commercial spaces.

KIT - Entry Clutched Sierra Lever, SFIC Less Core, 2-3/8in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
