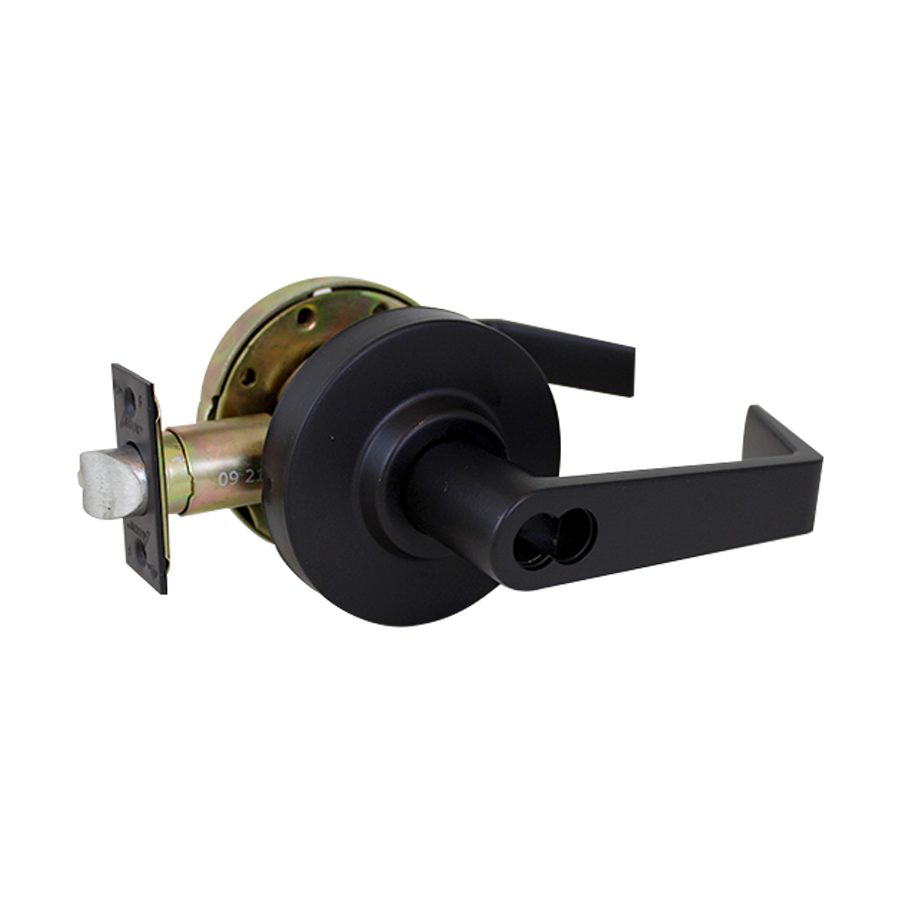

Arrow Lock RLX82SR-BSP-IC-2 3/4 BS Sierra Lever Storeroom Lock, SFIC Less Core, 2-3/4in Backset, Black Suede

Arrow Lock Company RLX82SR-BSP-IC-2 3/4 BS Storeroom Clutched Sierra Lever is a high-quality, Grade 2 lockset designed specifically for commercial applications. Its robust construction features a freewheeling lever action, enhancing resistance to wear and abuse. This model is part of the RLX Series, known for its ease of installation thanks to removable through bolts, making it an excellent choice for replacing or upgrading existing locksets. This lockset is compatible with door thicknesses from 1-3/8" to 1-3/4", factory set for 1-3/4". It includes a 2-3/4" backset latch and features a standard 6-pin solid brass cylinder, complete with two nickel-plated brass keys. The RLX82SR is non-handed, allowing for flexible installation on either side of the door. It is UL Listed, ensuring compliance with safety standards. Finished in a sleek black suede powder coat (BSP), this lockset not only provides security but also adds a modern aesthetic to any door. Backed by a 10-year warranty, the RLX82SR-BSP-IC-2 is built to last, making it an ideal investment for those seeking durability and functionality in their security solutions. Elevate your security with Arrow Lock's reliable craftsmanship and innovative design.

Storeroom Clutched Sierra Lever, SFIC Less Core, 2-3/4in Backset, Grade 2, 622/US19/BSP Black Suede Powder Coat

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
