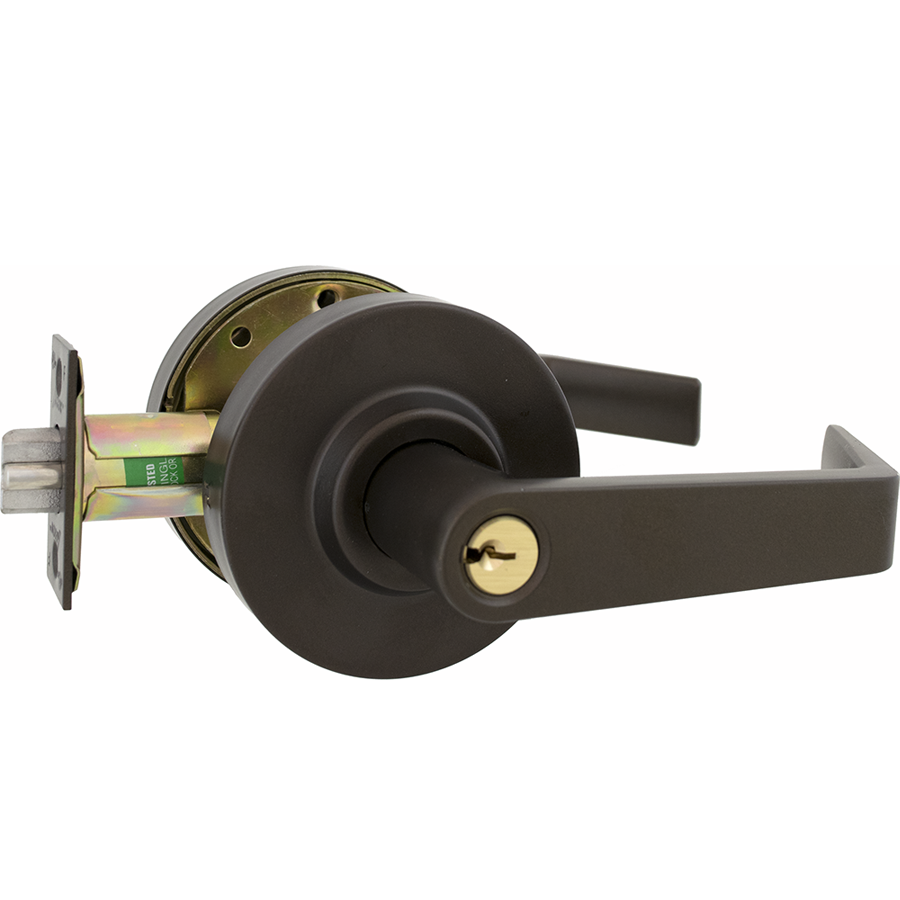

Arrow Lock RLX82SR613E-CS-2 3/8 BS Sierra Lever Storeroom Lock, Schlage C Keyway, 2-3/8in Backset, Oil Rubbed Bronze

Arrow Lock Company RLX82SR613E-CS-2 3/8 BS KIT is a robust solution designed for storeroom applications, combining functionality with durability. This Grade 2 cylindrical lockset features a Sierra lever design and is finished in a dark oxide satin bronze (613E/US10BE), ensuring a stylish yet resilient addition to your security needs. The RLX Series is known for its freewheeling lever action, which enhances resistance to abuse while providing smooth operation. It accommodates door thicknesses ranging from 1-3/8" to 1-3/4", making it versatile for various installations. The lockset is certified to BHMA A156.2, Series 4000, Grade 2, and is UL Listed, guaranteeing reliability and safety. Equipped with a Schlage C keyway and a standard 6-pin solid brass cylinder, this lockset comes with two nickel-plated brass keys for added convenience. The latch features a 2-3/4" backset with a square corner face type, ensuring compatibility with most door frames. Designed for easy installation and maintenance, the RLX82 also includes removable through bolts and a non-handed configuration, making it suitable for left or right-hand doors. With a 10-year warranty, you can trust the Arrow Lock Company RLX82SR613E-CS-2 to provide long-lasting security for commercial environments.

KIT- Storeroom Clutched Sierra Lever, Schlage C Keyway, 2-3/8in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"

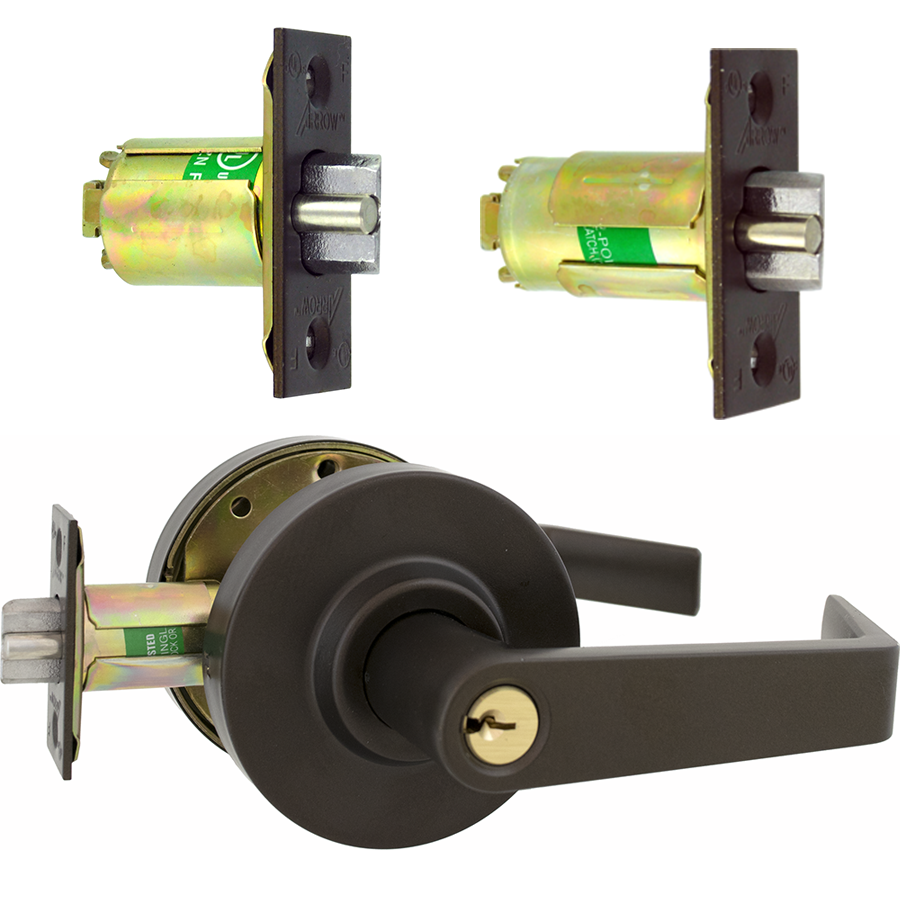

• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
