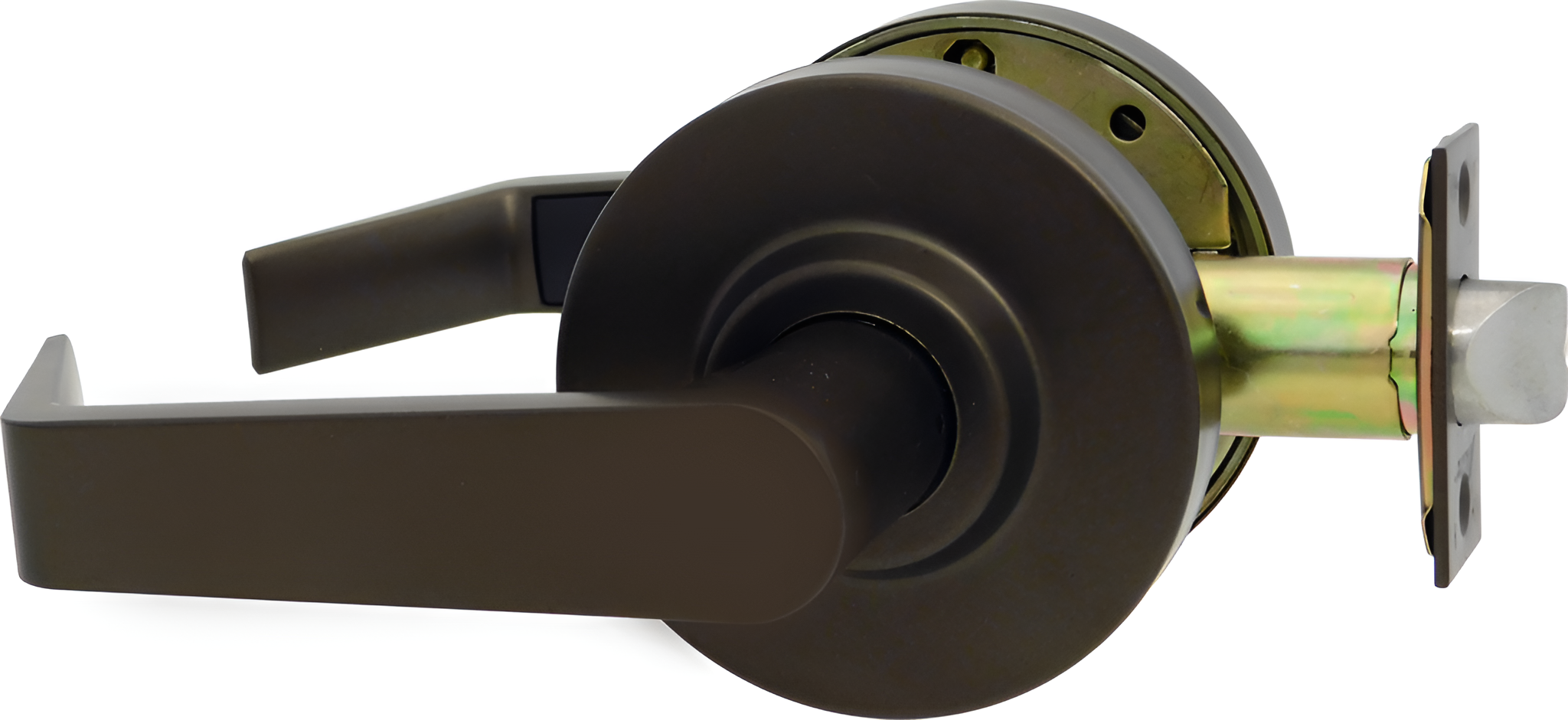

Arrow Lock RLX82SR613E-IC-2 3/4 BS Sierra Lever Storeroom Clutch, SFIC Less Core, 2-3/4" Backset, Grade 2, Oil Rubbed Bronze

Arrow Lock Company RLX82SR613E-IC-2 3/4 BS Storeroom Clutched Sierra Lever combines durability and functionality, making it an ideal choice for commercial applications. This robust Grade 2 lockset features a freewheeling lever operation, enhancing abuse resistance and longevity. Certified by BHMA A156.2, Series 4000, and UL Listed, it guarantees reliability and security. Designed to fit door thicknesses ranging from 1-3/8" to 1-3/4", the RLX82SR is factory set for 1-3/4" doors. It incorporates a 2-3/4" backset latch with a 1-1/8" front, ensuring a perfect fit for standard installations. The non-handed design provides flexibility, allowing for easy installation on either side of the door, and the standard 6-pin solid brass cylinder comes with two nickel-plated brass keys, with IC prep available. This storeroom function lockset is finished in a dark oxide satin bronze (613E/US10BE), adding an elegant touch to any door. With an average case weight of 26 lbs and a generous 10-year warranty, the RLX82SR is built to last. Ideal for those looking to upgrade or replace locksets, this product offers both style and security in one comprehensive package.

Storeroom Clutched Sierra Lever, SFIC Less Core, 2-3/4in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
