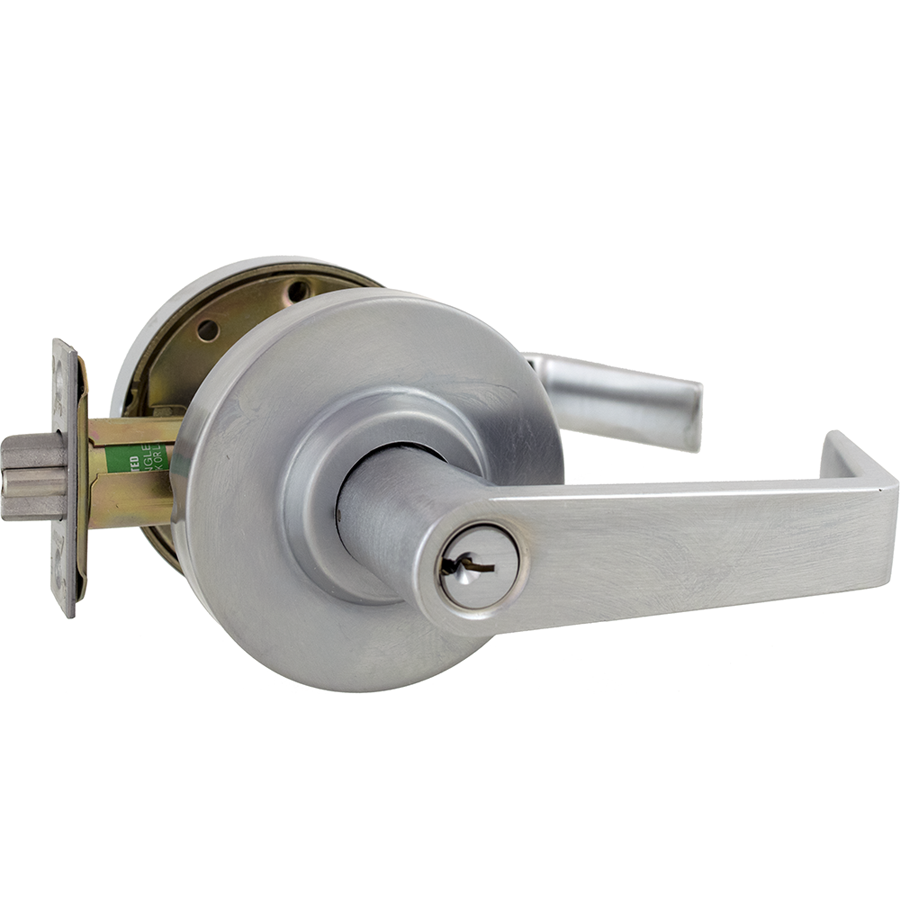

Arrow Lock RLX87SR26D-CS-2 3/4 BS Sierra Classroom Lever, Schlage C Keyway, 2-3/4in Backset, Satin Chrome

Arrow Lock Company RLX87SR26D-CS-2 3/4 BS Classroom Clutched Sierra Lever offers a robust and reliable locking solution designed for commercial environments. This Grade 2 lockset is equipped with a freewheeling lever action, ensuring enhanced resistance to wear and tear, making it an ideal choice for high-traffic areas. The RLX Series serves as a professional replacement product, featuring removable through bolts for easy installation and maintenance. Designed to fit doors with thicknesses ranging from 1-3/8" to 1-3/4", this lockset is factory set for 1-3/4" doors, ensuring a perfect fit. It comes with a 2-3/4" backset and an ANSI-standard strike measuring 1-1/4" x 4-7/8". The lock includes a standard 6-pin solid brass cylinder and two nickel-plated brass keys, with options for interchangeable core preparations. With a satin chrome finish (626/US26D), the RLX87SR26D-CS-2 not only provides security but also complements various architectural styles. Non-handed functionality ensures versatility in installation. This lockset is backed by a 10-year warranty, reflecting the confidence Arrow Lock Company places in its durability and performance. Ideal for classroom applications, this product combines safety with ease of use, making it a trusted choice for professionals and discerning homeowners.

Classroom Clutched Sierra Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
