Arrow Lock S1250F AL Rim Exit Device

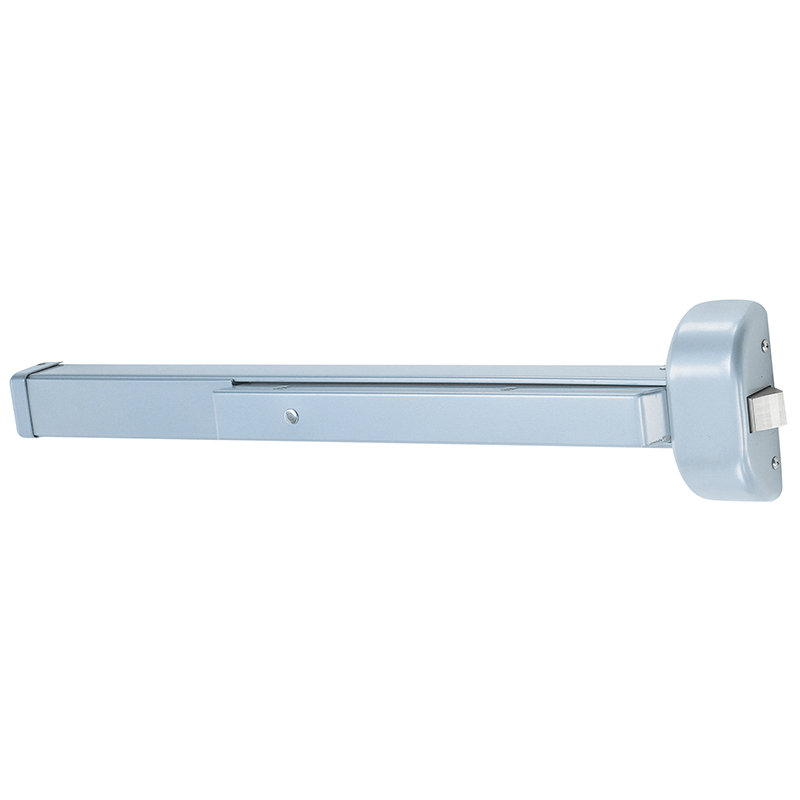

Images may not represent actual product and finish

Arrow Lock S1250F AL Rim Exit Device

Your Price: $292.40
Retail Price:$544.000
Your Savings:$251.60(46%)
The Arrow S1250F AL Rim Exit Device is a durable, Grade 1 solution for 32"-36" doors with universal functionality.
Part Number : ARR_S1250FAL
Availability: 309 In Stock
Visa, Mastercard, American Express, Discover, PayPal, Amazon Pay

Net 30 terms available

Arrow Lock S1250F AL Rim Exit Device

Arrow S1250F AL Rim Exit Device delivers exceptional security and peace of mind for commercial applications. This Grade 1 rim exit device is designed for doors ranging from 32" to 36" wide, offering a universal function that seamlessly fits most configurations. With a durable aluminum painted finish, the device combines functionality with a sleek appearance. Constructed from non-ferrous alloy for the chassis and cover, along with robust metal end caps, this exit device is built to withstand heavy use. The non-handed design simplifies installation, making it suitable for both wood and metal doors that are 1-3/4" thick. Hex key dogging is standard, while an optional cylinder can enhance security further. The Arrow S1250 features a stainless steel latchbolt with a 3/4" throw, ensuring reliable operation in emergency situations. ANSI/BHMA A156.3 Grade 1 certified, it meets or exceeds industry standards for durability and safety. It’s also UL and CUL listed for accident hazard (panic) standards, making it a safe choice for high-traffic areas. With the Arrow S1250F AL Rim Exit Device, you can trust in a reliable, high-quality solution that prioritizes both safety and accessibility, compliant with the ANSI A117.1 Accessibility Code.

Rim Exit Device

Grade 1 Rim Exit Device, Wide Stile Pushpad Device, 32" - 36" Wide Door, Universal Function, Less Trim, Hex Key Dogging, Aluminum Painted Finish, Non-Handed

The Arrow S1250 Rim Exit Device offers a reliable and dependable solution at a price you can afford.

Chassis & Cover: Non-ferrous alloy

End caps: Metal

Doors:

  • 1-3/4" (44.45 mm) thick
  • hollow metal
  • 4-1/2" (114.3 mm) minimum stile


Handling: Non-handed

Dogging: Allen-type key standard, cylinder available.

Top/Bottom Bolts/Latchbolt: 3/4" (19.05 mm) throw, stainless steel

Throughbolts: Order separately

Rail Assembly: Steel

Rail Size:

  • Furnished standard for 32-1/4" to 36" door widths.
  • Specify "-24" for 24" to 32" door widths.
  • Specify "-48" for 36-1/4" to 48" door widths.


Finishes: AL, BRZ, LBZ (sprayed finishes)

  • ANSI/BHMA A156.3, Grade 1
  • Underwriters Laboratories (UL and CUL) listed for accident hazard (panic) standard.
  • Fire Exit hardware for hollow metal doors, UL and CUL listed for 3 hour, A label and lesser doors, Prefix "F" before part number.
  • ANSI A117.1 Accessibility Code
  • Fire Exit Hardware for wood doors, listed up to 1-1/2 hour, B label doors
  • All exit devices comply with life safety code NFPA 101.
  • All fire rated devices comply with fire door and window code NFPA80


Attributes

Manufacturer surcharge: $ 0.0

Ansi: A156.3

Commercial Residential: Commercial

Device Length: 32" - 36"

Device Type: Rim

Dogging Options: Hex Key Dogging

Door Material: Wood or Metal

Door Thickness: 1-3/4"

Finish: 689/US28

Finish Family: Matte Silver

Fire Rated: No

Grade: Grade 1

Handing: Non-Handed

Includes Trim: No

Installation: Commercial

Mechanical Function: Universal

Pack Qty: 1

Physical Appearance: Wide Stile Pushpad

Series: Arrow S1250 Series Rim Exit Devices

Strike Standard: S38

Subtype: Rim Exit Devices

Type: Exit Devices

Unit of Measure: Each
