ASI 0484-HC Toilet Seat Cover Toilet Tissue Disp. - Dual Access for ADA - Partition Mounted offers a reliable solution for high-traffic restroom environments, such as schools, healthcare facilities, and government buildings. This restroom fixture is designed to hold and dispense up to 1000 standard single or half-fold paper toilet seat covers, along with four standard toilet paper rolls of 1800 sheets each, ensuring users have access to essential hygiene supplies. Engineered for compliance with ADA standards, the ASI 0484-HC features a dual-access design that allows for seamless use on both sides while servicing from one side. This thoughtful configuration permits flush mounting to the partition of barrier-free stalls, leaving space for grab bars, enhancing both accessibility and functionality. The internal baffles are designed to prevent line-of-sight views from either side, promoting privacy and discretion. Security is paramount in public restrooms, and the ASI 0484-HC addresses this with a cabinet door secured by two tumbler locks. Additionally, it incorporates theft and vandal-resistant rollers, molded from high-impact resistant plastic with stainless steel endpins, ensuring durability in demanding environments. The four supplied rollers (p/n R-004) facilitate effortless operation, further enhancing user experience. With a commitment to hygiene and efficiency, the ASI 0484-HC Toilet Seat Cover Toilet Tissue Disp. is not just a fixture; it is an essential component of a well-designed restroom that prioritizes user comfort and safety. Its U.S.-engineered quality and sturdy construction make it a dependable choice for any institution looking to maintain high standards of cleanliness and accessibility.

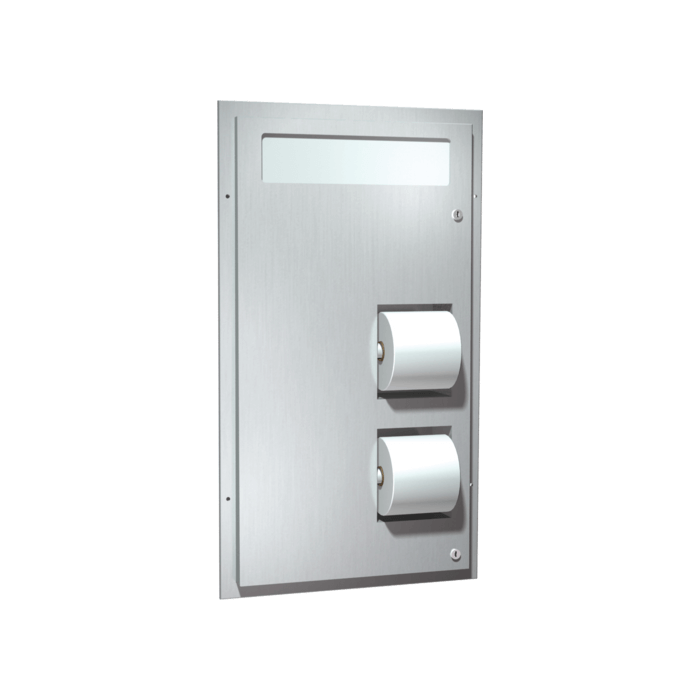

Toilet Seat Cover Toilet Tissue Disp. - Dual Access for ADA - Partition Mounted
Holds and dispenses 1000 standard single or half-fold paper toilet seat covers contained in supply box and four (4) standard or 1800 sheet 4-1⁄2" x 5-1⁄4" diameter (114 x Ø133) toilet paper rolls.
One side mounts flush to partition of barrier-free side to allow for grab bar. Usable both sides but serviced from one side. Access door is opposite HC stall. Internal baffles prevent line of sight view from either side through unit at any time.
Cabinet door is held closed with two (2) tumbler locks. Cabinet includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] (supplied).
BAA: Yes
Feature: Dual Access - Handicap
Lead Time: Available
Mounted: Yes
Mounting Style: Partition Mounted
Overall Dimensions: 17-3⁄8" x 30-5⁄8" x 4-1⁄2" 441 x 778 x 114 mm
Partition Opening: 15-1⁄2" x 28-7⁄8" x 1/2" to 2" 394 x 733 x 13 to 51 mm
