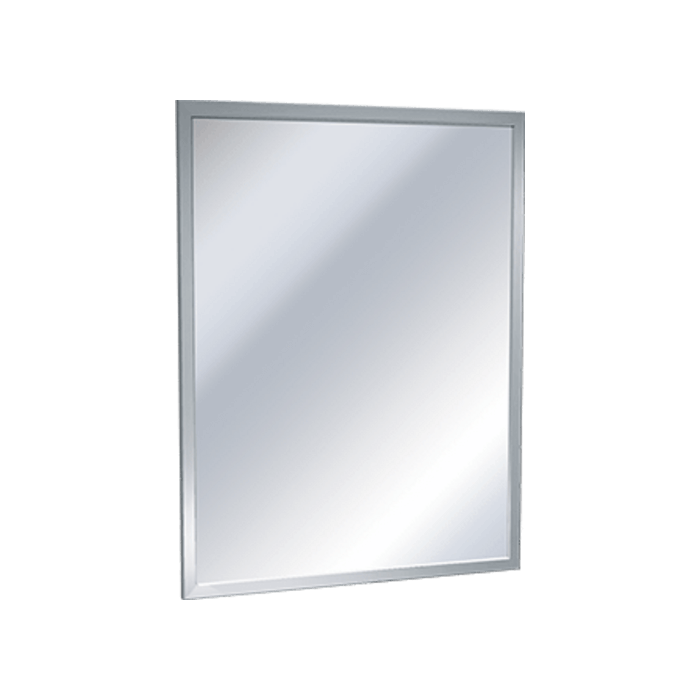

ASI 0600-2230 Stainless Steel Inter-Lok Angle Frame Mirror, 22"W x 30"H

ASI 0600-2230 Mirror features a sleek, inter-lok angle frame made from 18-gauge type 304 stainless steel, ensuring exceptional durability and resistance to corrosion in high-traffic environments. Measuring 22 inches wide by 30 inches high, this mirror is designed for effective use in commercial spaces such as schools, healthcare facilities, transportation hubs, manufacturing sites, and government buildings, where reliability and hygiene are paramount. The frame’s roll-formed design includes corners that are heliarc welded and ground to a smooth, polished satin finish, providing both an aesthetically pleasing look and enhanced safety by eliminating sharp edges. The mirror itself is securely mounted on a concealed hanging bracket, which is locked into position by tamper-proof set screws, ensuring that it remains firmly in place and is resistant to vandalism. A one-piece back plate is attached with a theft-resistant locking device, adding an extra layer of security and peace of mind for facility managers. This thoughtful construction not only prolongs the life of the mirror but also simplifies maintenance, allowing for easy cleaning and upkeep in busy public restrooms. With BAA compliance, the ASI 0600-2230 Mirror meets the needs of institutions seeking to maintain high standards of quality and compliance. Its efficient design and robust materials make it an ideal choice for any commercial restroom setting, ensuring a hygienic and visually appealing environment for all users.

Mirror - Stainless Steel, Inter-Lok Angle Frame - Plate Glass - 22"W X 30"H

3⁄4" x 5⁄8" (19 x 16 mm) roll formed 18 gauge type 304 stainless steel angle has corners heliarc welded, ground and polished smooth to a uniform satin finish. Mirror is installed on a concealed hanging bracket that locks onto top and bottom of frame by tamper-proof set screws. Back plate is one piece, attached to frame with theft-resistant locking device.

Resources

• Tech Data Sheet
