ASI 0661-2 Velare – Stainless Steel Mirror Cabinet – Frameless – Liquid Soap Dispenser + High-Speed Hand Dryer (208-220V) Surface Mounted offers a perfect blend of sophistication and functionality for high-traffic environments. Constructed from durable type 304 stainless steel, this elegant cabinet features a frameless, 1/4" (6mm) thick tempered glass mirror that adheres to ASTM C-1048 standards, ensuring both safety and style. The cabinet's mirrored door is supported by a full-width concealed piano hinge and secured with a tumbler lock and key, providing security and ease of access. Innovative twin damped gas springs assist in opening the door smoothly from 15° to 90°, featuring a soft-stop cushion for added safety. This design is particularly beneficial in busy settings such as schools, healthcare facilities, and transportation hubs, where durability and reliability are paramount. Inside, the cabinet conceals a hands-free automatic liquid soap dispenser with a generous 1.5-gallon (6 L) capacity, designed to operate efficiently with soap viscosity ranging from 100 to 3,000 mPa·s and a pH range of 5.5 to 8.5. Complementing this is a high-speed hand dryer (208-240V) equipped with a HEPA filter, enhancing hygiene and reducing waiting times. The mirror backlights operate on 100-240 VAC, powered through a concealed quad outlet, ensuring a streamlined installation process. Matching filler modules are available for seamless integration between cabinets, making the ASI Velare™ a versatile choice for any institutional restroom setting. With its focus on hygiene, ADA compliance, and easy maintenance, this mirror cabinet exemplifies ASI's commitment to quality and efficiency in restroom solutions.
Velare - Stainless Steel Mirror Cabinet - Frameless - Liquid Soap Dispenser + High Speed Hand Dryer (208-220V)Surface Mounted

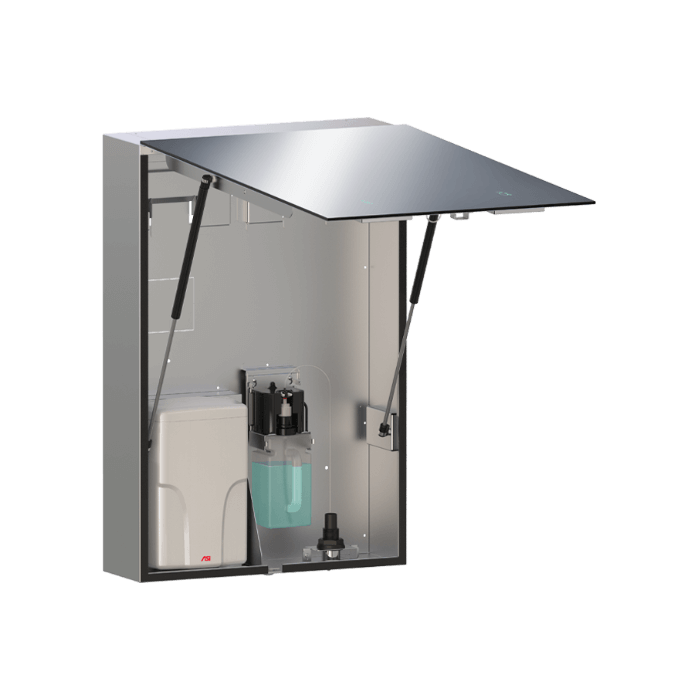

ASI’s Velare™ Behind the Mirror (BTM) is designed for elegance and safety in mind, concealing consumables in a cabinet made from type 304 stainless steel. The cabinet features a mirrored door with backlit icons that indicate functions provided from the bottom panel of each module. Mirror is made from 1/4" (6mm) thick frameless tempered glass conforming to ASTM C-1048 with pencil edges and eased corners with SS sheet intermediate stiffener and SS back plate with integral welded support mounts, hinge and lock keeper.
The mirrored door is attached to the cabinet using a full width 3/16" diameter (Ø4.8) concealed piano hinge and is secured shut using a tumbler lock and key. Support for mirror door is provided by twin damped gas springs to assist opening from 15° to 90° with soft-stop cushion at full open and when lowering to full closed position for locking.
This wall mounted stainless steel cabinet conceals a hands-free automatic liquid soap dispenser with a 1.5 gal (6 L) capacity and a high-speed hand dryer (208-240V) equipped with a HEPA filter.
Mirror backlights operate on 100 – 240 VAC provided to quad (double-duplex) outlet (by others) concealed behind the cabinet into which a standard appliance power cord and AC adapters are plugged into at installation.
Matching filler modules (FM) are available as spacers between cabinets.
BAA: Yes
Collection: Velare
Lead Time: 5 Weeks
Material: Stainless Steel
Mounted: Yes
Mounting Style: Surface Mounted
Product Dimensions: 23-5⁄8" x 35-7⁄16" x 7-9⁄16" 600 x 900 x 192
Voltage: 208-240V
