ASI 0663-1 Velare Stainless Steel Frameless Mirror Cabinet with Soap Dispenser Dryer

ASI 0663-1 Velare - Stainless Steel Mirror Cabinet - Frameless - Foam Soap Dispenser + High Speed Hand Dryer (110-120V) - Surface Mounted seamlessly integrates hygiene and style for high-traffic environments. Constructed from type 304 stainless steel, this durable cabinet features a frameless, 1/4" (6mm) thick tempered glass mirror, ensuring a sleek appearance that meets ASTM C-1048 standards. Designed for efficiency, the cabinet conceals a hands-free automatic foam soap dispenser with a generous 1.5-gallon (6 L) capacity, minimizing touchpoints and promoting hygiene. Additionally, the high-speed hand dryer (110-120V) is equipped with a HEPA filter, enhancing air quality while expediting the drying process. The user-friendly mirrored door is supported by twin damped gas springs, allowing for smooth operation from 15° to 90°, and features a soft-stop cushion for secure closure. Security is paramount, with a tumbler lock and key system ensuring that the cabinet remains securely closed when not in use. The mirror also includes backlit icons that clearly indicate the functions available, providing both convenience and a touch of modern elegance. The operation of the mirror backlights requires a 100 – 240 VAC power source, which connects to a concealed quad outlet. For added flexibility, matching filler modules (FM) are available to create a cohesive look between cabinets. The Velare collection exemplifies ASI's commitment to durability, reliability, and U.S.-engineered quality, making it an ideal solution for schools, healthcare facilities, transportation hubs, and government buildings. Choose ASI for fixtures that withstand the demands of high-traffic applications while enhancing user experience.

Velare - Stainless Steel Mirror Cabinet - Frameless - Foam Soap Dispenser + High Speed Hand Dryer (110-120V) - Surface Mounted

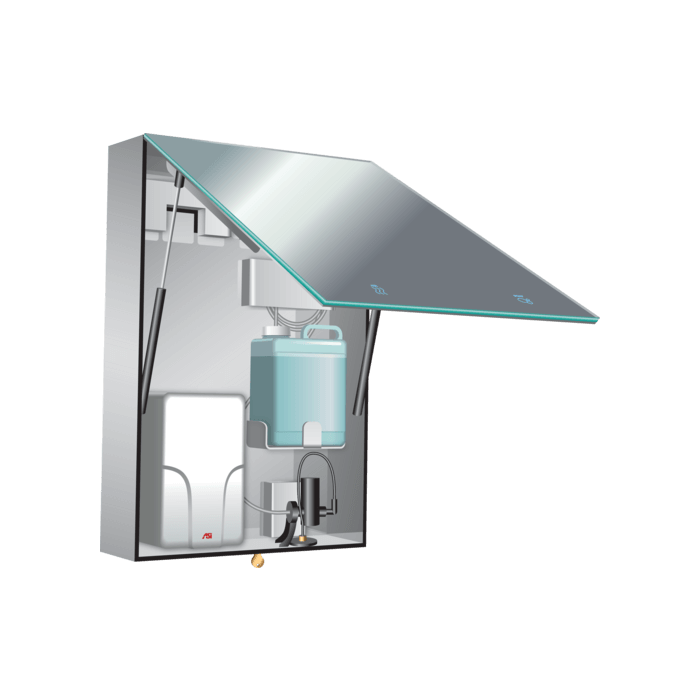

ASI’s Velare™ Behind the Mirror (BTM) is designed for elegance and safety in mind, concealing consumables in a cabinet made from type 304 stainless steel. The cabinet features a mirrored door with backlit icons that indicate functions provided from the bottom panel of each module. Mirror is made from 1/4" (6mm) thick frameless tempered glass conforming to ASTM C-1048 with pencil edges and eased corners with SS sheet intermediate stiffener and SS back plate with integral welded support mounts, hinge and lock keeper.

The mirrored door is attached to the cabinet using a full width 3/16" diameter (Ø4.8) concealed piano hinge and is secured shut using a tumbler lock and key. Support for mirror door is provided by twin damped gas springs to assist opening from 15° to 90° with soft-stop cushion at full open and when lowering to full closed position for locking.

This wall mounted stainless steel cabinet conceals a hands-free automatic foam soap dispenser with a 1.5 gal (6 L) capacity and a high-speed hand dryer (110-120V) equipped with a HEPA filter.

Mirror backlights operate on 100 – 240 VAC provided to quad (double-duplex) outlet (by others) concealed behind the cabinet into which a standard appliance power cord and AC adapters are plugged into at installation.

• Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
• Viscosity Range (mPa·s or cP): 0 – 100
• pH Range: 5.5 ~ 8.5

Matching filler modules (FM) are available as spacers between cabinets.
