ASI 3420-P Swing Up Grab Bar with Support Leg (1-1/4" O.D) Peened is engineered for durability and reliability in high-traffic environments such as healthcare facilities, schools, and government buildings. Constructed from stainless steel type 304 alloy 18-8, this grab bar ensures long-lasting performance and resistance to corrosion, making it an excellent choice for demanding applications. The bar features a robust 1-1/2" diameter tubing hinge with three preset detent stop positions, allowing users to easily adjust the angle of the grab bar for optimal accessibility. The polymer anti-friction bearing plates facilitate quiet and smooth operation, enhancing user comfort and experience. Additionally, a polymer bumper at the bottom end of the bar is included to prevent impact noise when the grab bar is lowered into the use position, promoting a tranquil restroom environment. Designed with safety in mind, the ASI 3420-P complies with ADA and other relevant building codes, making it a reliable choice for facilities that prioritize accessibility. The inclusion of a support leg adds extra stability, ensuring the grab bar can withstand the daily use expected in busy settings. This grab bar is not only functional but also easy to maintain, ensuring that hygiene standards are upheld in all applications. With its sleek, institutional aesthetic, the ASI 3420-P Swing Up Grab Bar with Support Leg is a practical solution for enhancing safety and accessibility without compromising on style. Available with a lead time to suit your project needs, this grab bar is a smart investment for any restroom renovation or construction project.

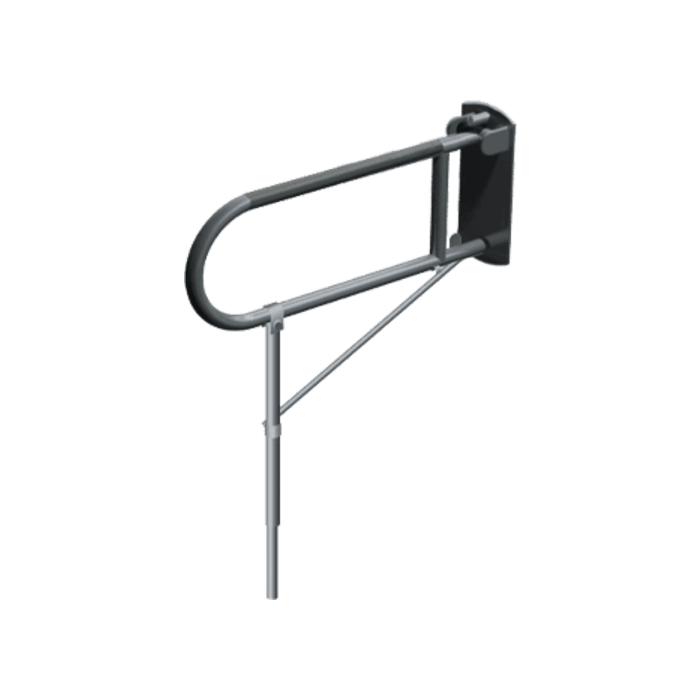

Swing Up Grab Bar with Support Leg (1-1/4" O.D) Peened
Grab Bar with Support Leg is fabricated of stainless steel type 304 alloy 18-8. The bar has 1-1⁄2" diameter (Ø38) tubing hinge with three (3) preset detent stop positions and polymer anti-friction bearing plates to ensure quiet and smooth operation. A polymer bumper is provided at the bottom bar end to prevent banging when lowered into use position.
Finish: Peened
Lead Time: Available
Overall Dimensions: 30" x 33" 762 x 213 mm
