ASI 3514-P Swing Up Grab Bar (1-1/2" O.D) - Peened - With Detent Stops 0, 45 and 90 Positions offers a robust solution for enhancing accessibility in high-traffic restroom environments. Crafted from stainless steel type 304 alloy 18-8, this grab bar features a durable peened finish that resists corrosion and provides a secure grip for users. The 1-1/2" diameter tubing hinge is engineered for both strength and stability, making it ideal for schools, healthcare facilities, transportation hubs, manufacturing sites, and government buildings. Designed with user convenience in mind, the ASI 3514-P includes three preset detent stop positions-full up, 45 degrees raised, and full down-allowing for versatile use based on individual needs. The internal detent stops pawl ensures smooth operation and can be easily maneuvered with one hand, promoting independence for users of all abilities. Additionally, the polymer bumper at the bottom end of the bar prevents noise and potential damage when lowered, while the solid stop bumper on the mounting plate protects walls from impact. This grab bar is also compliant with ADA standards, ensuring that it meets essential accessibility requirements. Its vandal-resistant design makes it a reliable choice for any commercial restroom, while the easy maintenance of stainless steel ensures longevity and hygiene. With a lead time of just two weeks, the ASI 3514-P Swing Up Grab Bar is a dependable addition to any facility looking to enhance safety and accessibility for all users.

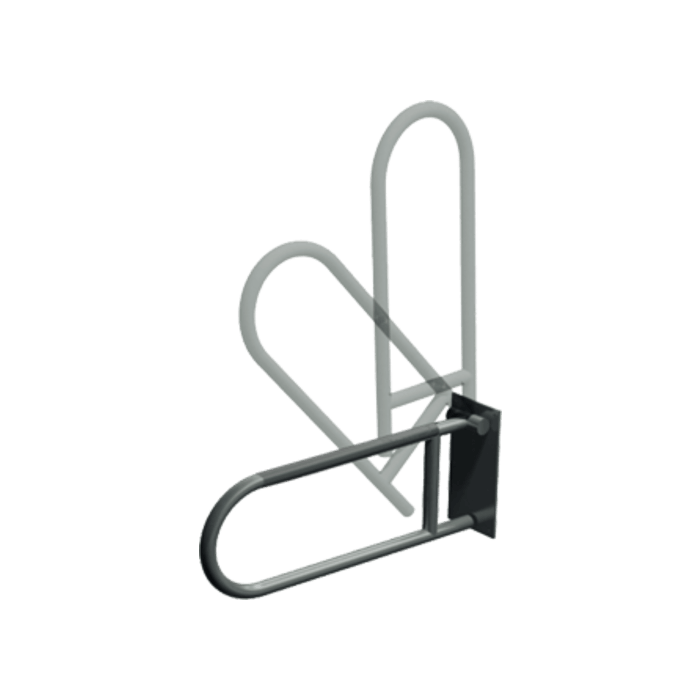

Swing Up Grab Bar (1-1/2" O.D) - Peened - With Detent Stops 0, 45 and 90 Positions
Swing-Up Grab Bar is fabricated of stainless steel type 304 alloy 18-8 with a Peened finish. The bar has 1-1⁄2" diameter (Ø38) tubing hinge with (3) preset detent stop postitions (full up, 45 deg. raised and full down). A polymer bumper is provided at the bottom bar end to prevent banging when lowered into use position. Tension for bar movement is accomplished by internal detent stops pawl provided. Operable with one hand. Bar mounting plate includes solid stop bumper to prevent raised arm from banging into wall.
Exposed Flange (1-1⁄2" O.D) Peened - Swing Up Grab Bar
Finish: Peened
Lead Time: 2 Weeks
Product Dimensions: Overall Size
