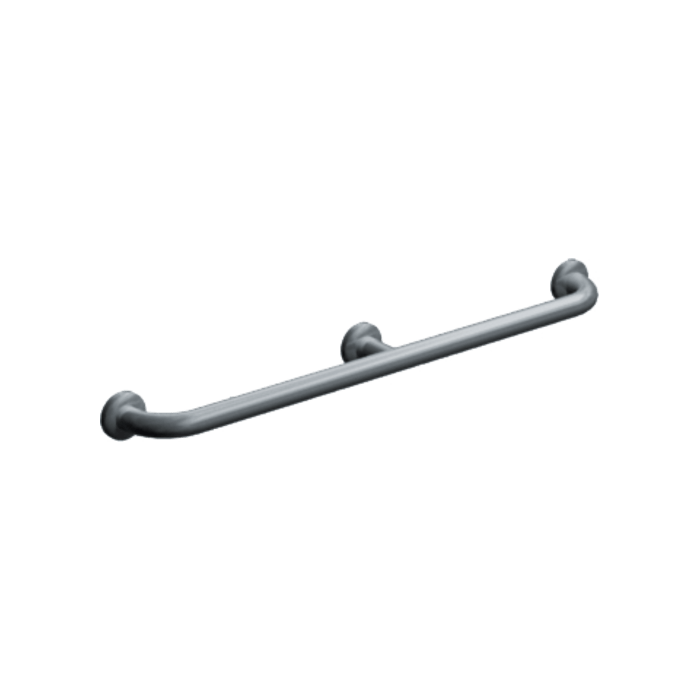

ASI 3802-54 Snap Flange Smooth Straight Grab Bar with Intermediate Support, 54". Engineered for high-traffic environments, this grab bar provides essential support while ensuring safety and accessibility. Constructed from 1/8" (3 mm) thick type 304 stainless steel, it is designed to withstand the rigors of busy facilities such as schools, healthcare facilities, and government buildings. The ASI 3802-54 features a sleek satin finish that not only enhances its aesthetic appeal but also makes it resistant to corrosion and tarnishing, ensuring long-lasting performance in demanding conditions. Its innovative snap-on cover effectively conceals the mounting flange dimples and screws, delivering a clean and polished look that complements the overall design of any restroom. With a diameter of 3-3/16" (81 mm) and a concealed mounting flange measuring 3-1⁄8" (79 mm) O.D., this grab bar includes two screw holes and three locking dimples for secure installation. This thoughtful design ensures ADA compliance, providing a reliable grip for users, enhancing safety, and promoting independence. The grab bar's robust construction guarantees reliability, making it an excellent choice for environments where durability is paramount. Its easy maintenance requirements allow for quick cleaning, contributing to overall hygiene standards in busy public restroom settings. Backed by BAA compliance and readily available with minimal lead time, the ASI 3802-54 Snap Flange Grab Bar stands out as an essential fixture that combines functionality, safety, and style, making it the ideal choice for any commercial restroom application.
Snap Flange (1-1/2" O.D) Smooth - Straight Grab Bar w/ Intermediate Support, 54"
Features include cover that
Snaps over mounting flange dimples to conceal screws and concealed mounting flange of 3-1⁄8" (79 mm) O.D. diameter with 2 screw holes and 3 locking dimples; 1/8" (3 mm) thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16" (81 mm) diameter.
Lead Time: Available
Product Dimensions: Snap Flange 1-1⁄2" OD (38 mm) Smooth - Straight Grab Bar with Intermediate Support, 54" (1321 mm)
