ASI 3833-R Snap Flange (1-1/2" O.D) Smooth-Wall to Floor 30" x 33" w/Outrigger - Right Hand delivers exceptional durability and reliability essential for high-traffic environments. Designed with a cover that snaps over the mounting flange dimples, this product effectively conceals screws, ensuring a clean and polished appearance in any restroom. Constructed from 1/8" (3 mm) thick type 304 stainless steel, the ASI 3833-R is built to withstand the rigors of constant use in schools, healthcare facilities, transportation hubs, manufacturing sites, and government buildings. The concealed mounting flange features a 3-1/8" (79 mm) outer diameter, equipped with two screw holes and three locking dimples for secure installation, promoting safety and stability. With its Peened finish, this snap flange not only resists scratches and vandalism but also maintains a sleek, institutional aesthetic that complements any restroom design. The 22-gauge, 3-3/16" (81 mm) diameter cover further enhances its strength while ensuring compliance with ADA and relevant building codes. The ASI 3833-R is also compliant with the Buy American Act (BAA), underlining its commitment to quality and domestic manufacturing. Its easy maintenance ensures that facilities can uphold high hygiene standards with minimal effort, making it a smart choice for busy environments. Choose the ASI 3833-R Snap Flange for an efficient, reliable, and aesthetically pleasing solution that meets the demands of modern commercial restrooms while supporting both functionality and compliance.

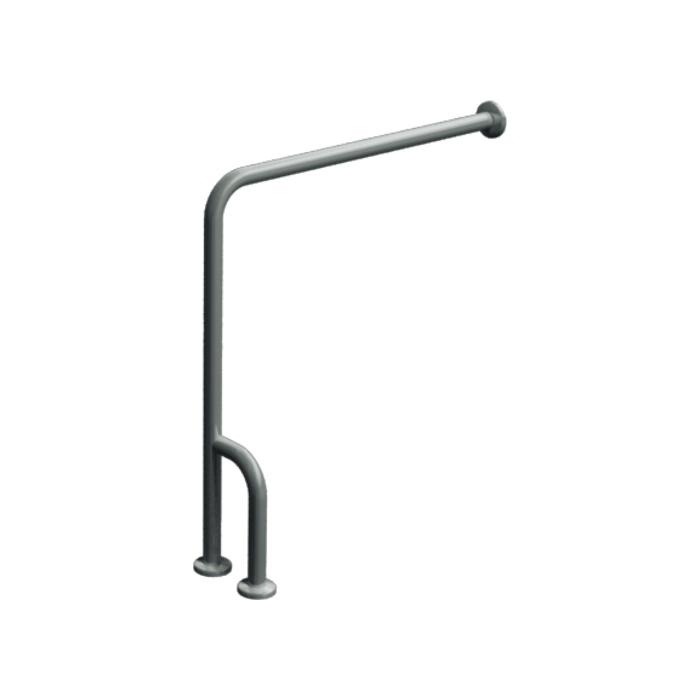

Snap Flange (1-1/2" O.D) Smooth-Wall to Floor 30" x 33" w/Outrigger - Right Hand
Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 3-1⁄8" (79 mm) O.D. diameter with 2 screw holes and 3 locking dimples; 1/8" (3 mm) thick, type 304 stainless steel. Cover is type 304 stainless steel with a Peened finish and 22 gauge, 3-3⁄16" (81 mm) diameter.
Finish: Satin
Lead Time: Available
Option: Right Hand
Width: 33
