ASI 3856 Snap Flange (1-1/2" O.D) Smooth - Horizontal Grab Bar, 54" x 36" is engineered to provide reliable support in high-traffic environments such as schools, healthcare facilities, and government buildings. Constructed from durable type 304 stainless steel, this grab bar features a satin finish that not only enhances its aesthetic appeal but also ensures longevity and resistance to corrosion. The innovative design includes a cover that snaps over the mounting flange dimples, effectively concealing screws for a clean, streamlined look. This grab bar boasts a concealed mounting flange with a 3-1/8" (79 mm) outer diameter, complete with two screw holes and three locking dimples, ensuring secure installation that meets ADA compliance requirements. The robust 1/8" (3 mm) thickness guarantees stability and safety, making it an ideal choice for facilities where reliability is critical. With dimensions of 54" in length and 36" in height, the ASI 3856 provides ample support for users, promoting independence and accessibility. Its design not only adheres to strict building codes but also enhances hygiene through easy maintenance, making it suitable for a variety of applications. This grab bar is compliant with BAA standards, ensuring it meets the needs of government and institutional projects. Whether in a restroom, locker room, or transit hub, the ASI 3856 Snap Flange Grab Bar is a dependable choice for enhancing safety and accessibility in any commercial restroom setting.

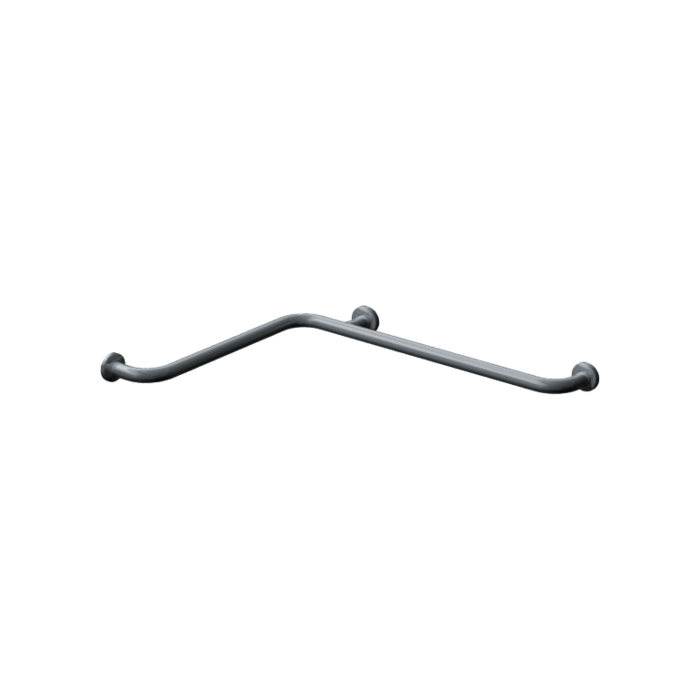

Snap Flange (1-1/2" O.D) Smooth - Horizontal Grab Bar, 54" x 36"
Features include cover that
Snaps over mounting flange dimples to conceal screws and concealed mounting flange of 3-1⁄8" (79 mm) O.D. diameter with 2 screw holes and 3 locking dimples; 1/8" (3 mm) thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16" (81 mm) diameter.
Finish: Satin
Lead Time: Available
Product Dimensions: Snap Flange 1-1⁄2" OD (38 mm) Smooth - Horizontal Grab Bar, 54" x 36" (1372 x 914 mm)
