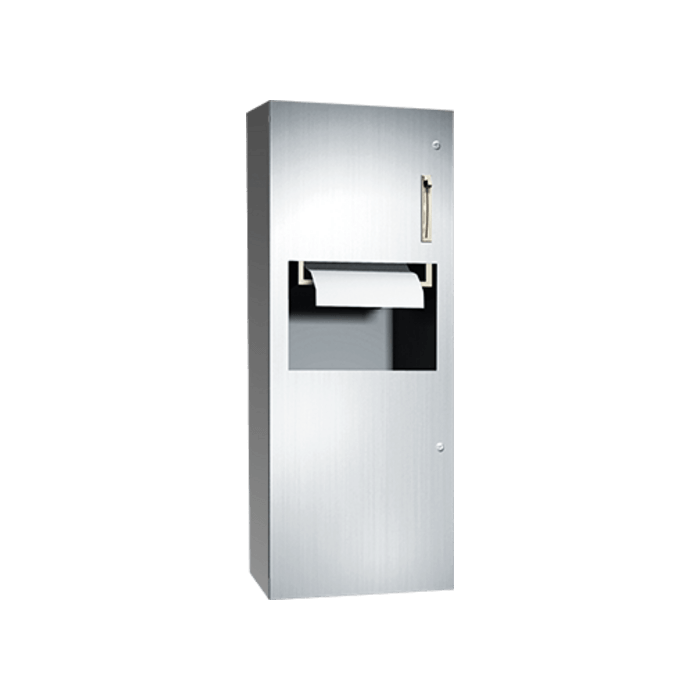

ASI 64696-9 Simplicity Roll Paper Towel Dispenser 9.4 Gal Waste Receptacle

ASI 64696-9 Simplicity - Roll Paper Towel Dispenser with 9.4 gal. Waste Receptacle offers a robust solution for high-traffic environments such as schools, healthcare facilities, and government buildings. Designed for surface mounting, this unit combines a sleek stainless steel design with exceptional functionality, ensuring longevity and reliability even in demanding settings. This dispenser mechanically dispenses standard towel rolls of 8" or 9" widths, accommodating up to 800 ft. (244m) of towel length, and features a stub roll capability for continuous use. The adjustable towel feed length, managed by a supplied pin, allows for efficient towel dispensing, promoting cost-effectiveness while minimizing waste. The lever action ensures smooth operation, making it user-friendly for all. The integrated 9.4-gallon (36 liters) stainless steel waste receptacle efficiently collects used towels, reducing the need for frequent emptying and maintaining cleanliness in restrooms. Security is prioritized with a locking full-face door that prevents unauthorized access and ensures only authorized personnel can refill compartments. Reloading is straightforward; simply unlock the door and replace the towel roll for uninterrupted service. The design allows for a new roll to automatically start dispensing when an existing partial roll is transferred to the stub roll position, ensuring a seamless user experience. Crafted with hygiene and maintenance in mind, the ASI 64696-9 Simplicity dispenser meets ADA and code compliance requirements, making it an excellent addition for any facility aiming to enhance its restroom amenities. With its combination of durability, efficiency, and aesthetic appeal, this roll paper towel dispenser is the ideal choice for today’s institutional environments.

Simplicity - Roll Paper Towel Dispenser 9.4 gal. Waste Receptacle - Surface Mounted

Mechanically dispenses 8" or 9" (205 or 230 mm) wide standard towel roll up to 800 ft. (244m) long and has stub roll capability for continuous dispensing. Stainless steel disposal with 9.4 gal. (36 liters) capacity.

Surface mounted with stainless steel collar.

Towels are fed by lever action. Towel feed length is adjustable for economy by pin (supplied) limiting of lever stroke length. Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position. Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit. Locking full-face door over compartments prevents unauthorized access or removal.

Resources

• Tech Data Sheet
