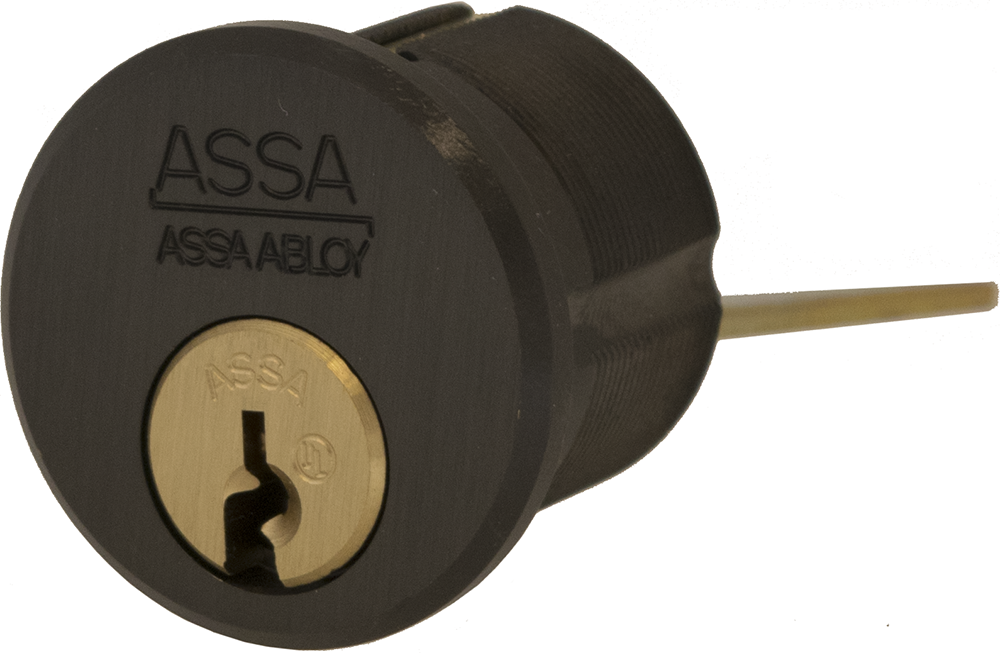

Assa Abloy 6551-H-624-SUB-52-518 Twin 6000 1-1/8in Rim Cylinder, Horizontal Tailpiece, Dark Bronze/Clear Coat

Assa Abloy Inc. 6551-H-624-SUB-52-518 Twin 6000 1-1/8in Rim Cylinder offers an exceptional combination of security and versatility for both residential and commercial applications. Designed primarily for apartment and condominium doors, this rim cylinder is compatible with vertical deadbolt locks and commercial exit devices. The sub-assembled design features a horizontal tailpiece, ensuring easy installation. One of the standout attributes of this cylinder is its drill-resistant housing and plug, reinforced with case-hardened steel inserts and stainless steel pins. Two independent locking mechanisms enhance security, while inactive "false" grooves and counter-milled chambers boost pick resistance, making unauthorized access significantly more challenging. The cylinder can be rekeyed in the field, providing flexibility for property managers and homeowners alike. This product is U.L. 437 Listed, assuring robust performance and reliability. It features a durable dark bronze finish (624/US20A), adding a touch of elegance while maintaining functionality. Additionally, the standard rim cylinder can be effortlessly converted to a mortise cylinder with a simple assembly change. With its superior construction and innovative design, the Assa Abloy 6551-H-624-SUB-52-518 is a smart choice for those seeking high-security solutions in a stylish package.

Twin 6000 1-1/8in Rim Cylinder, Horizontal Tailpiece, Sub-Assembled, 624/US20A Dark Bronze/Clear Coat

Commonly used on apartment and condominium doors, ASSA rim cylinders are used on vertical deadbolt locks and are also designed for commercial exit and panic devices. Available with either horizontal/vertical break-off or lazy-motion type break-off tailpieces, ASSA rim cylinders can be ordered with the standard or the Sargent rim exit device mounting patterns. The standard rim cylinder can be easily converted to a mortise cylinder by simply replacing the rim tailpiece assembly with the appropriate cam.

Features:

• Benefits:
• Drill resistant cylinder housing and plug
• Case-hardened steel inserts and stainless steel pins
• Two independent locking mechanisms to ensure security and optimum pick resistance
• Inactive "false" grooves on side pins designed to increase pick resistance
• Counter mill in each chamber position to further enhance pick resistance
• Extremely close tolerances
• Can be easily rekeyed in the field
• Standard and Sargent hole pattern available
• Standard rim cylinder is easily converted to mortise cylinder
• Certification:
• All ASSA Maximum+ and Twin Series Rim cylinders are U.L. 437 Listed
• Technical Information:
• Available with limited rotation and/or unidirectional Features
• Cylinder housing and plug are made of high quality brass
• Stainless steel top pins
• Bottom pins and master pins are nickel silver

Finishes:

• 625/US26 - Bright Chrome
• 626/US26D - Satin Chrome
• 605/US3 - Bright Brass
• 606/US4 - Satin Brass
• 612/US10 - Satin Bronze
• 624/US10B - Dark Oxidized Bronze
