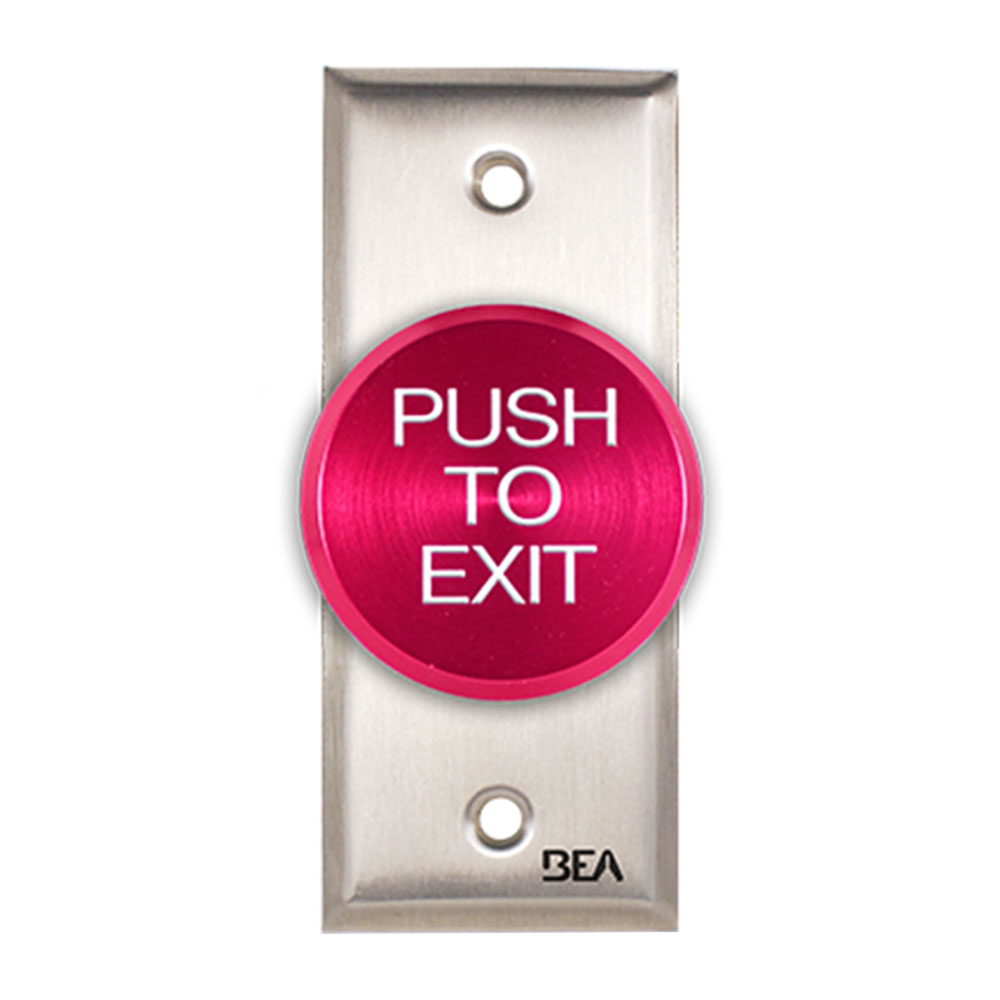

BEA 10ACPBDA1 Red Pneumatic Pushbutton

BEA 10ACPBDA1 Red Pneumatic Pushbutton delivers a robust solution for access control in commercial settings. This pneumatic push button features an oversized, 2-inch red button prominently marked with "Push to Exit" text, ensuring visibility and ease of use in high-traffic areas. Designed with durability in mind, it boasts a stainless steel faceplate and anodized aluminum button, making it suitable for various indoor applications. The device minimizes moving parts, which effectively reduces wear and tear, thereby extending its lifespan. Once activated, a user-defined time delay of 0 to 60 seconds initiates automatically without the need for additional mechanical action or external power. This streamlined functionality enhances convenience and reliability in access scenarios. With a limited 3-year warranty, the BEA 10ACPBDA1 offers peace of mind alongside its practical benefits. It is compatible with narrow jamb mounting plates, ensuring ease of installation in commercial environments. As part of BEA's Access Control series, this push button integrates seamlessly with other security systems to enhance overall building access management. Whether for emergency exits or regular entry points, this pneumatic push button stands out for its effectiveness and durability.

Red Pneumatic Pushbutton

Pneumatic Push Button, Jamb plate, oversized 2" Red button, "Push to Exit" text, 2.5 AMP 12 to 24 V AC/DC

BEA's Pneumatic Push Buttons are ruggedized, including stainless steel faceplates and colored, anodized aluminum buttons, appropriate for most indoor applications. The device is uniquely designed to minimize the number of moving parts, in turn reducing the wear and tear of the button and extending the life of the device. Upon activation, the user defined time delay initiates without additional mechanical action or the need of external power.

BEA’s Access Control Push Button is an illuminated access control solution.

BEA has a range of Access Control products with capabilities that integrate systems and enhance access within buildings.
