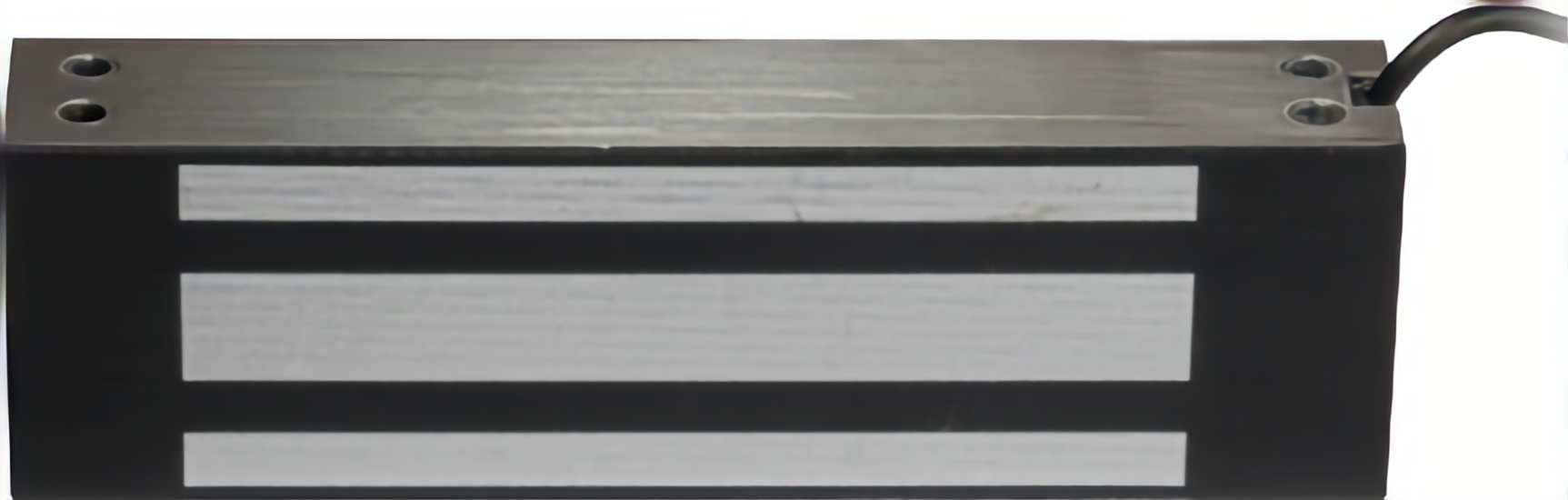

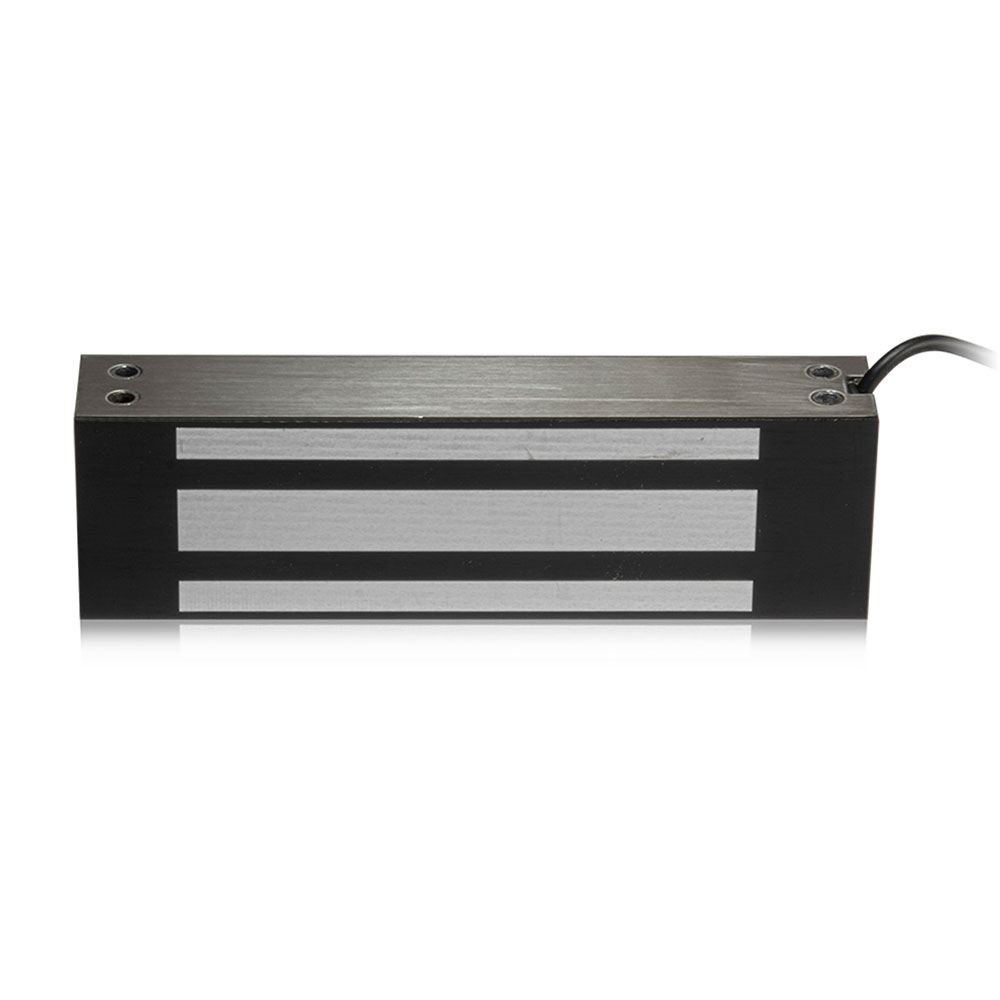

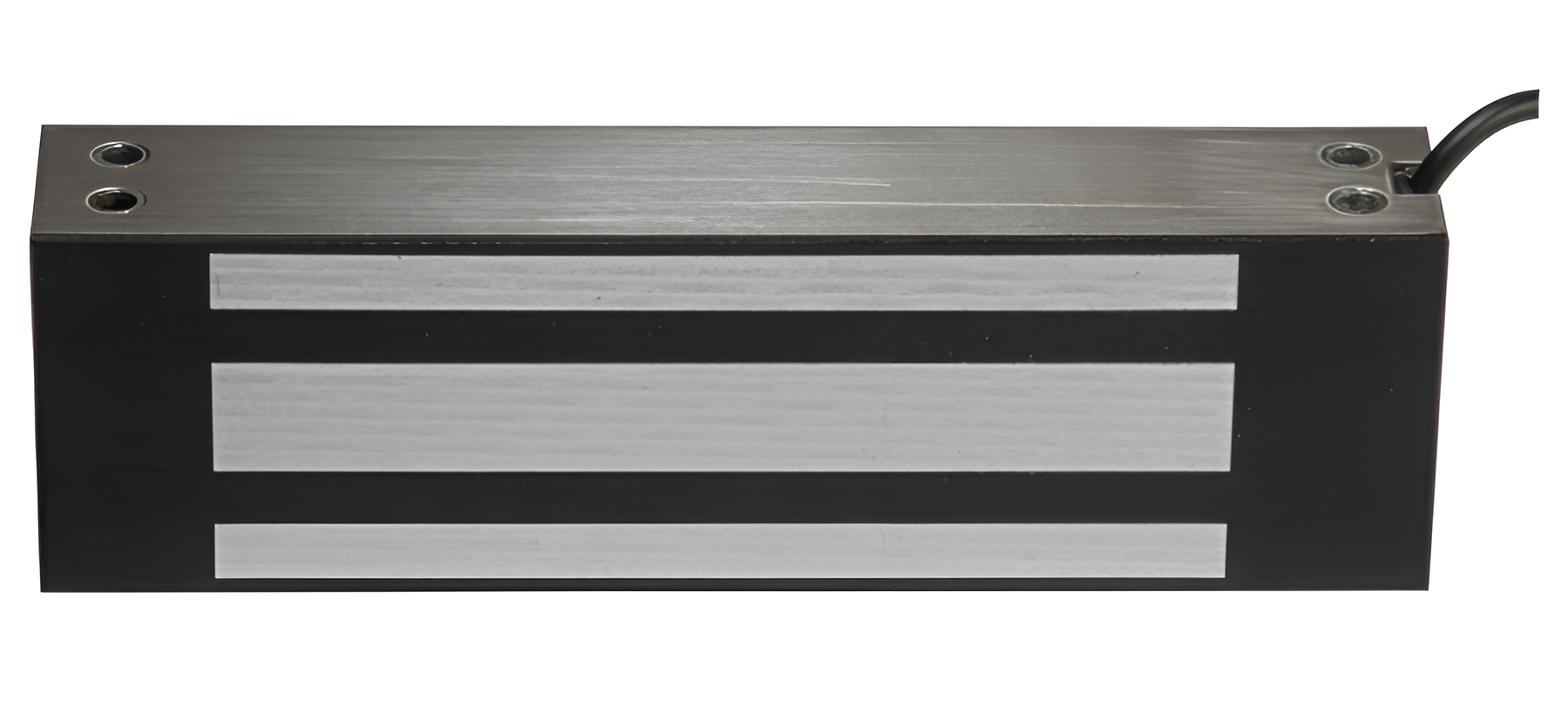

BEA 10GL1200SR Maglock
Images may not represent actual product and finish

BEA 10GL1200SR Maglock

Your Price: $215.40
Retail Price:$355.58
Your Savings:$140.18(39%)
Electromagnetic Lock, 1200 lbs, Weather Resistant, without 3/4 In. Conduit Fitting
Part Number : BEA_10GL1200SR
Availability: 5 In Stock
BEA 10GL1200SR Maglock

BEA's UL Listed Gatelocks are designed to withstand the elements, featuring a stainless steel exterior and NEMA 4 enclosure to protect internal electronics. It's weatherresistant construction makes it ideal for industrial gate and exterior door applications.
  • UL and ULC Listed for use on fire rated doors for up to 1-1/2 hours
  • Ensures compliance with all applicable compliant standards including ANSI A156.10
  • Versatile security solution for all gate applications
  • Available in front or side mount with a 1,200 lb holding force
  • Front mount model comes with a 3/4 inch male universal threaded conduit fitting
  • Built-in remote lock status sensor with an output relay
  • Built-in surge protection valuable in outdoor environments
  • NEMA 4 enclosure
  • Weather-resistant, stainless steel housing
  • Input voltage of 12/24 VDC

Attributes

Manufacturer surcharge: $ 9.75

Access Type: Maglock

Accessible: Yes

Ada Compliance: Yes

Alternate Codes: 10GL1200SR

Amp Draw: .50A @ 12VDC, .25A @ 24VDC

Ansi: 156.1

Baa Qualified: No

Base Material: Stainless Steel

Burglar Rated: No

Category: Access Control, Gate Maglocks, Maglocks, Single Maglocks

Commercial Residential: Commercial

Finish: Stainless Steel

Finish Color: Stainless Steel

Finish Description: Satin Aluminum Clear Anodized

Fire Rated: No

Fire Rating: No

Function: Electrically Locked (Fail Safe)

Grade: Grade 1

Holding Force: 1200 lbs

Installation: Commercial

Limited Warranty: Lifetime

Maglock Type: Gate Lock

Magnet Size: 8.75" x 2.50" x 1.625"

Mounting: Side Mount

Operating Voltage: 12VDC/24VDC

Options: Bond Sensor, Time Delay, Weather Resistant

Pack Qty: 1

Restrictions: No

Series: BEA Magnetic Locks

Size: 8.75" × 2.5" × 1.625" inch

Subtype: Maglock

Switch Type: LSS

Type: ACCESS CONTROL

Unit of Measure: Each
